Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-68

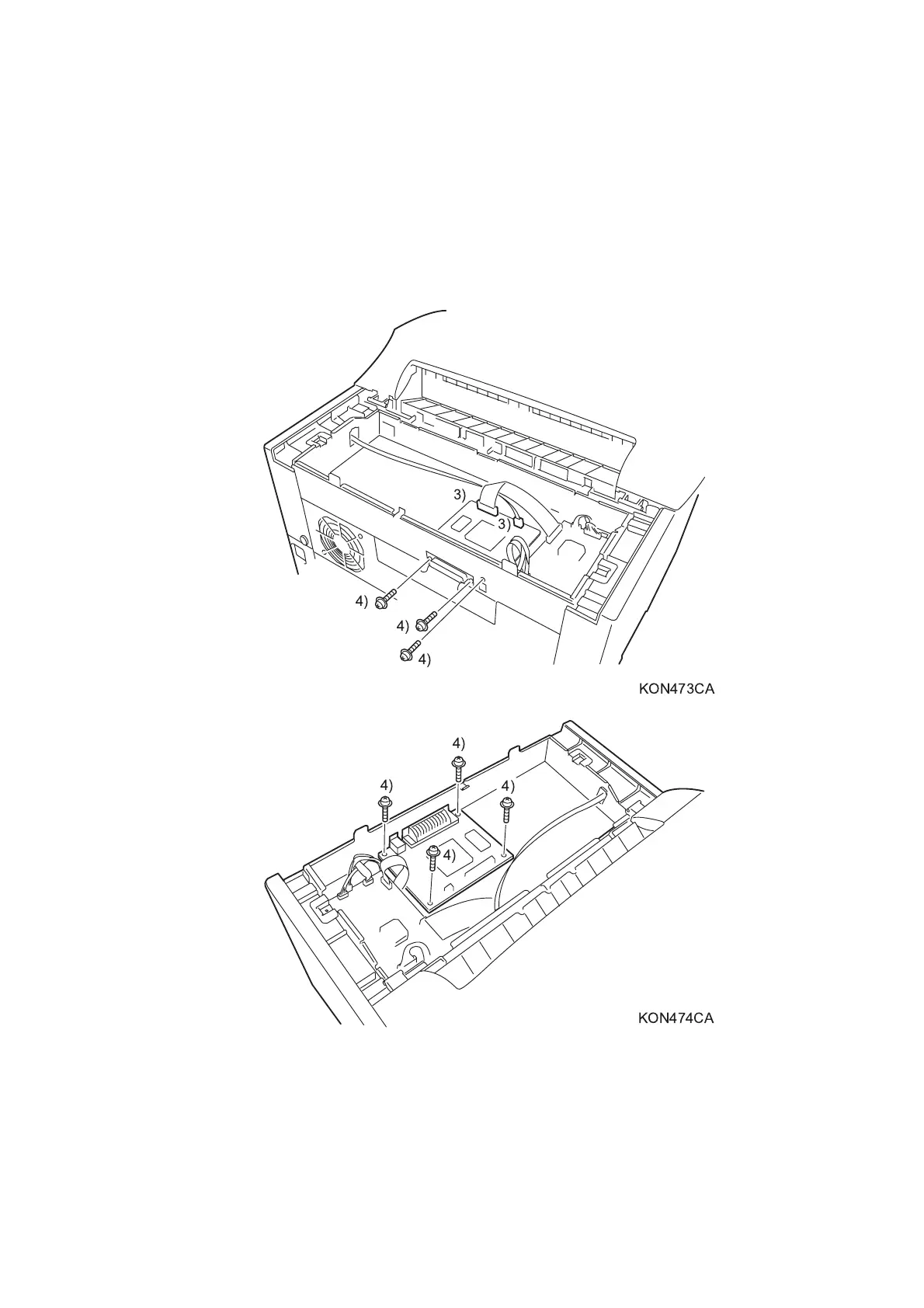

REP9.3 ESS PWB (PL9.1.21) (Reference)
<Removal>
1) Remove the COVER ASSY STACK CL. (REP1.7)
2) Remove the COVER ASSY PWB. (REP9.5)
3) Disconnect the two ESS PWB connectors.
4) Remove the seven screws (4 pcs-board: gold, with washer, 8mm/3 pcs-parallel connector: silver,
8mm) securing the ESS PWB and remove the ESS PWB.
<Replacement>
Perform the removal procedures in the reverse order.
3)
4)
4)
4)
KON473CA
3)
4)
4)
4)
4)
KON474CA
