Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-75
REP9.9 BASE CHASSIS ASSY (PL9.1.1)
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
2) Remove the COVER ASSY STACK CL. (REP1.7)
3) Remove the COVER ASSY PWB. (REP9.5)
4) Remove the COVER ASSY TOP CL. (REP1.4)
5) Remove the COVER SIDE LEFT CL. (REP1.1)
6) Remove the COVER ASSY RIGHT CL. (REP1.2)
7) Remove the COVER MIDDLE CL. (REP1.3)
8) Remove the GEAR ASSY. (REP7.1)
9) Remove the CHASSIS ASSY CONTROLLER. (REP9.2)
10) Remove the ROS ASSY. (REP10.1)
11) Remove the FRAME ASSY MAIN. (REP9.8)
12) Remove LVPS 230. (REP9.6)
13) Remove AZUSA HVPS. (REP9.7)

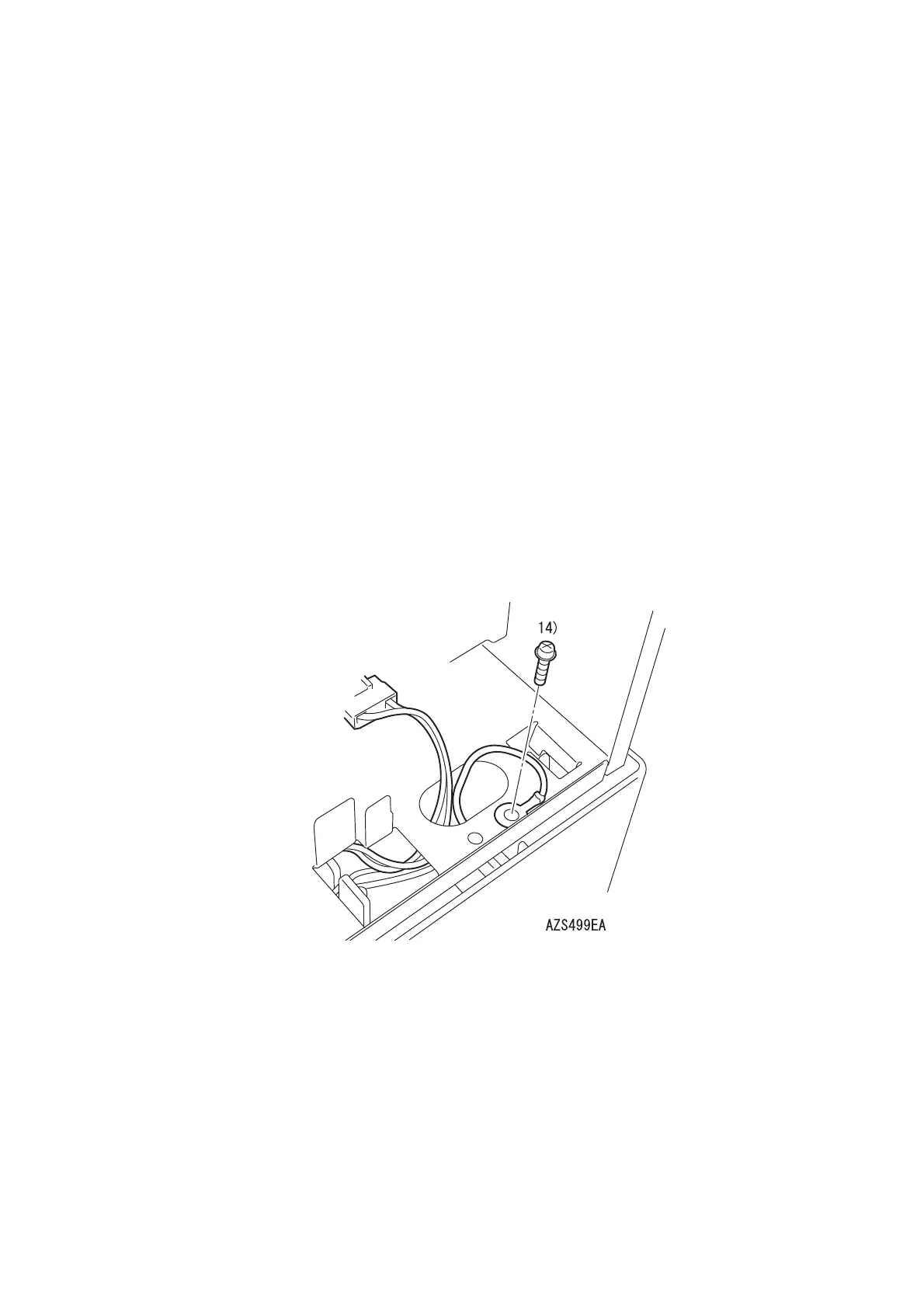

14) Remove the screw (gold, with washer, 8mm) at the rear right of the CHASSIS BASE and discon-
nect the FG cable.
15) Remove the four screws (gold, with flange, tap, 12mm) securing the BASE CHASSIS ASSY and
remove the GUIDE ASSY CST and the BASE CHASSIS ASSY.
To Next Page
