Chapter 2 Troubleshooting
2.4 How to use PC Diag.
2-53

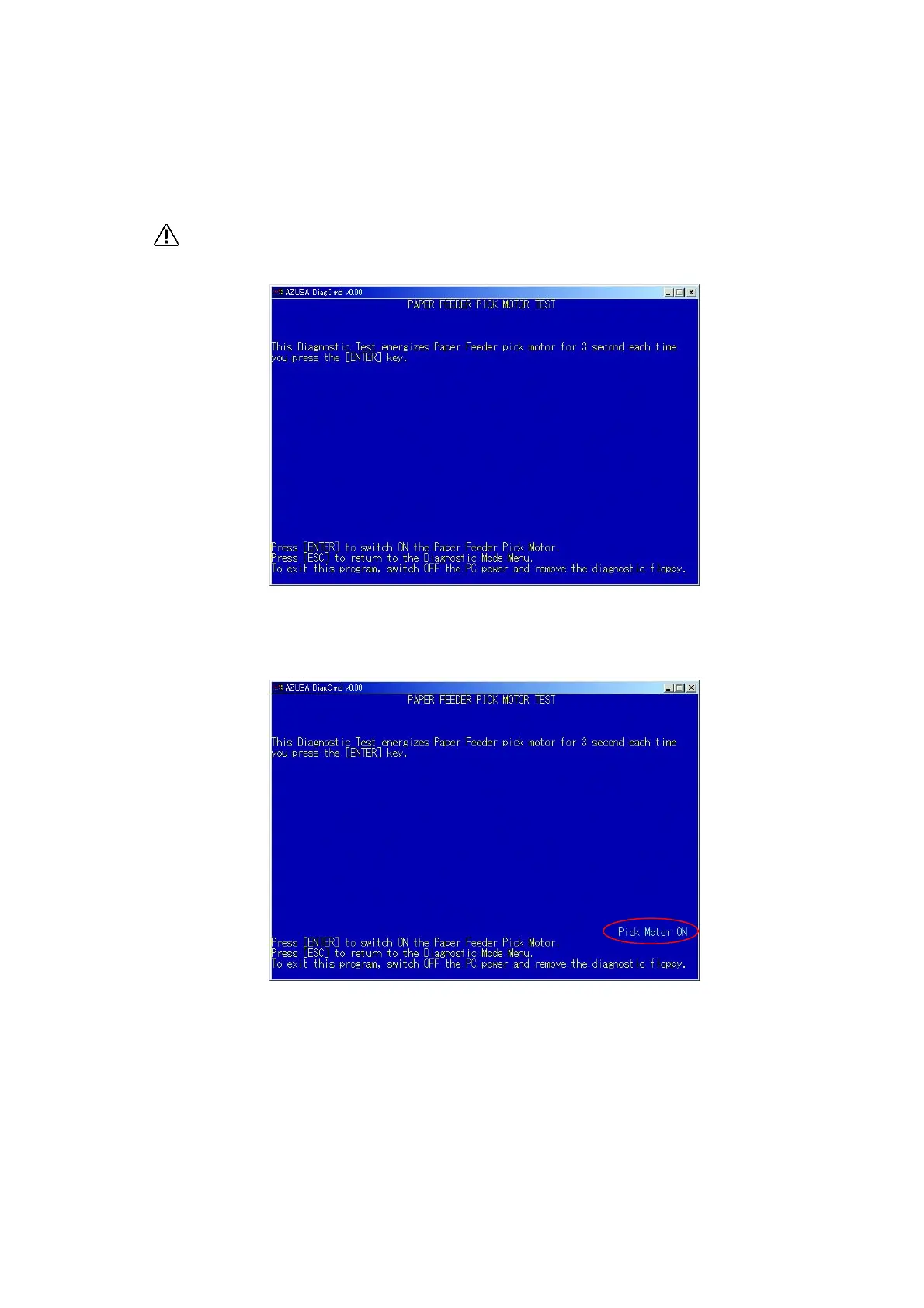

2.4.1.9.9 PAPER FEEDER PICK TEST (Diagnostic Code 0F)
This function checks Pick Motor operation for PAPER FEEDER.
Use the up arrow, down arrow, left arrow, and right arrow keys to select [Paper Feeder Pick Test]
and press the [Enter] key; the Motor operation runs for a predetermined time.
CAUTION
When the Pick Motor runs, the roller also rotates. Take care that fingers
are not caught.
The state of operation is displayed on the lower right of screen.
Press the [Esc] key, return to the DIAGNOSTIC MODE MENU.
