Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-35
REP4.6 BLOCK (PL4.1.15)/SPRING BLOCK (PL4.1.16) [Backup piece kit]
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
2) Remove the COVER ASSY STACK CL. (REP1.7)
3) Remove the COVER ASSY PWB. (REP9.5)
4) Remove the COVER ASSY TOP CL. (REP1.4)
5) Remove the COVER SIDE LEFT CL. (REP1.1)
6) Remove the COVER ASSY RIGHT CL. (REP1.2)
7) Remove the COVER MIDDLE CL. (REP1.3)
8) Remove the FRAME BASE RTD TRAY HN. (Refer to REP 3.5)
9) Remove the FUSER ASSY CL CH. (REP7.3)
10) Remove the GEAR ASSY. (REP7.1)
11) Remove the REGISTRATION ASSY. (REP4.2)

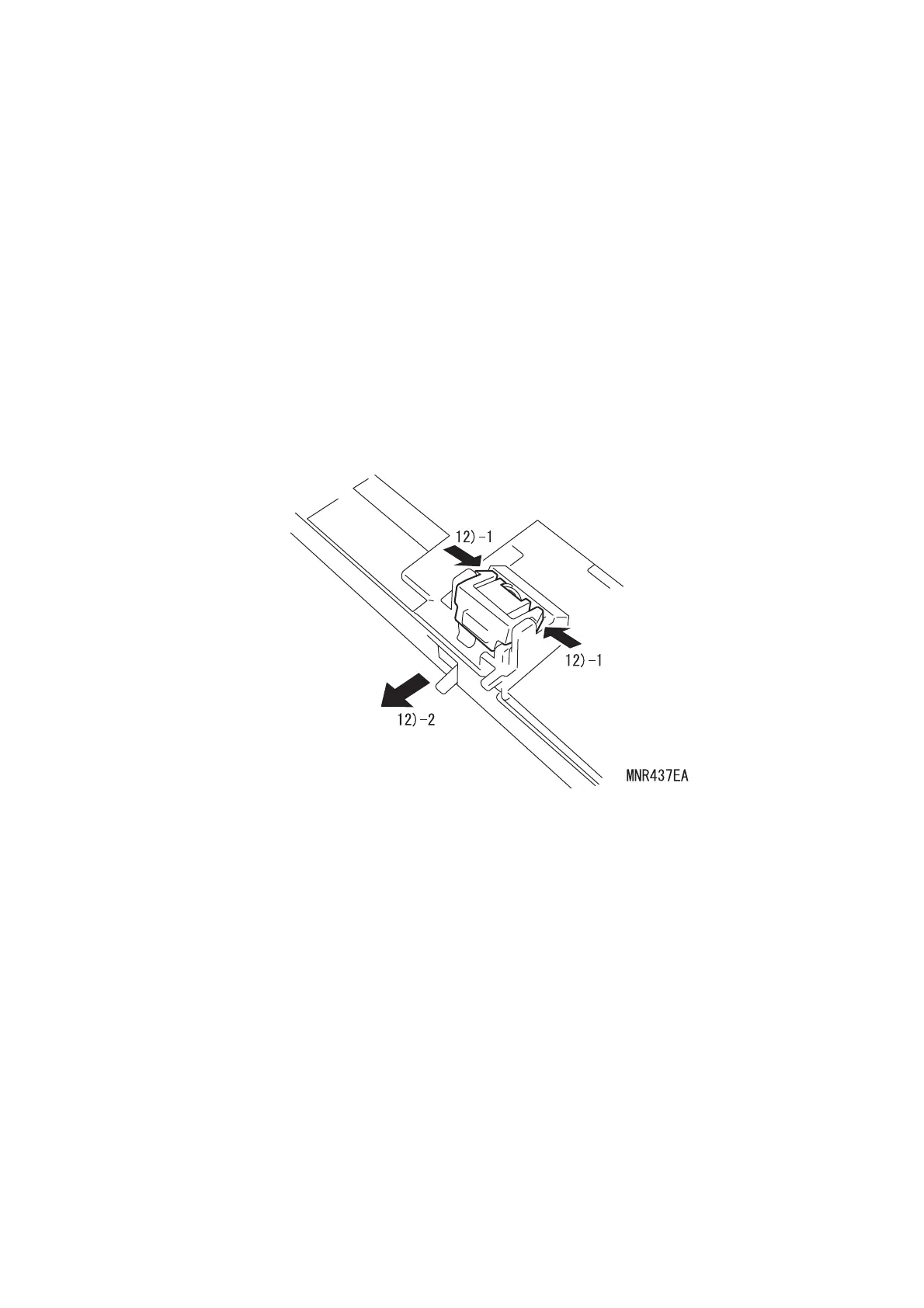

12) Release two hooks of the BLOCK and remove the BLOCK forward with the SPRING BLOCK.
<Replacement>
Perform the removal procedures in the reverse order.
