Fuji Xerox DocuPrint 2050 Service Manual

Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-34
<Replacement>
Perform the removal procedures in the reverse order.
NOTE

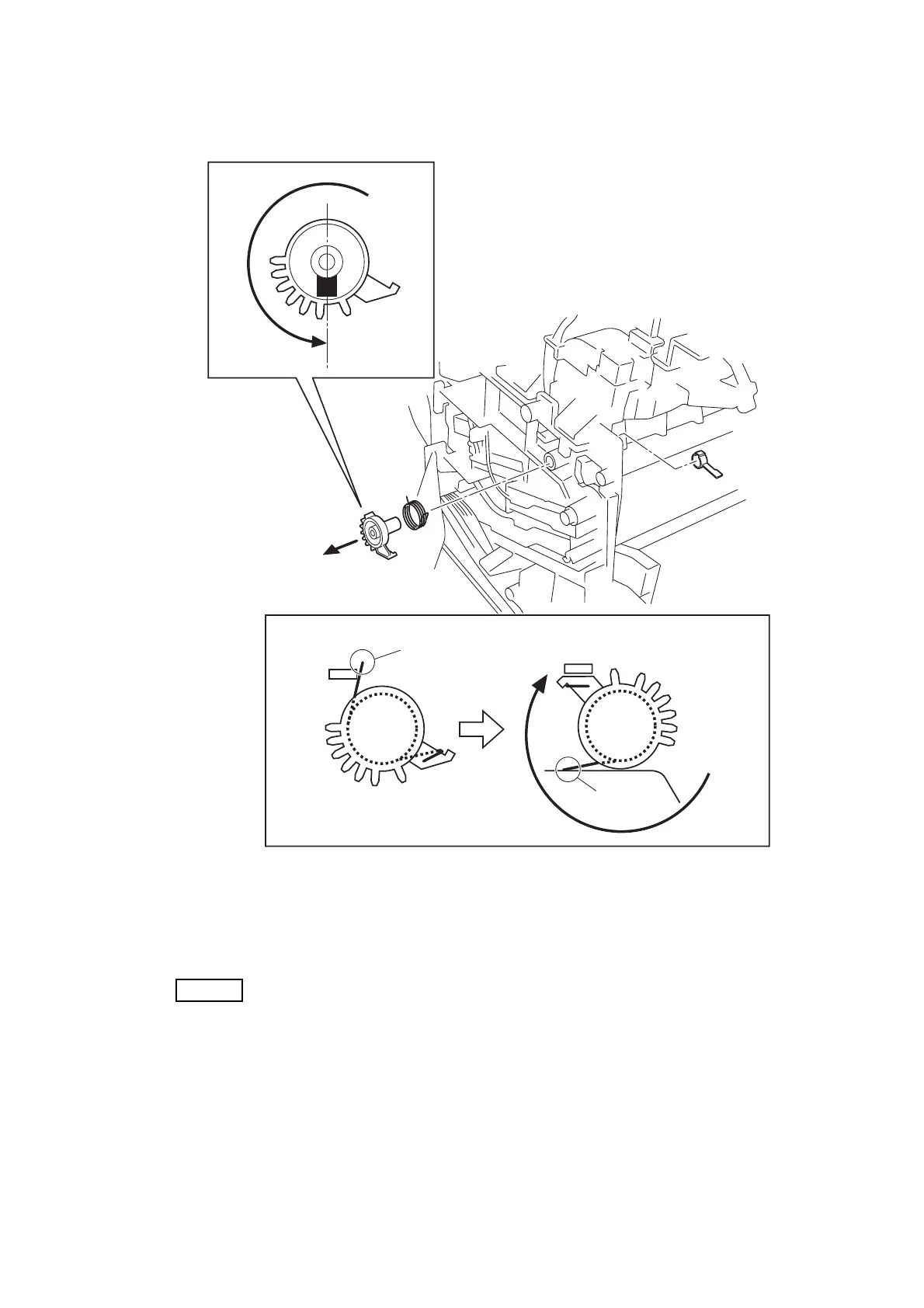

Rotate the ARM SHUTTER B with the SPRING ARM SHUTTER to clockwise
direction as shown in figure, attach the Section A of the ARM SHUTTER to the rib of
FRAME MAIN properly.
8)-1
8)-2
9)
MNR436CA
Section A
Section A
