Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-12
REP2. Paper Cassette
REP2.1 PAD ASSY RETARD 250 (PL2.1.7)
<Removal>
1) Remove the CASSETTE ASSY 250 CL from the printer.
CAUTION
Be careful not to lose the SPRING RETARD 250 in the procedure below.
NOTE
A straight-head screwdriver is recommended for the procedure below.

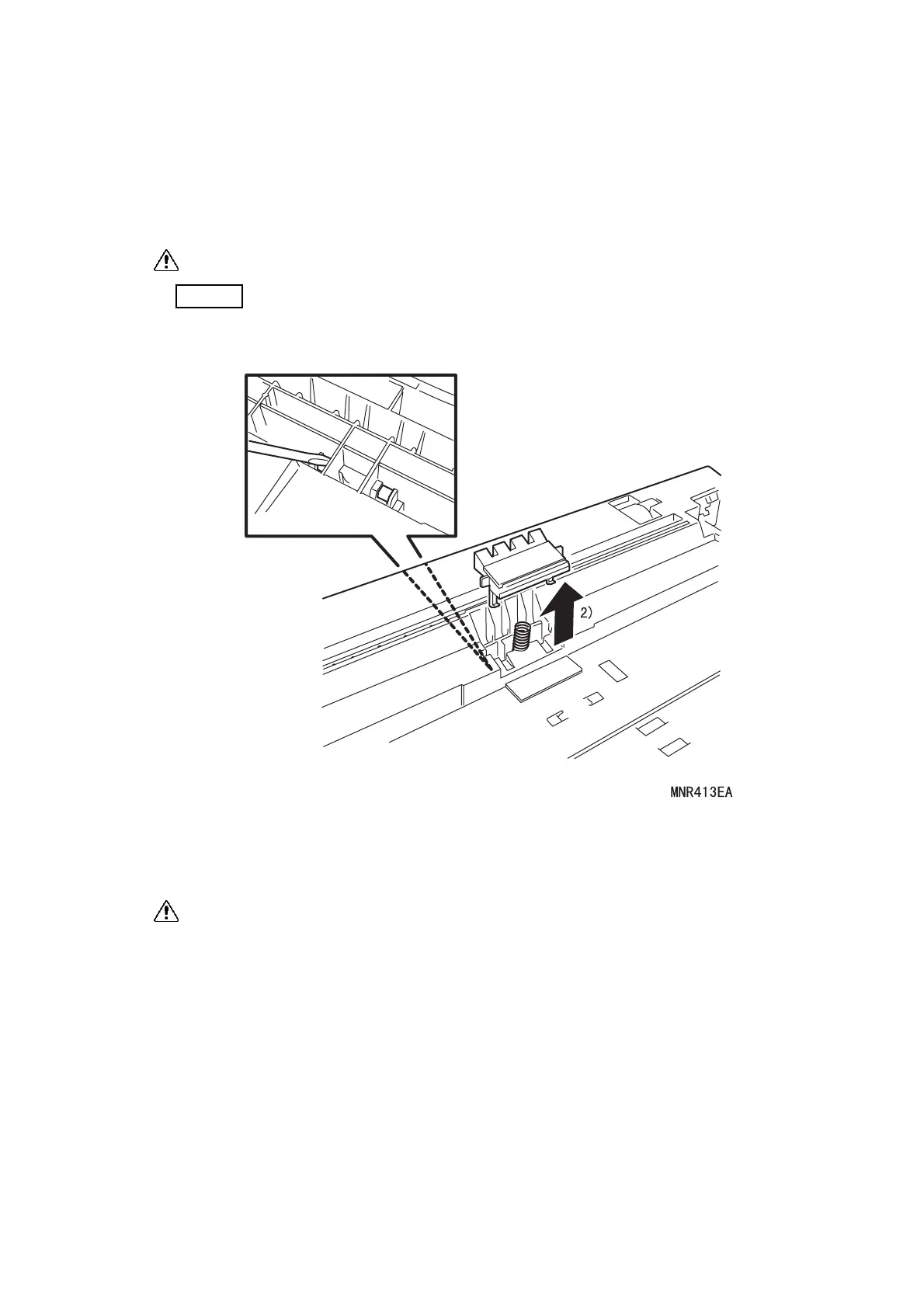

2) Release the two hooks securing the PAD ASSY RETARD 250 and remove the PAD ASSY
RETARD 250 upward.
<Replacement>
Perform the removal procedures in the reverse order.
CAUTION
When attaching the PAD ASSY RETARD 250, be careful not to touch the
rubber part.
