Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-47
REP5.10 (SCC) SENSOR PHOTO (PL5.1.32)
<Removal>
1) Pull the LEVER FRONT R (PL8.1.11) and LEVER FRONT L (PL8.1.12) concurrently toward you,
open the COVER ASSY FRONT.
2) Remove the COVER ASSY STACK CL. (REP1.7)
3) Remove the COVER ASSY PWB. (REP9.5)
4) Remove the COVER ASSY TOP CL. (REP1.4)
5) Remove the COVER SIDE LEFT CL. (REP1.1)
6) Remove the COVER ASSY RIGHT CL. (REP1.2)
7) Remove the COVER MIDDLE CL. (REP1.3)
8) Remove the GEAR ASSY. (REP7.1)
9) Remove the CHASSIS ASSY CONTROLLER. (REP9.2)
10) Remove the ROS ASSY. (REP10.1)
11) Remove the FRAME ASSY MAIN. (REP9.8)
12) Remove the BASE CHASSIS ASSY with the LVPS 230 and AZUSA HVPS. (REP9.9)
13) Remove the GUIDE ASSY FRONT. (REP5.2)
14) Remove the FEEDER ASSY. (REP5.3)
15) Remove the GEAR ASSY CST. (REP5.7)

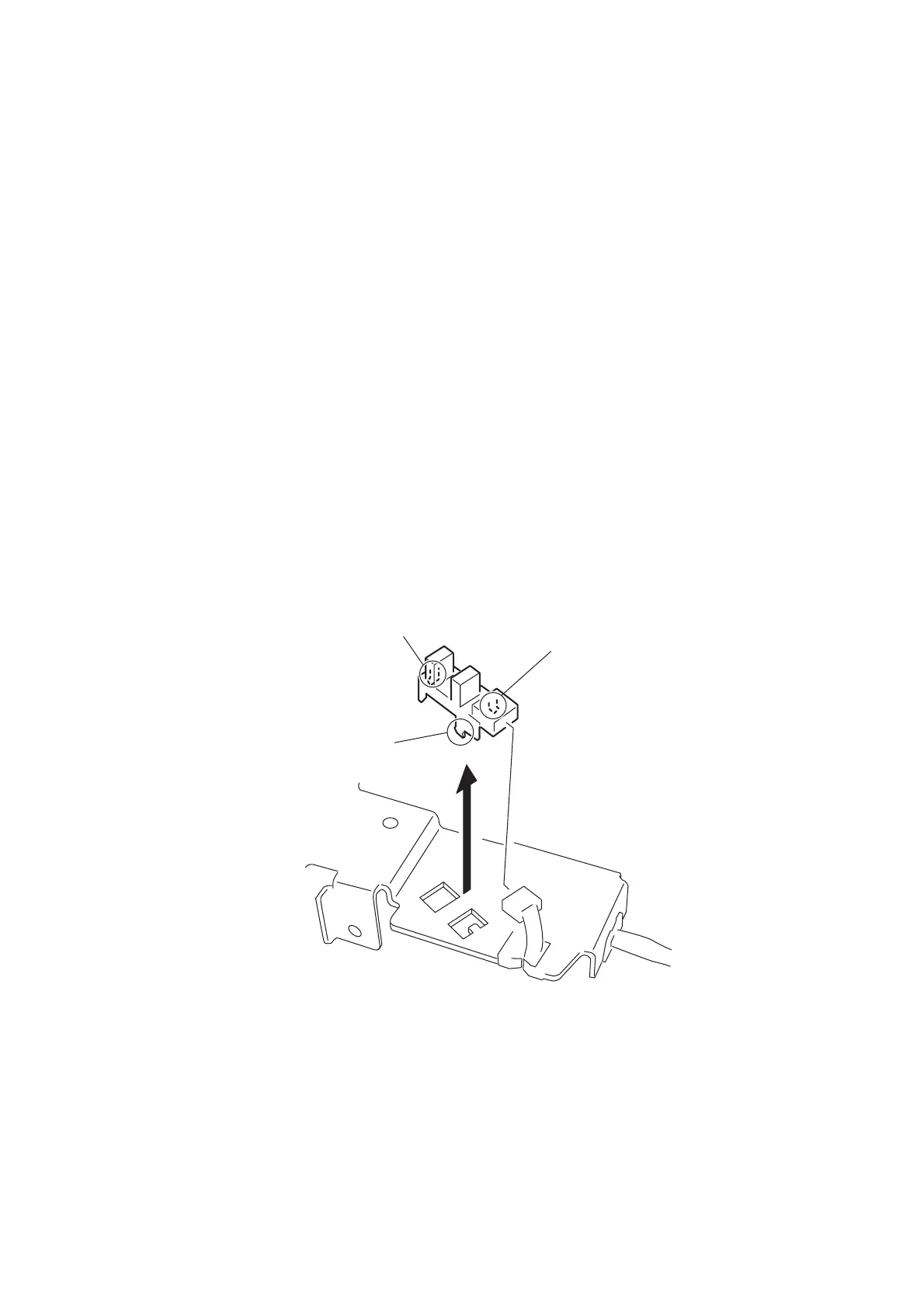

16) Remove the harness from the connector (P/J1001) of SENSOR PHOTO, release the three hooks
and remove the SENSOR PHOTO.
<Replacement>
Perform the removal procedures in the reverse order.
Hook
Hook
Hook
AZS455CA
16)-1
16)-2
To Next Page
