Chapter 2 Troubleshooting
2.4 How to use PC Diag.
2-52
2.4.1.9.8 MAIN MOTOR TEST (Diagnostic Codes 0C)
This function runs the main motor.
Use the up arrow, down arrow, left arrow, and right arrow keys to select [Main Motor Test] and
press the [Enter] key; the main motor runs for a predetermined time.
CAUTION
When the main motor runs, the roller also rotates. Take care that fingers
are not caught.

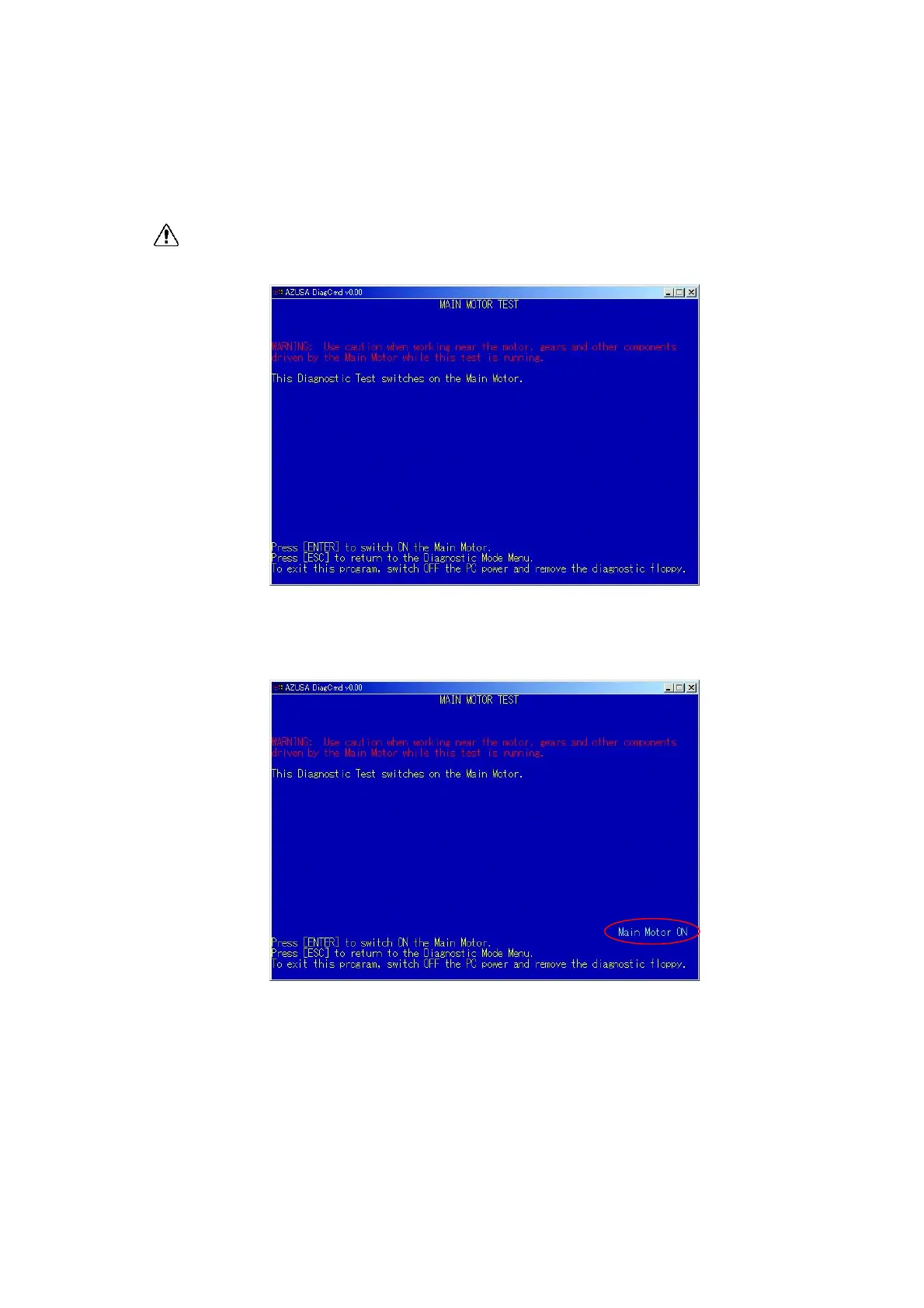

The state of operation is displayed on the lower right of screen.
Press the [Esc] key, return to the DIAGNOSTIC MODE MENU.
