5.2 Parts List
5 - 3 Chapter 5 Parts List

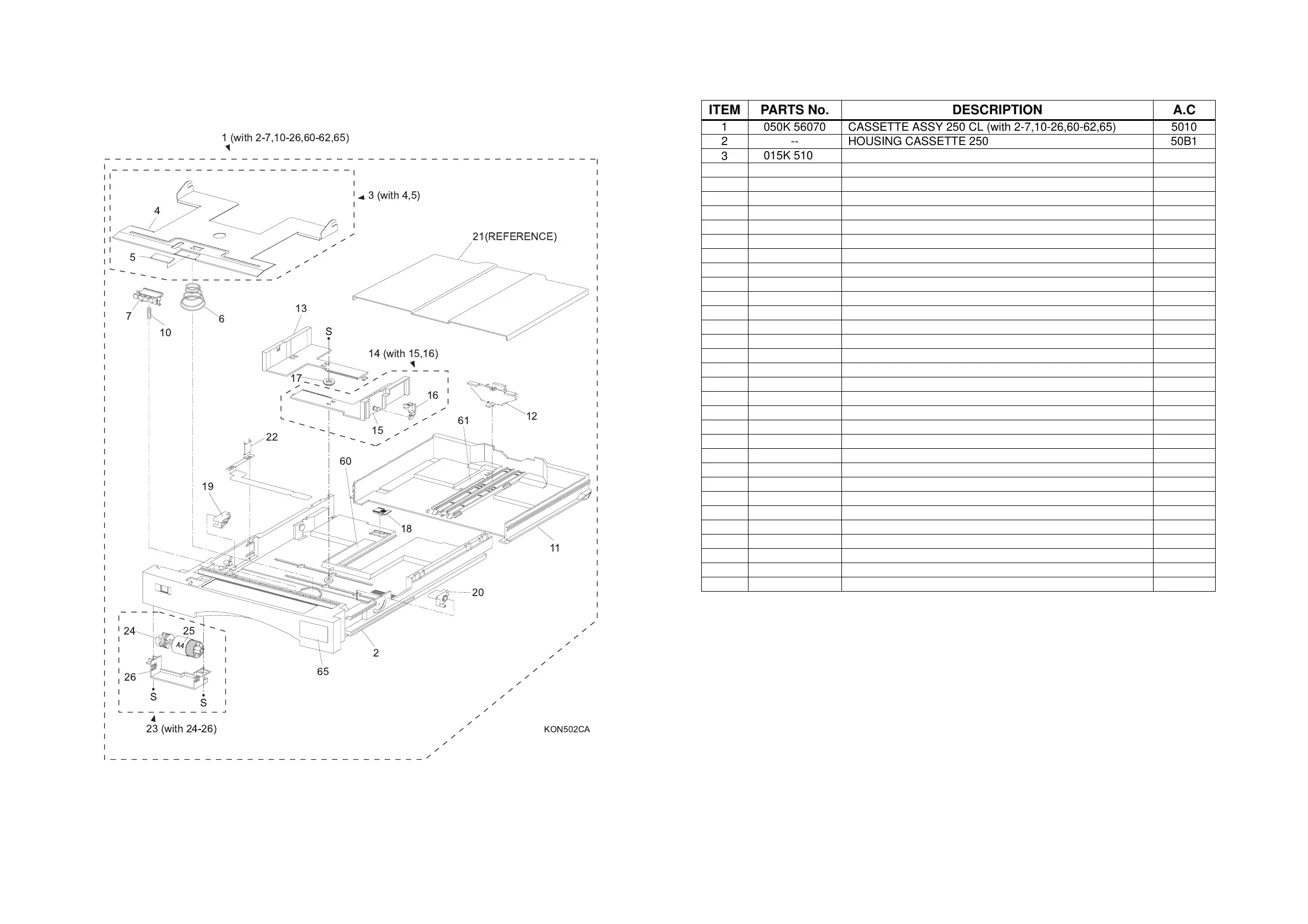

PL2.1 Paper Cassette
*: Periodical replacement part (after 100,000 prints)
ITEM PARTS No. DESCRIPTION A.C
1
050K 56070 CASSETTE ASSY 250 CL (with 2-7,10-26,60-62,65) 5010
2
-- HOUSING CASSETTE 250 50B1
3
015K 51000 PLATE ASSY BOTTOM 250 (with 4,5) 50B2
4
-- PLATE BOTTOM 250 50B3
5
-- PAD 250 50B4
6
809E 66830 SPRING LIFT 250 50B5
7
019K 97590 PAD ASSY RETARD 250 * 50B6
8
-- -- 50B7
9
-- -- 50B8
10
809E 33180 SPRING RETARD 250 50B9
11
050E 94210 CASSETTE SLIDE CL 50BA
12
038E 33390 GUIDE END 250 CL 50BB
13
038E 33400 GUIDE SIDE L 250 CL 50BC
14
038K 89040 GUIDE ASSY SIDE R 250 CL (with 15,16) 50BD
15
038E 33410 GUIDE SIDE R 250 CL 50BE
16
038E 33420 LOCK SIDE GUIDE 250 CL 50BF
17
007E 70760 GEAR GUIDE SIDE 50BG
18
038E 33430 LOCK SIDE GUIDE 250 CL 50BH
19
003E 55860 LOCK BOTTOM L 250 50BJ
20
003E 55870 LOCK BOTTOM R 250 50BK
21
802E 92680 COVER CASSETTE CL (REFERENCE) 50BL
22
115K 91350 PLATE GND CASSETTE 50BM
23
020K 13990 WHEEL ASSY SIZE 250 CL (with 24-26) 50BN
24
-- WHEEL SIZE 50BP
25
-- LABEL SIZE WHEEL 250 50BQ
26
-- GUIDE SIZE WHEEL 50BR
27-59
-- -- 50BS
60
-- LABEL PAPER SIZE 250 50BT
61
-- LABEL PAPER SIZE MP 50BV
62
893E 85160 LABEL SLD CASSETTE 250 50BW
63
-- -- 50BX
64
-- -- 50BY
65
-- LABEL PULL OUT 50C1
