Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-26

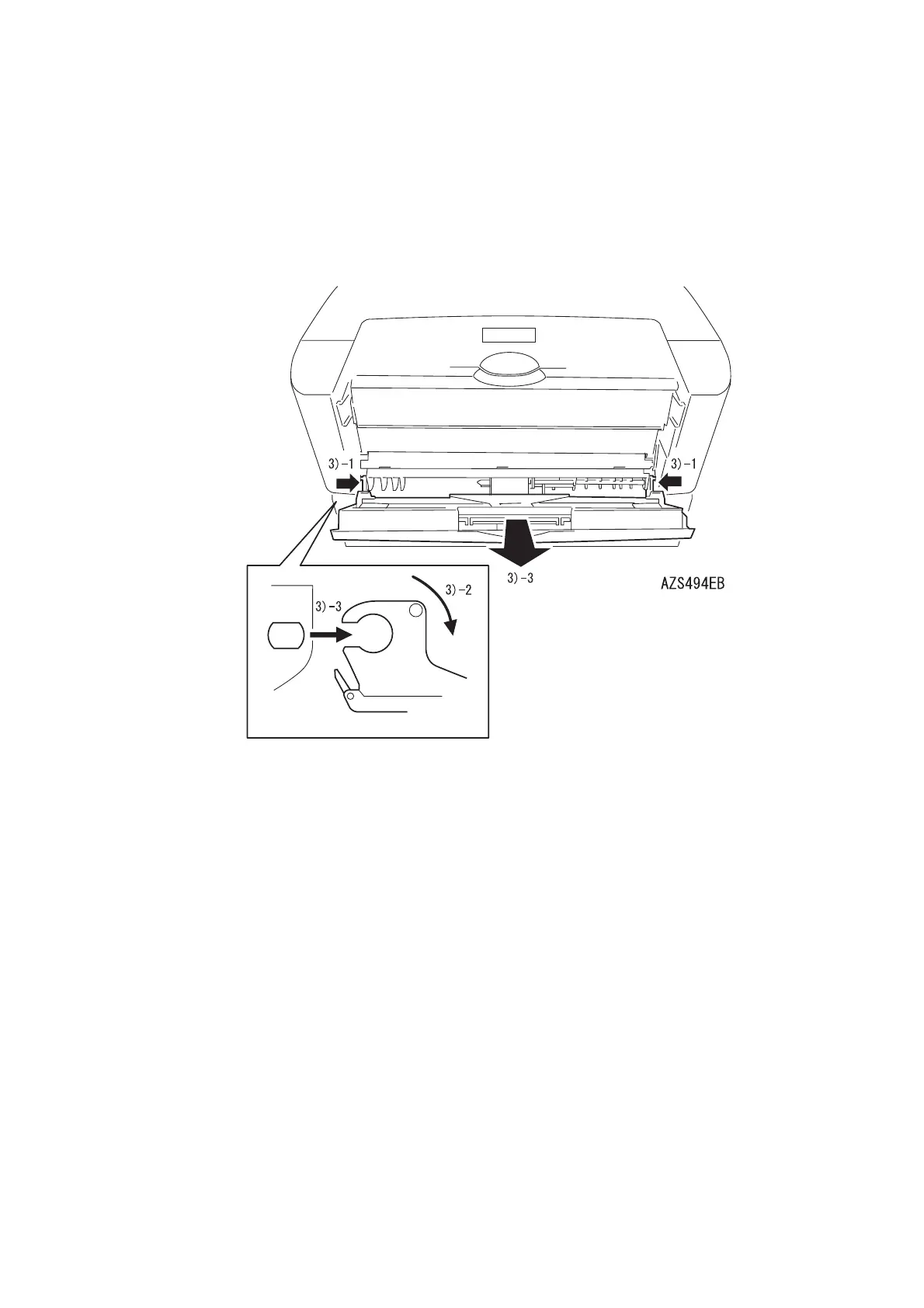

REP3.8 TRAY ASSY FRONT CL (PL3.2.1)
<Removal>
1) Remove the FRAME BASE RTD TRAY HN. (Refer to REP 3.5)
2) Open the TRAY ASSY FRONT CL (PL3.2.1).
3) Release the left and right convex of the TRAY ASSY FRONT CL from the hole of the FRAME
DUPLEX (PL3.1.2) and remove it.
<Replacement>
Perform the removal procedures in the reverse order.
