5 - 4 Chapter 5 Parts List
5.2 Parts List

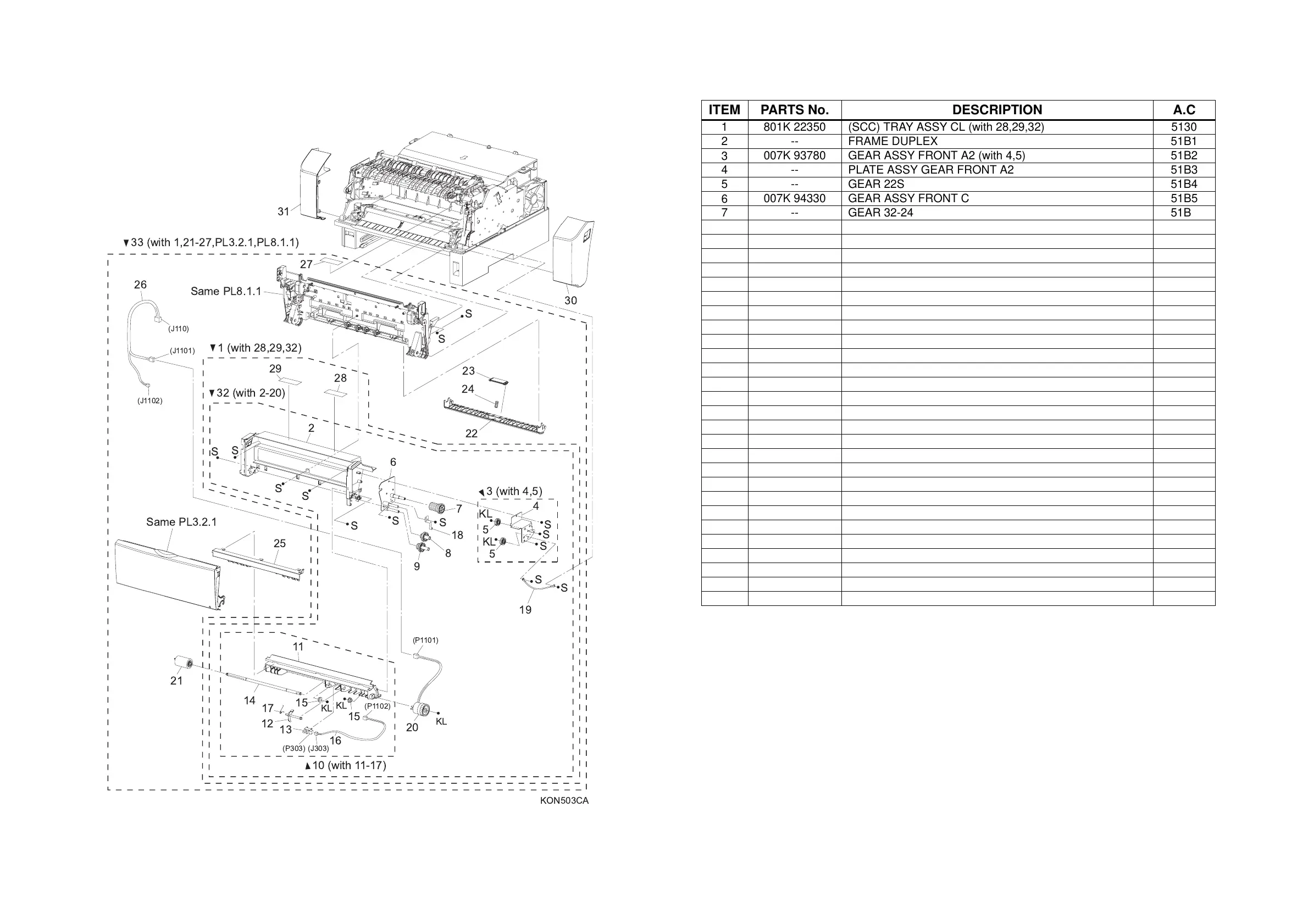

PL3.1 MSI Assy (1/2)
*: Periodical replacement part (after 100,000 prints)
ITEM PARTS No. DESCRIPTION A.C
1
801K 22350 (SCC) TRAY ASSY CL (with 28,29,32) 5130
2
-- FRAME DUPLEX 51B1
3
007K 93780 GEAR ASSY FRONT A2 (with 4,5) 51B2
4
-- PLATE ASSY GEAR FRONT A2 51B3
5
-- GEAR 22S 51B4
6
007K 94330 GEAR ASSY FRONT C 51B5
7
-- GEAR 32-24 51B6
8
-- GEAR 30-18 51B7
9
-- GEAR 40-18 51B8
10
801K 22420 FRAME ASSY ROLL FEED (TRAY) (with 11-17) 5132
11
001E 71540 FRAME ROLL FEED (TRAY) 51B9
12
120E 26830 ACTUATOR PE SENSOR 51BB
13
130E 89320 (SCC) SENSOR PHOTO 51BC
14
-- SHAFT ROLL FEED (TRAY) 51BD
15
-- BEARING ROLL FEED (TRAY) 51BE
16
962K 36980 HARNESS ASSY TRAY SNS (P1102-J303) 51BF
17
809E 63980 SPRING PE ACTUATOR 51BG
18
-- EARTH PLATE MSI G 51BH
19
-- FG CABLE 51BJ
20
121K 36300 (SCC) CLUTCH ROLL FEED (TRAY) (P1101) 51BK
21
059K 42660 ROLL FEED ASSY TRAY * 51BL
22
801K 22410 FRAME BASE RTD TRAY HN 51BM
23
019K 07940 PAD ASSY RETARD TRAY * 51BN
24
809E 63990 SPRING RETARD TRAY(300G) 51BP
25
038K 89030 GUIDE ASSY PAPER TRAY 51BQ
26
962K 37780 (SCC) HARNESS ASSY MSI (J110 - J1101, J1102) 51BR
27
-- LABEL UNIT BLANK 51BS
28
-- LABEL CAUTION HOT F 51BT
29
893E 85140 LABEL CAUTION DUP 51BV
30
802E 92620 (SCC) COVER FRONT RIGHT 51BW
31
802E 92630 (SCC) COVER FRONT LEFT 51BX
32
801K 22360 (SCC) TRAY ASSY SUB CL (with 2-20) 51BY
33
801K 22330 FRONT ASSY CL (with 1,21-27,PL3.2.1,PL8.1.1) 51C1
34
-- -- 51C2
