Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-44
REP5.7 (SCC) GEAR ASSY CST (PL5.1.25)
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
2) Remove the COVER ASSY STACK CL. (REP1.7)
3) Remove the COVER ASSY PWB. (REP9.5)
4) Remove the COVER ASSY TOP CL. (REP1.4)
5) Remove the COVER SIDE LEFT CL. (REP1.1)
6) Remove the COVER ASSY RIGHT CL. (REP1.2)
7) Remove the COVER MIDDLE CL. (REP1.3)
8) Remove the GEAR ASSY. (REP7.1)
9) Remove the CHASSIS ASSY CONTROLLER. (REP9.2)
10) Remove the ROS ASSY. (REP10.1)
11) Remove the FRAME ASSY MAIN. (REP9.8)
12) Remove the BASE CHASSIS ASSY with the LVPS 230 and AZUSA HVPS. (REP9.9)
13) Remove the GUIDE ASSY FRONT. (REP5.2)
14) Remove the FEEDER ASSY. (REP5.3)

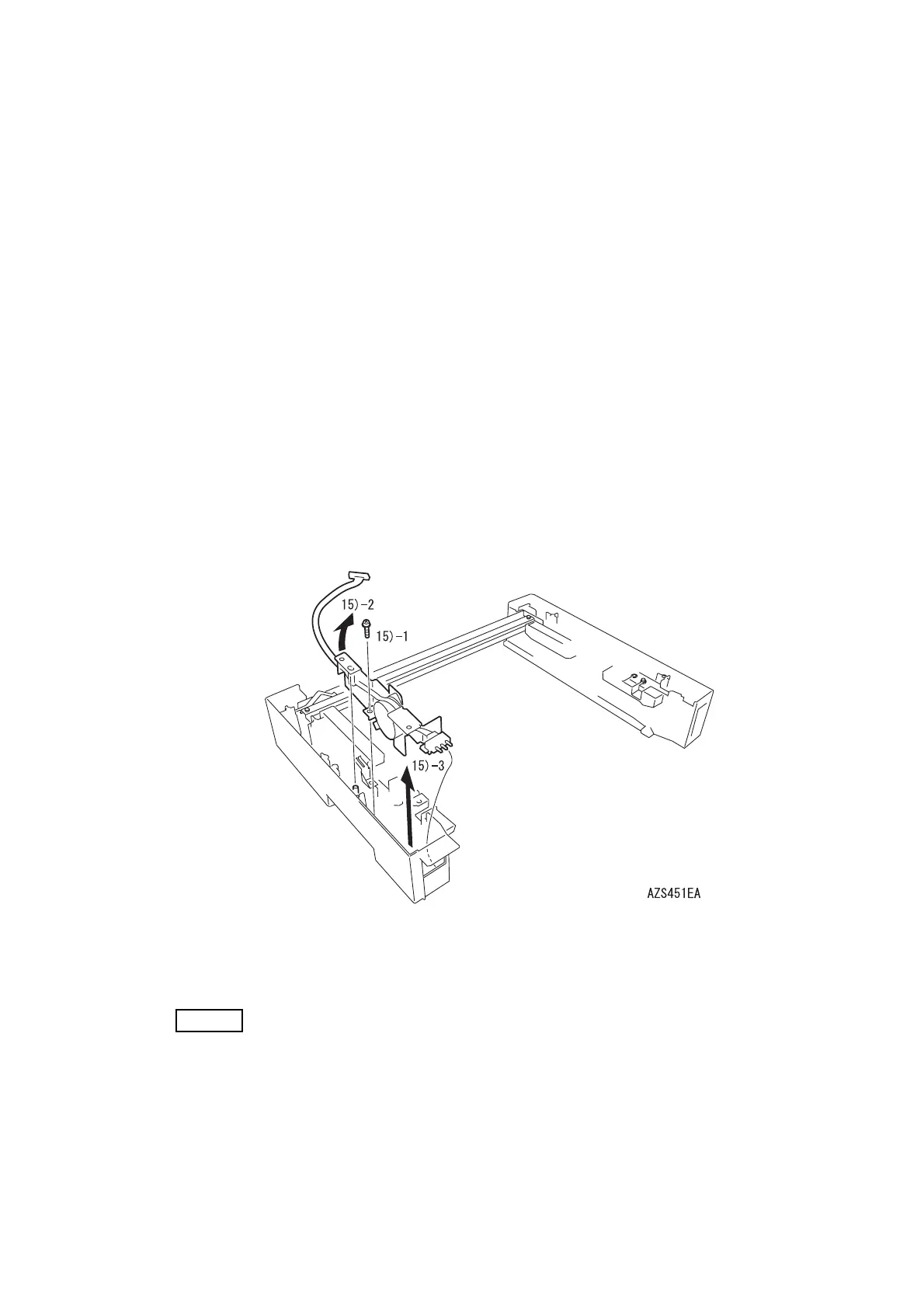

15) Remove a screw (gold, with flange, tap, 8mm) securing the GEAR ASSY CST and remove the
GEAR ASSY CST.
<Replacement>
Perform the removal procedures in the reverse order.
NOTE
Before attaching the GEAR ASSY CST, put the SWITCH P/SIZE (PL5.1.29)
through the hole of the frame.
To Next Page
