Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-8
REP1.4 (SCC) COVER ASSY TOP CL (PL1.1.8)
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
2) Remove the COVER ASSY STACK CL. (REP1.7)
3) Remove the COVER ASSY PWB. (REP9.5)

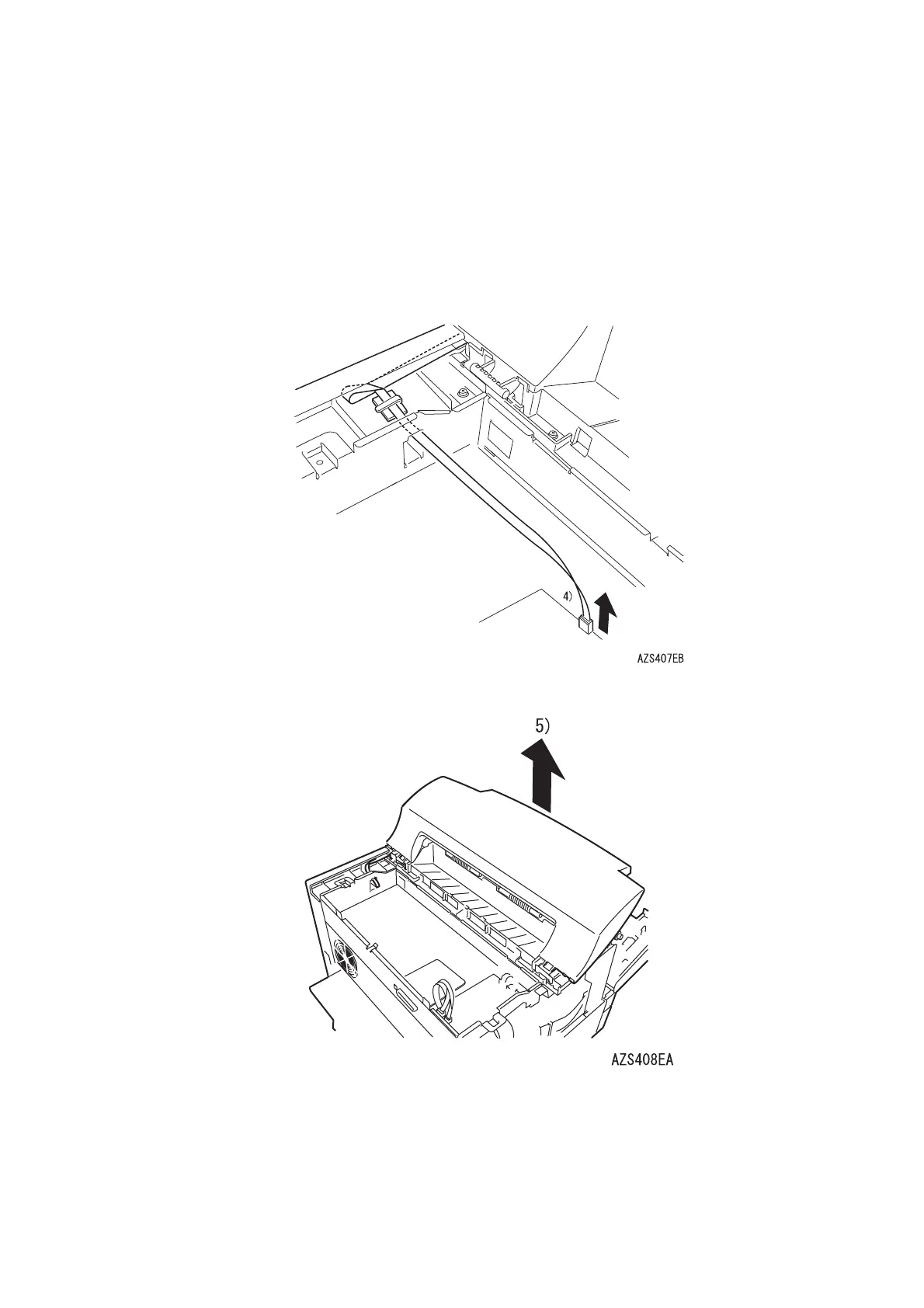

4) Disconnect the FFC OPP CL from CN1 on the ESS PWB. (CN1: Connector number depending on
OEM customer)
5) Release the FFC OPP CL from the clamp and remove the COVER ASSY TOP CL.
<Replacement>
Perform the removal procedures in the reverse order.
To Next Page
