Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-53
REP7.3 (SCC) FUSER ASSY CL CH (PL7.1.15)
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
2) Remove the COVER ASSY STACK CL. (REP1.7)
3) Remove the COVER ASSY PWB. (REP9.5)
4) Remove the COVER ASSY TOP CL. (REP1.4)
5) Remove the COVER SIDE LEFT CL. (REP1.1)
6) Remove the COVER MIDDLE CL. (REP1.3)

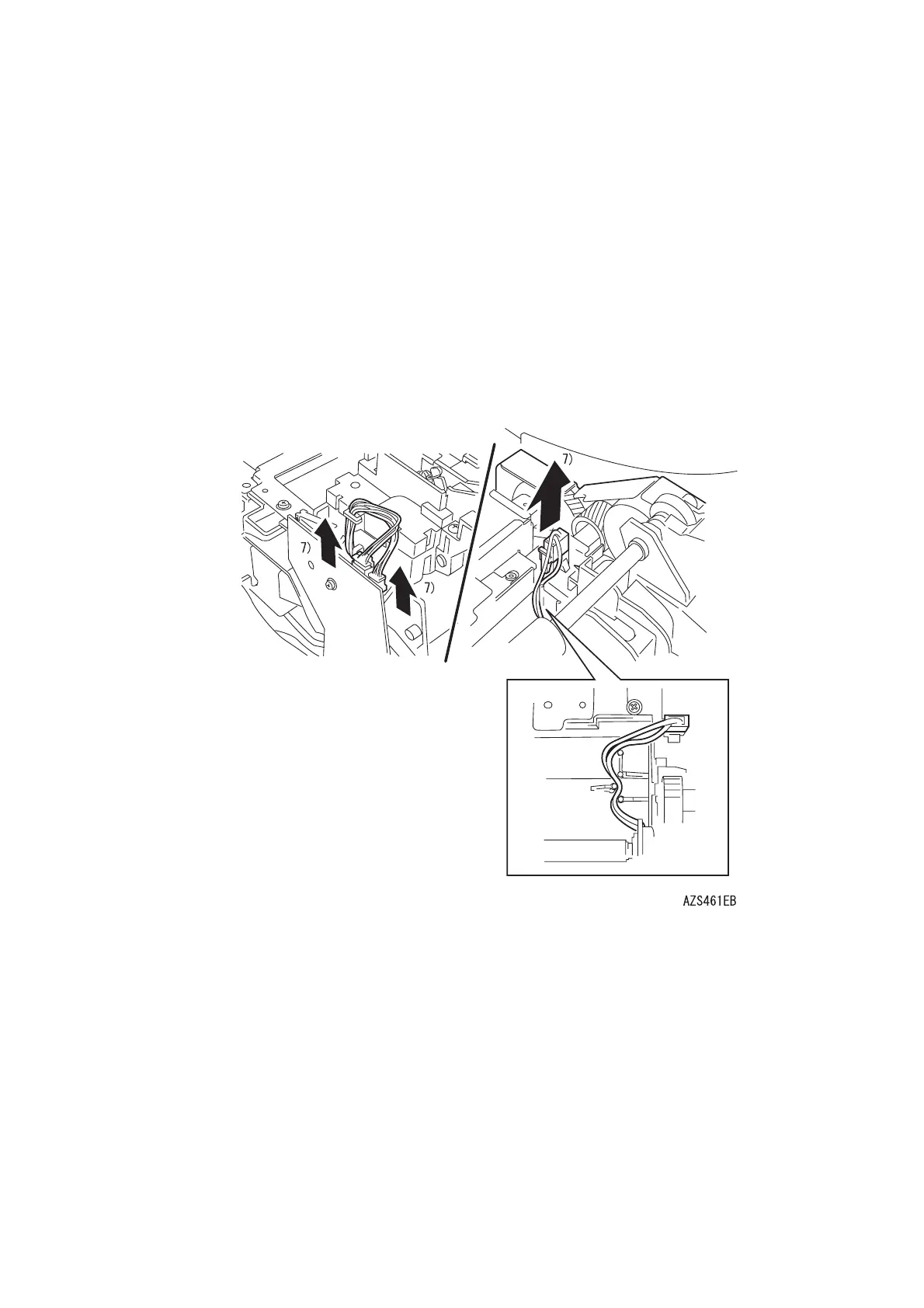

7) Remove the two PWBA SENSOR connectors (CN103, CN104) and the HARNESS ASSY FUSER
(PL9.1.7) connector.
8) Remove the four screws (2 pcs - right: gold, with washer, 12mm:2 pcs - left: gold, stud, 12mm)
securing the FUSER ASSY CL CH and remove the FUSER ASSY CL CH upward.
To Next Page
