Chapter 4 Disassembly/Assembly and Adjustment
4.1 Preface
4-4
4.1.2 Description of procedure
- "REP X.Y 'AAAAA'" at the beginning of a procedure means that the part name is "AAAAA".
- "(PL X.Y)" after a part name in a procedure means that the part corresponds to plate (PL) X and
item Y in Chapter 3, "Parts List" Check the shape and mounting position in Chapter 3.

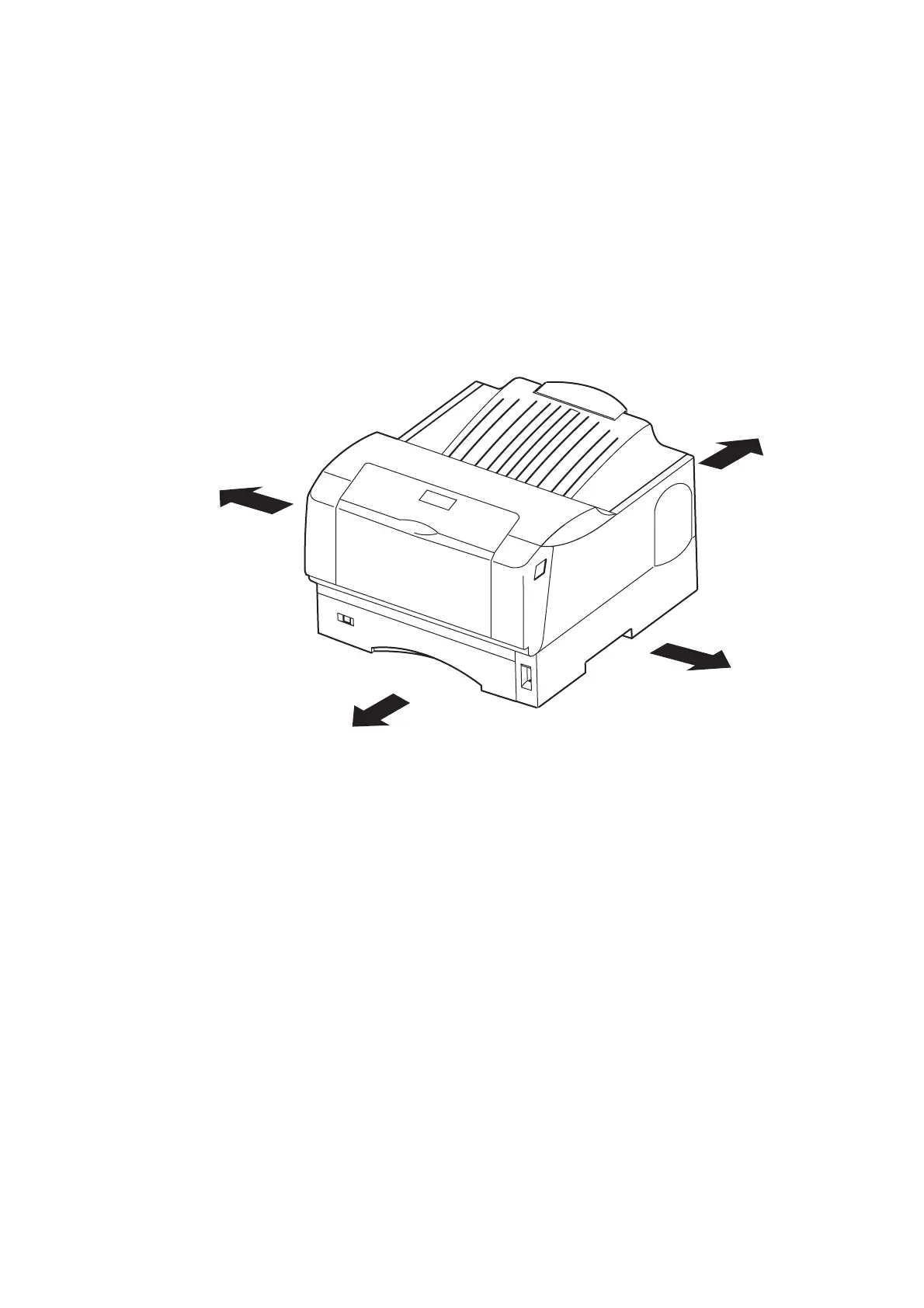

- In procedures, directions are expressed as follows:
Front : This side when viewed from the front of the equipment
Rear : Inside when viewed from the front of the equipment
Left : Left-hand side when viewed from the front of the equipment
Right : Right-hand side when viewed from the front of the equipment
- A procedure describes the mounting position, color, characteristics, and shank length of a screw.
- "(REP X.Y)" in the middle or at the end of a sentence in a procedure means that a work
procedure related to "Removal/Replacement X.Y" is given.
- "(Figure X.Y)" at the end of a sentence in a procedure means that a reference illustration for
"Removal/Replacement X.Y" is shown.
- "Z)" in an illustration corresponds to Step Z).
- For a screw in an illustration, a Phillips screwdriver is used unless stated otherwise.
- A black arrow in an illustration indicates a move direction.
The numbers given to black arrows indicate the move order.
- A white arrow (FRONT) in an illustration indicates the front of the printer.
- For a connector (P/J) location, see Chapter 7, " Connector [P(plug) / J(jack)] ".
AZS401CA
Left
Front
Right
Rear
To Next Page
