Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-5
4.2 Disassembly/Assembly
REP1. Cover
REP1.1 (SCC) COVER SIDE LEFT CL (PL1.1.1)
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
2) Remove the COVER ASSY STACK CL. (REP1.7)
CAUTION
Be careful not to damage the FFC OPP CL (PL1.1.21) in the procedure
below.
3) Remove the COVER ASSY TOP CL with the FFC OPP CL. (REP1.4)

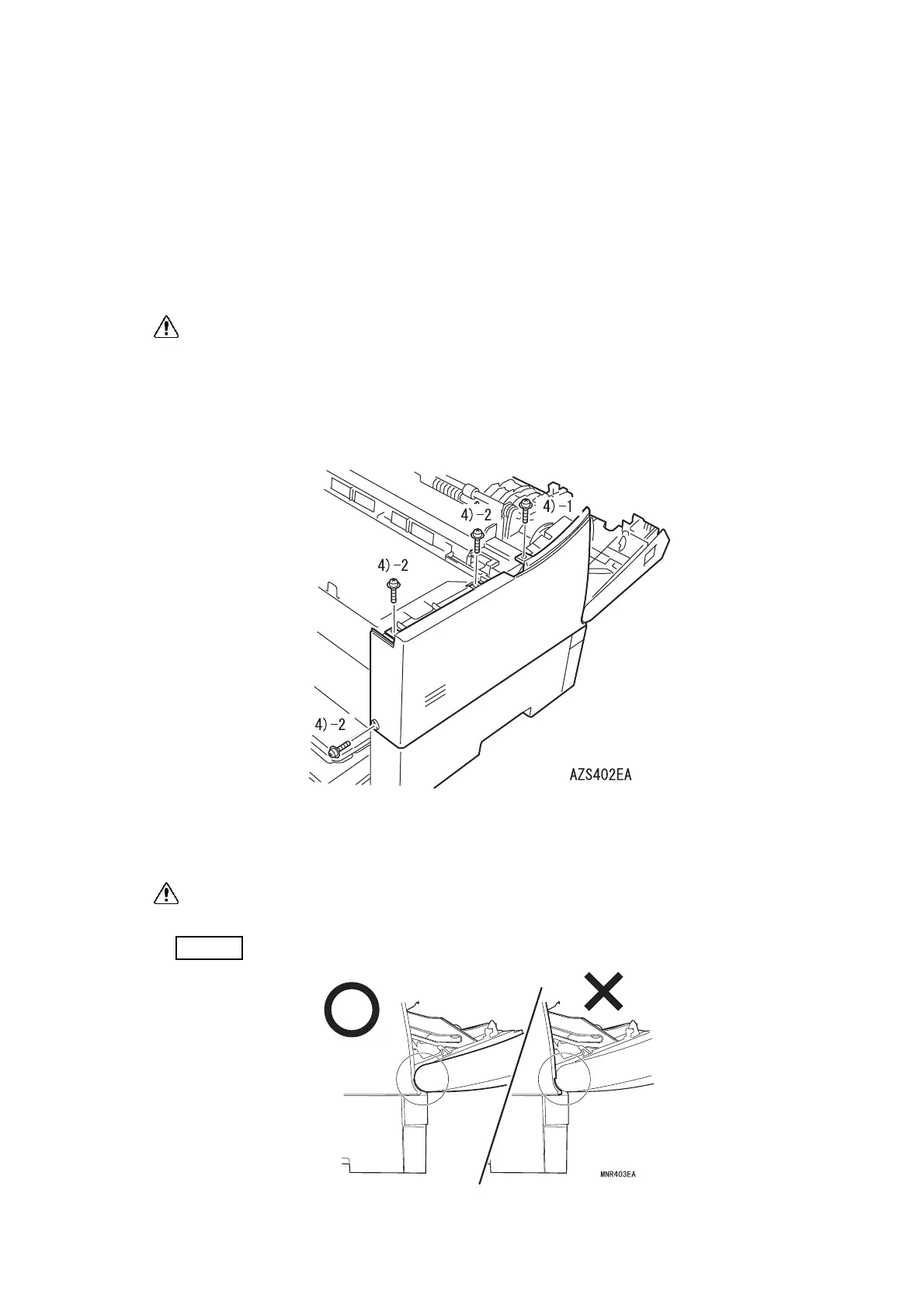

4) Remove the four screws (1 pc - top front: gold, tap, 8mm; 3 pcs: gold, with washer, 8mm) securing
the COVER SIDE LEFT CL.
5) Open the COVER SIDE LEFT CL to left and pull the cover upward to remove.
<Replacement>
Perform the removal procedures in the reverse order.
CAUTION
When replacing the COVER SIDE LEFT CL, be careful not to have a
cable pinched under it.
NOTE
The COVER SIDE LEFT CL should come to the bottom of the front cover.
