Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-55
REP7.4 (SCC) FAN (PL7.1.10)
<Removal>
1) Pull the LEVER FRONT R (PL8.1.11) and LEVER FRONT L (PL8.1.12) toward you, open the
COVER ASSY FRONT.
2) Remove the COVER ASSY STACK CL. (REP1.7)
3) Remove the COVER ASSY PWB. (REP9.5)
4) Remove the COVER ASSY TOP CL. (REP1.4)
5) Remove the COVER SIDE LEFT CL. (REP1.1)
6) Remove the COVER ASSY RIGHT CL. (REP1.2)
7) Remove the COVER MIDDLE CL. (REP1.3)
8) Remove the CHASSIS ASSY CONTROLLER. (REP9.2)

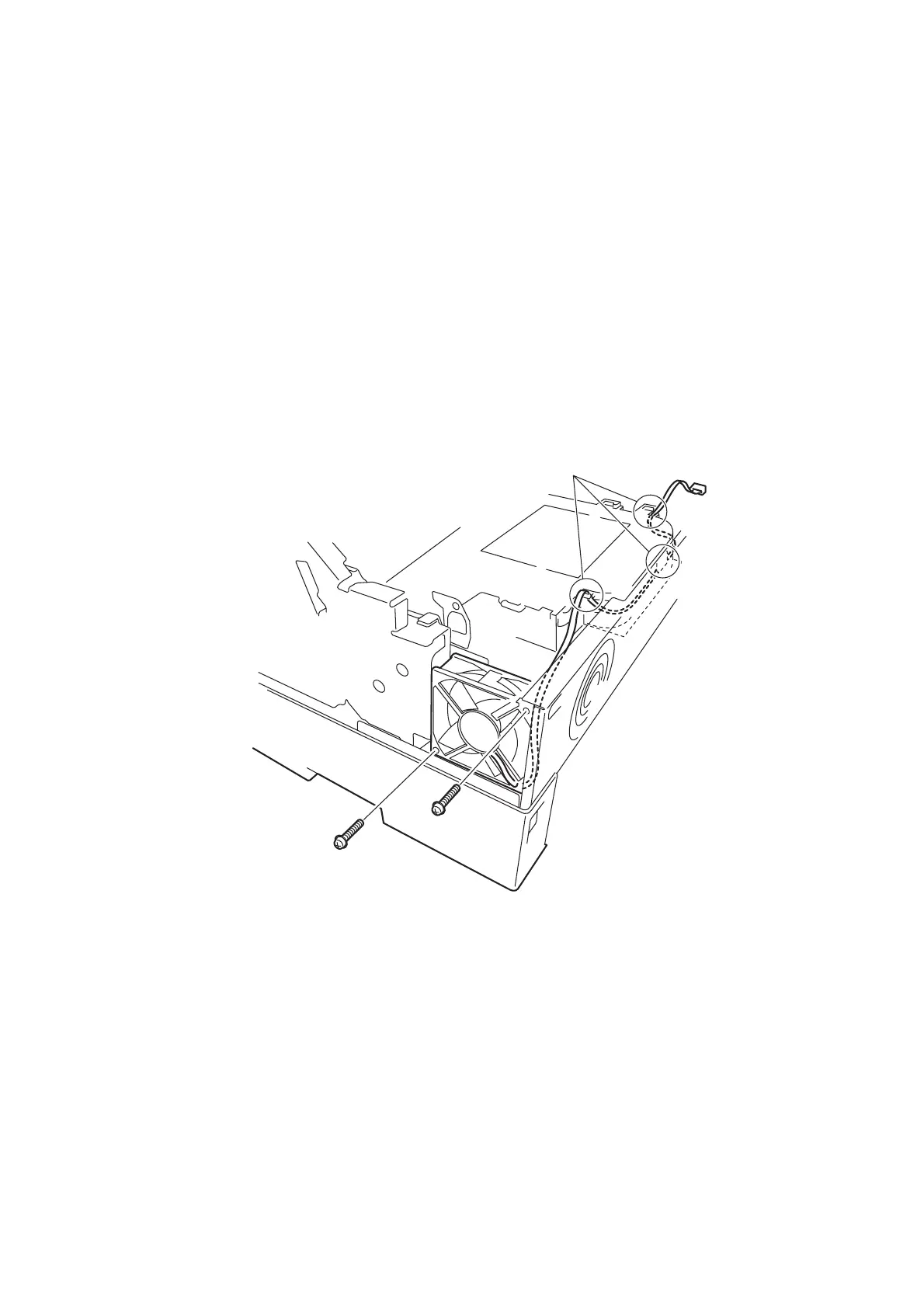

9) Remove the two screws (gold, with washer, 30mm) securing the FAN, release the harness from
the three hooks and remove the FAN.
<Replacement>
Perform the removal procedures in the reverse order.
AZS421CA
9)
9)
