Chapter 10 Machine Overview
10.1 Print Process
10-2
10.1 Print Process
10.1.1 Outline of Print Process

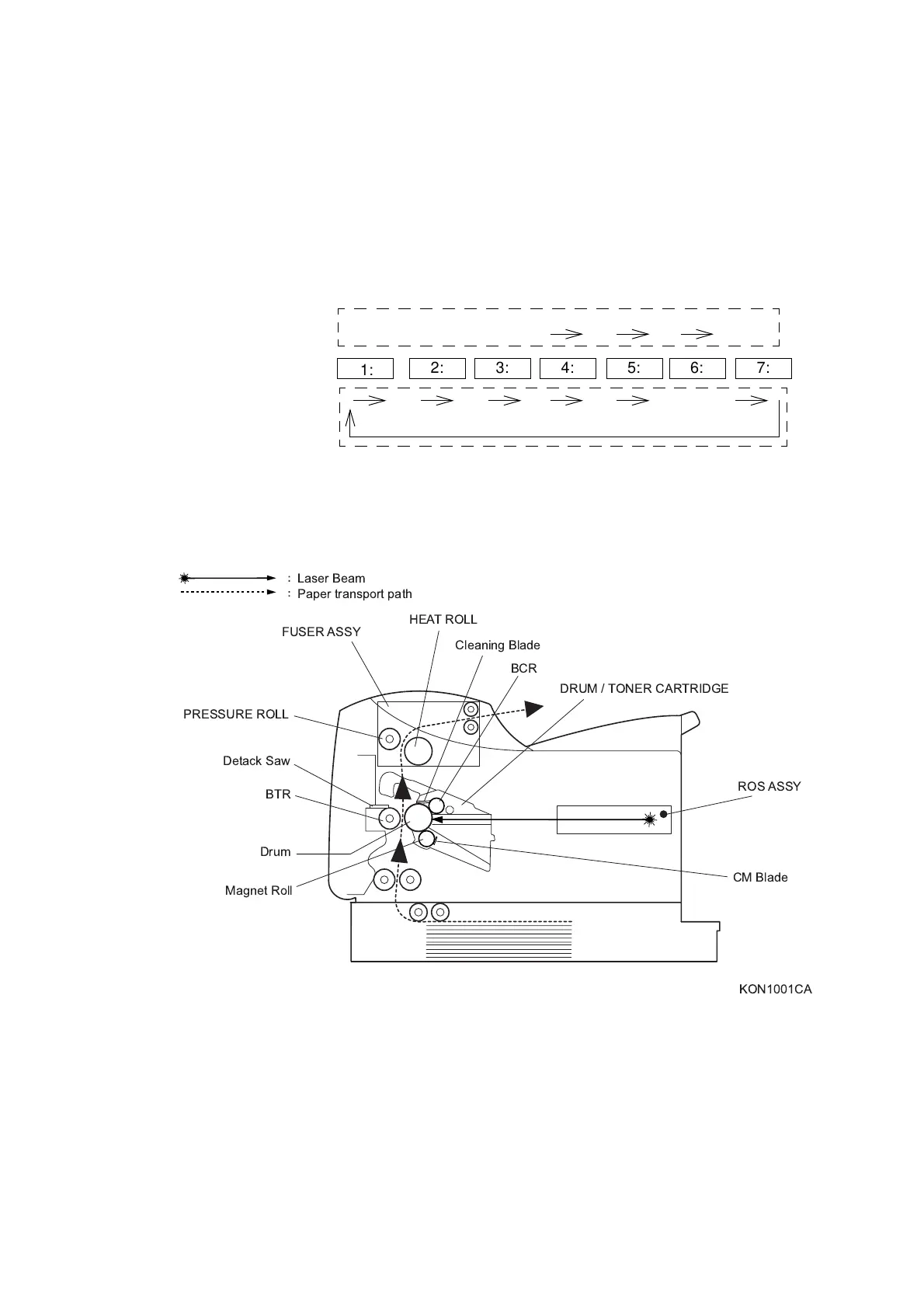

In this device, the print process consists of the seven basic steps to form a toner image on the drum
surface, transfer the toner image to paper, and fix (fuse) the transferred image to paper.
While the drum surface repeats steps 1 to 5 and 7, paper passes through steps 4 to 6.
<Paper flow>
-- >
<Drum operation flow>
1: Charge 2: Exposure 3: Developing 4: Transfer 5: Peeling 6: Fusing 7: Cleaning
<General outline of print process>

 
 
  

 
 
 
 
 ! "

#$%
 &
'# %
(# #'(&# ()
1:
2: 3: 4: 5: 6: 7:
