Fuji Xerox DocuPrint 2050

Chapter 3 Image Quality Troubleshooting
3.3 Print Alignment
3-9
3.3.4 Right angle
Measure the right angle to reduce the inclination of the ROS and OPC.

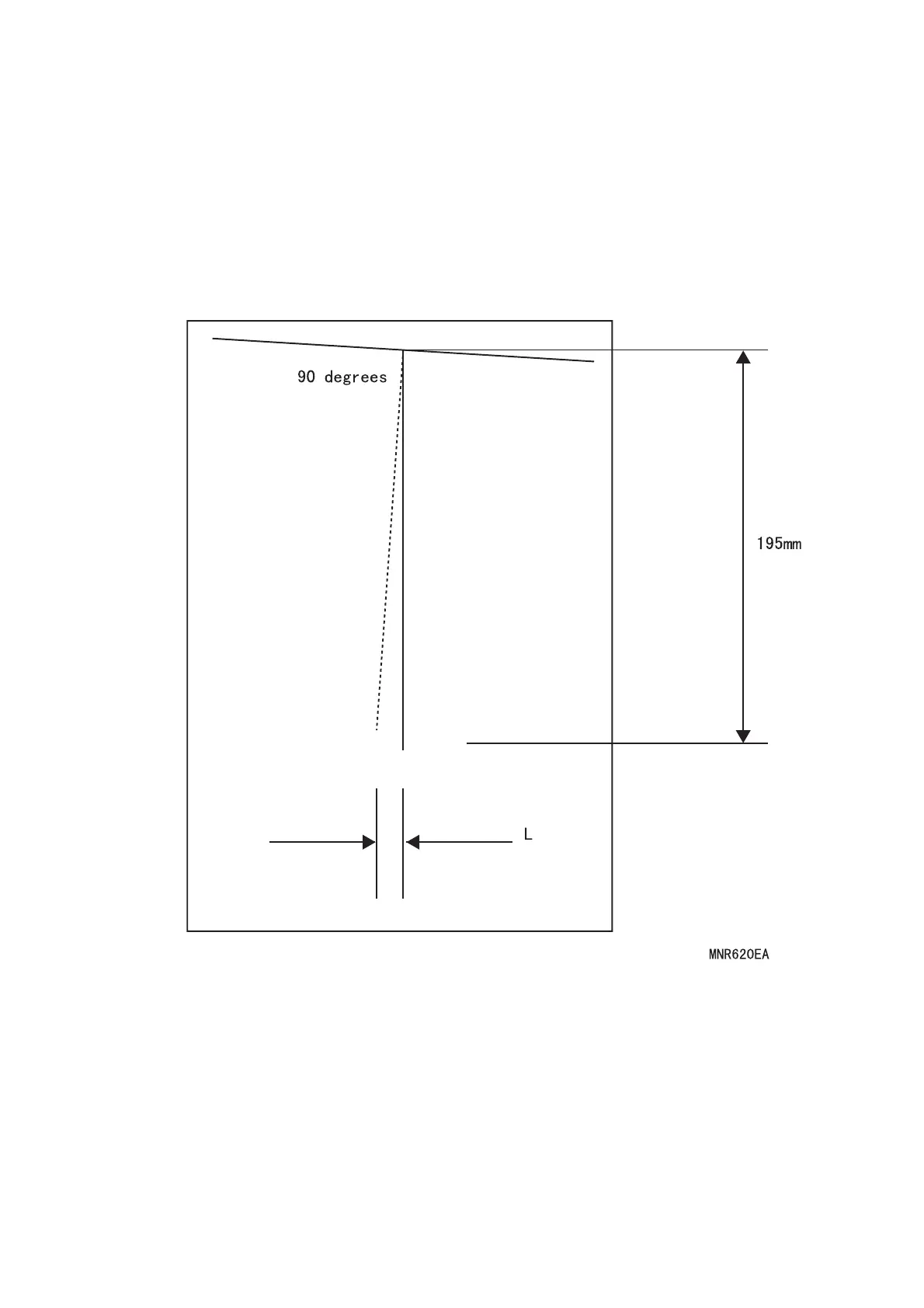

Measure a horizontal error at the logical value 90 degrees apart 195mm from the center point on the
horizontal line.
