Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-42
REP5.5 GUIDE PAPER 250 CST R (PL5.1.17)
<Removal>
1) Remove the CASSETTE ASSY 250 CL (PL2.1.1) from the printer.
NOTE
For the next and later procedures, prepare a 3cm or higher bench.

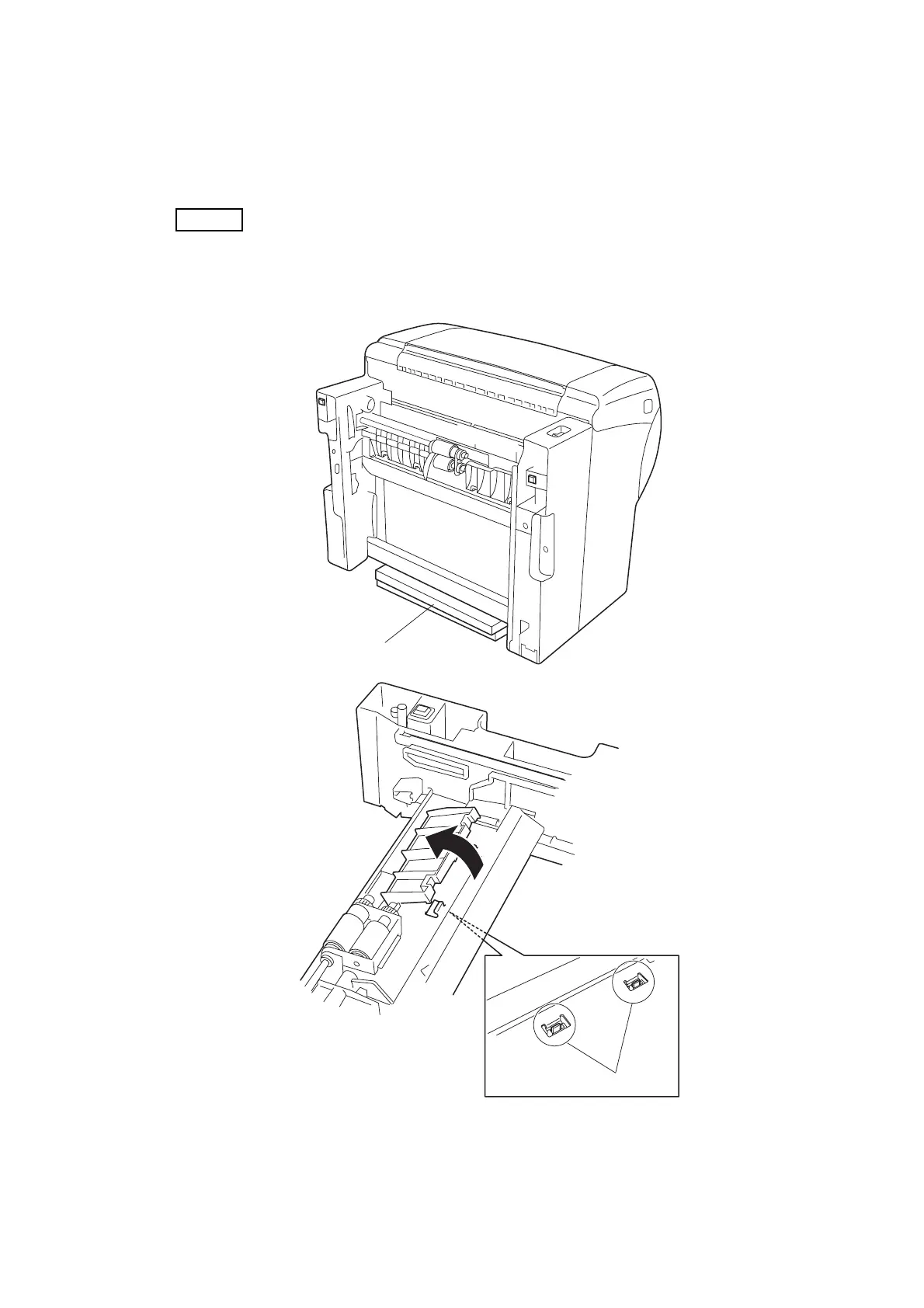

2) Erect the printer with the rear side down.
3) Release the two hooks of GUIDE PAPER 250 CST R from the FRAME FEEDER (PL5.1.12) and
remove the GUIDE PAPER 250 CST R.
<Replacement>
Perform the removal procedures in the reverse order.
AZS456CA
3cm or higher bench
Hook
AZS498CA
3)
To Next Page
