Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-31
REP4.3 (SCC) CLUTCH REGI ROLL A (PL4.1.42)
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
2) Remove the COVER ASSY STACK CL. (REP1.7)
3) Remove the COVER ASSY PWB. (REP9.5)
4) Remove the COVER ASSY TOP CL. (REP1.4)
5) Remove the COVER SIDE LEFT CL. (REP1.1)
6) Remove the COVER ASSY RIGHT CL. (REP1.2)
7) Remove the COVER MIDDLE CL. (REP1.3)
8) Remove the FRAME BASE RTD TRAY HN. (Refer to REP 3.5)
9) Remove the FUSER ASSY CL CH. (REP7.3)
10) Remove the GEAR ASSY. (REP7.1)
11) Remove the REGISTRATION ASSY. (REP4.2)

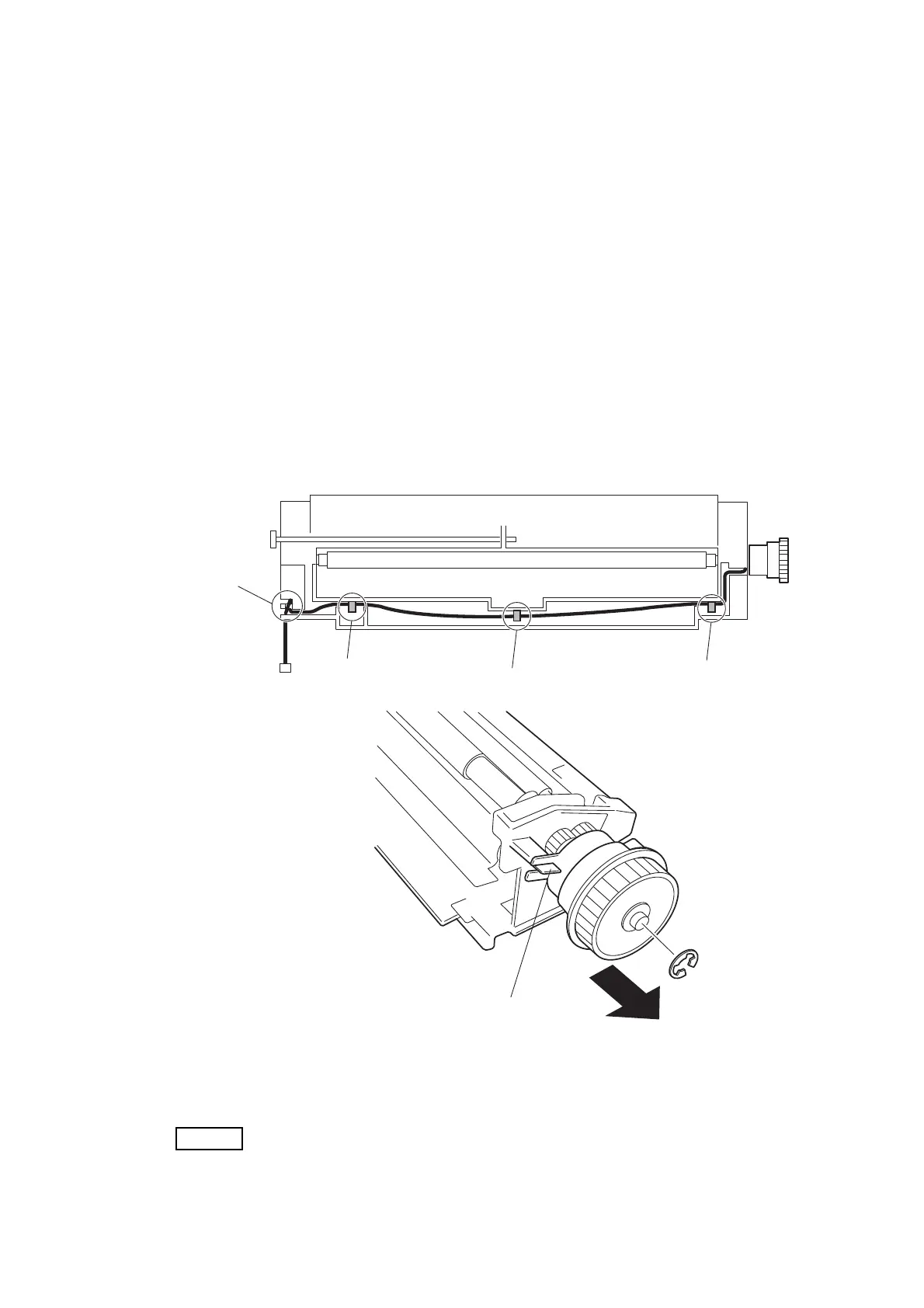

12) Release the registration clutch cable from the hook of FRAME REGI (PL4.1.32).
13) Remove the E ring securing the CLUTCH REGI ROLL A and remove the CLUTCH REGI ROLL A.
<Replacement>
Perform the removal procedures in the reverse order.
NOTE
Be sure to put the notch of the CLUTCH REGI ROLL A on the tab of FRAME REGI
properly.
13)-1
13)-2
AZS432CA
Hook Hook
Hook
Tab
Winding once
To Next Page
