5 - 6 Chapter 5 Parts List
5.2 Parts List

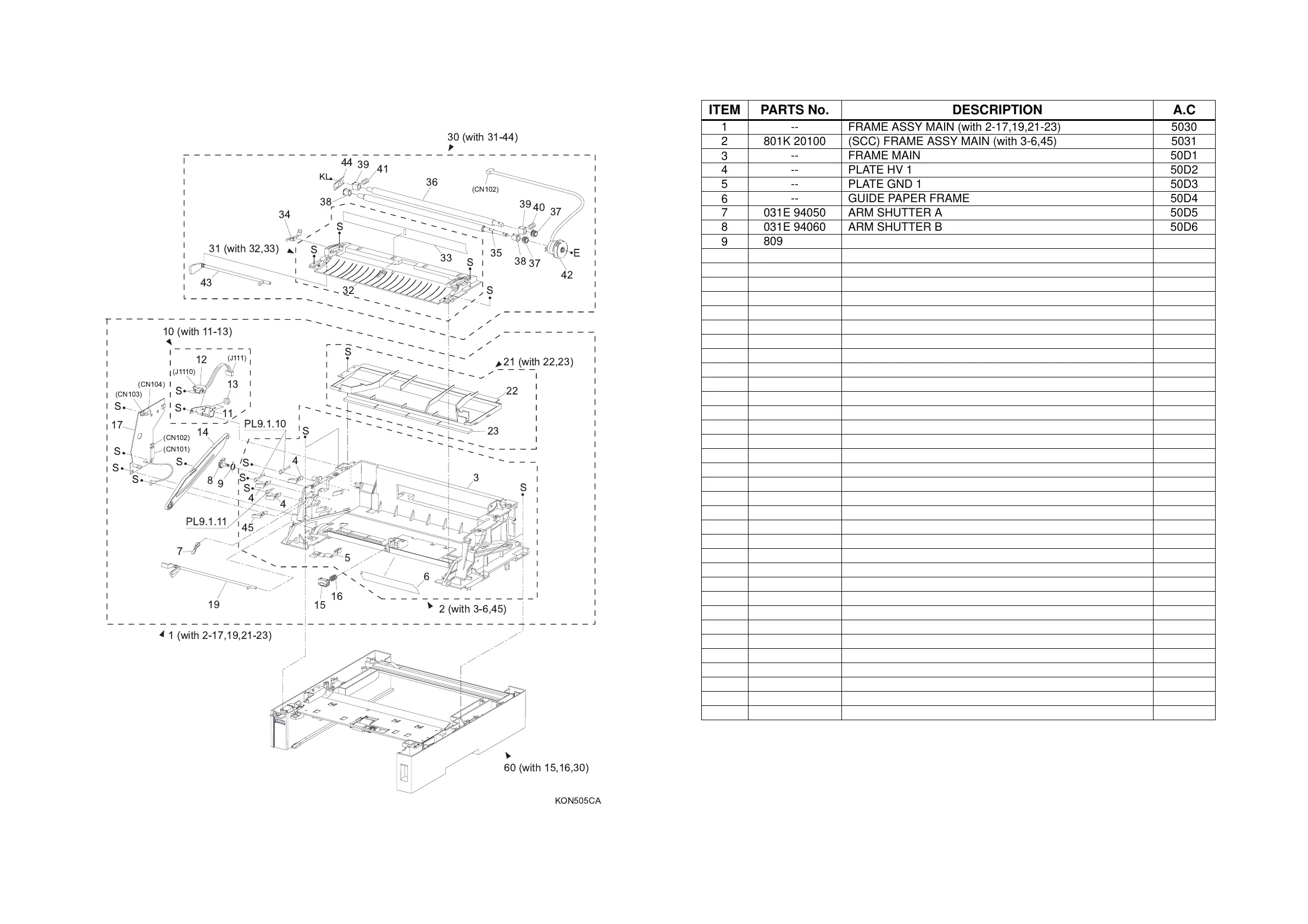

PL4.1 Paper Feeder
[
*: Periodical replacement part (after 100,000 prints)
ITEM PARTS No. DESCRIPTION A.C
1
-- FRAME ASSY MAIN (with 2-17,19,21-23) 5030
2
801K 20100 (SCC) FRAME ASSY MAIN (with 3-6,45) 5031
3
-- FRAME MAIN 50D1
4
-- PLATE HV 1 50D2
5
-- PLATE GND 1 50D3
6
-- GUIDE PAPER FRAME 50D4
7
031E 94050 ARM SHUTTER A 50D5
8
031E 94060 ARM SHUTTER B 50D6
9
809E 64020 SPRING ARM SHUTTER 50D7
10
113K 83080 (SCC) CONNECTOR ASSY EP SNR (with 11-13) 50D8
11
-- BRACKET CONNECTOR 50D9
12
-- HARNESS ASSY CRUM (J111 - J1110) 50DB
13
-- NUT 50DC
14
003E 55920 STOPPER CVR F L 50DD
15
014E 56050 BLOCK 50DE
16
809E 64030 SPRING BLOCK 50DF
17
-- PWBA SENSOR(CN101-CN104) 50DG
18
-- -- 50DH
19
120K 92140 ACTUATOR ASSY REGI 50DJ
20
-- -- 50DK
21
054K 29780 DUCT ASSY AIR (with 22,23) 50DL
22
-- DUCT AIR 50DM
23
-- SEAL AIR DUCT 50DN
24-29
50DP
30
-- REGISTRATION ASSY (with 31-44) * 50DQ
31
-- REGI ASSY (with 32,33) 50DR
32
-- FRAME REGI 50DS
33
-- GUIDE PAPER REGI 50DT
34
-- PLATE GND REGI 50DV
35
-- ROLL ASSY REGI 50DW
36
-- ROLL ASSY PRESS 50DX
37
-- GEAR REGI 50DY
38
-- BEARING REGI ROLL 50E1
39
-- BEARING PRESS ROLL 50E2
40
-- SPRING P/ROLL R 50E3
41
-- SPRING P/ROLL L 50E4
42
121K 37351 (SCC) CLUTCH REGI ROLL A (CN102) 50E5
43
120E 26840 ACTUATOR REGI D 50E6
44
-- RING PRESS ROLL 50E7
45
-- PLATE GND 50E8
46-59
-- -- 50E9
60
604K26220 (SCC) KIT REGISTRATION ASSY (with 15,16,30) * 50EA
To Next Page
