5 - 8 Chapter 5 Parts List
5.2 Parts List

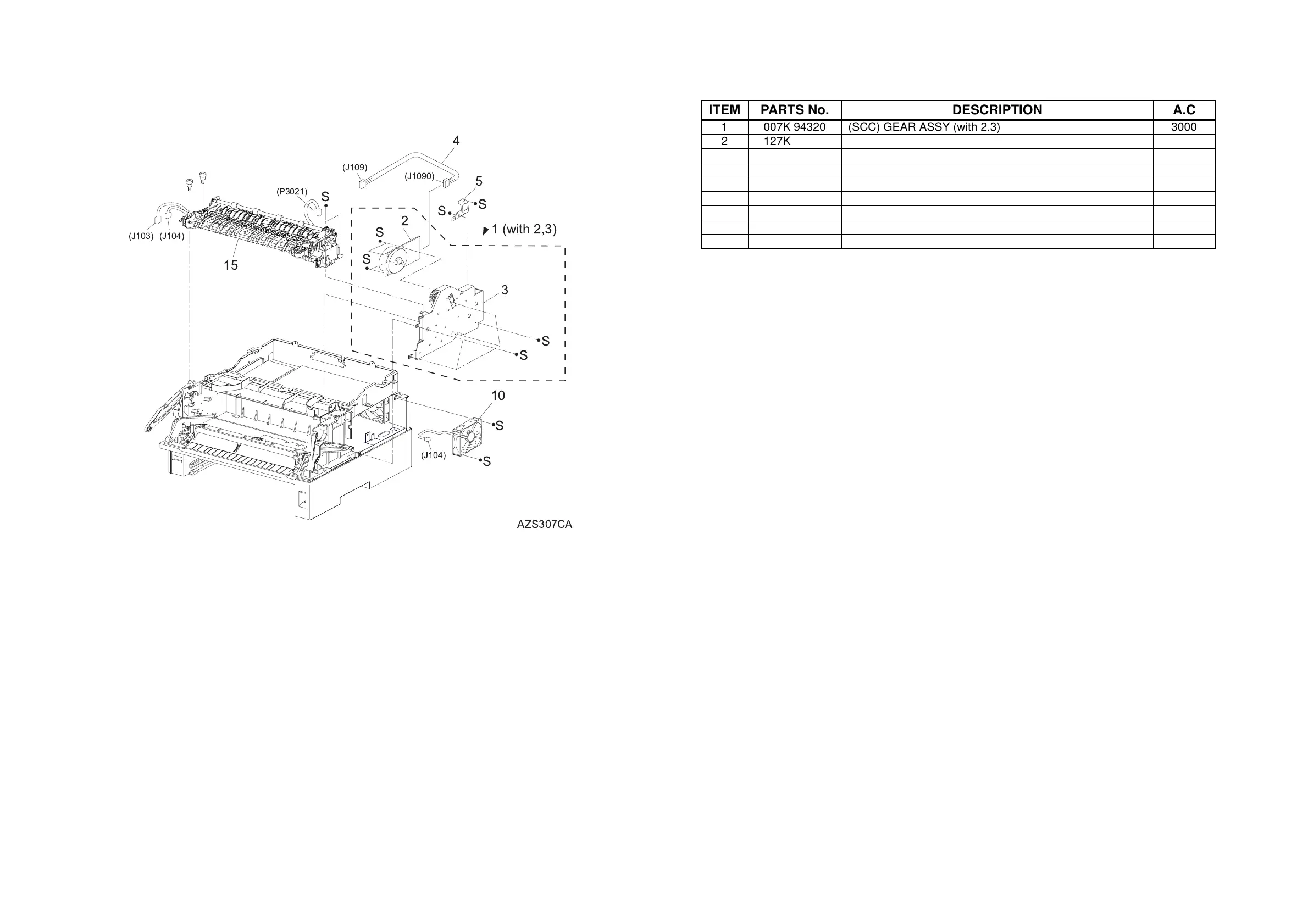

PL7.1 Drive
*: Periodical replacement part (after 100,000 prints)
1 (with 2,3)
2
3
15
S
S
S
AZS307CA
S
S
S
10
4
(J103) (J104)
(P3021)
(J109)
(J1090)
(J104)
S
S
S
5
ITEM PARTS No. DESCRIPTION A.C
1
007K 94320 (SCC) GEAR ASSY (with 2,3) 3000
2
127K 48460 (SCC) MOTOR ASSY MAIN (P1090) 3010
3
-- PLATE ASSY GEAR 30B1
4
-- HARNESS ASSY MOTOR MAIN (J109 - J1090) 30B2
5
115E 08340 PLATE GND GEAR 30B3
6-9
-- -- 30B4
10
127K 48470 (SCC) FAN (J104) 30B5
11-14
-- -- 30B6
15
126K 20430 (SCC) FUSER ASSY CL CH (CN103, CN104,P3021) * 4300
