Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-60

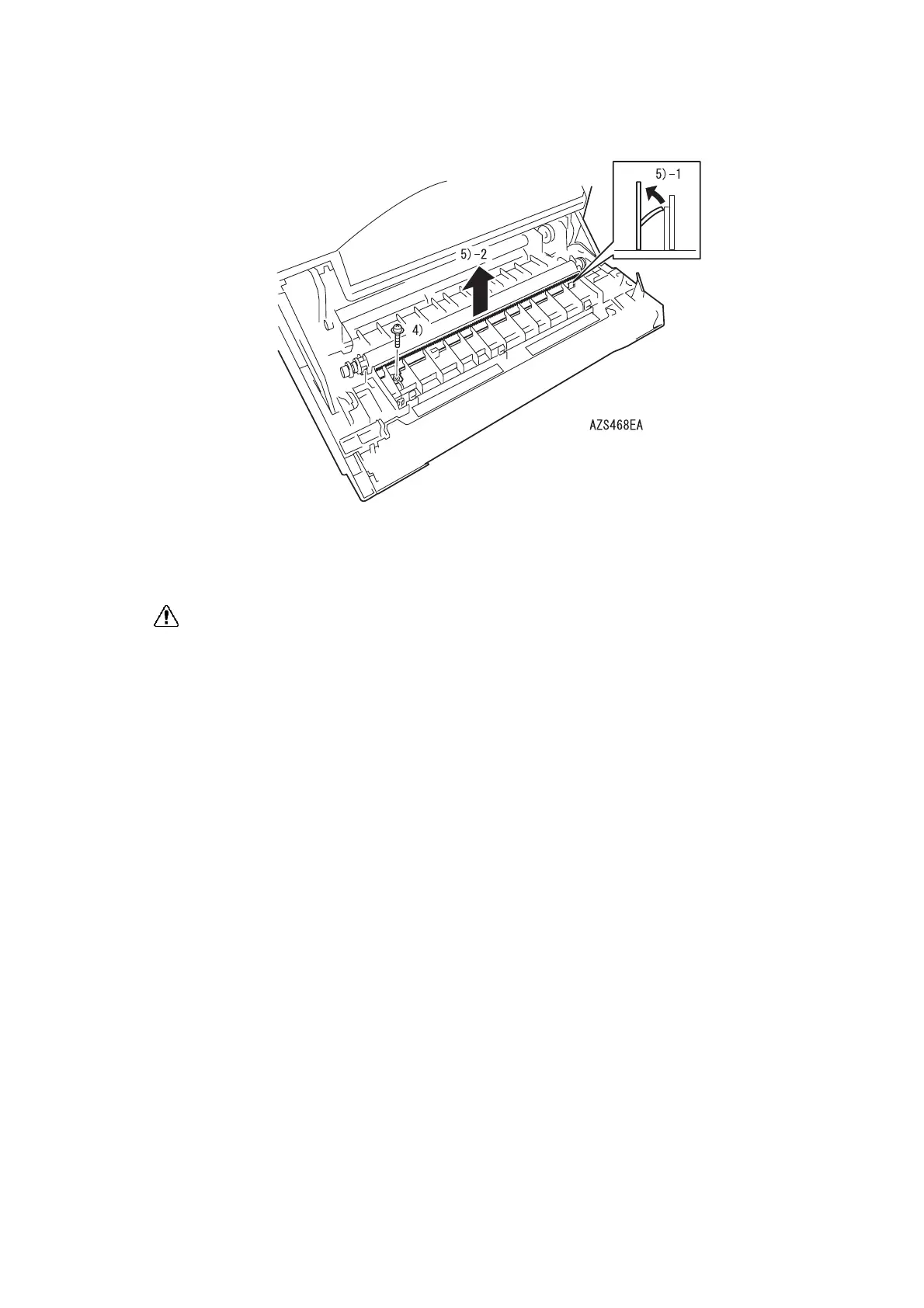

<Replacement>
Perform the removal procedures in the reverse order.
CAUTION
Replace the five bent tabs of the PLATE DT SAW and attach it.
