Chapter 6 General
6.5 Installation Procedure
6-19

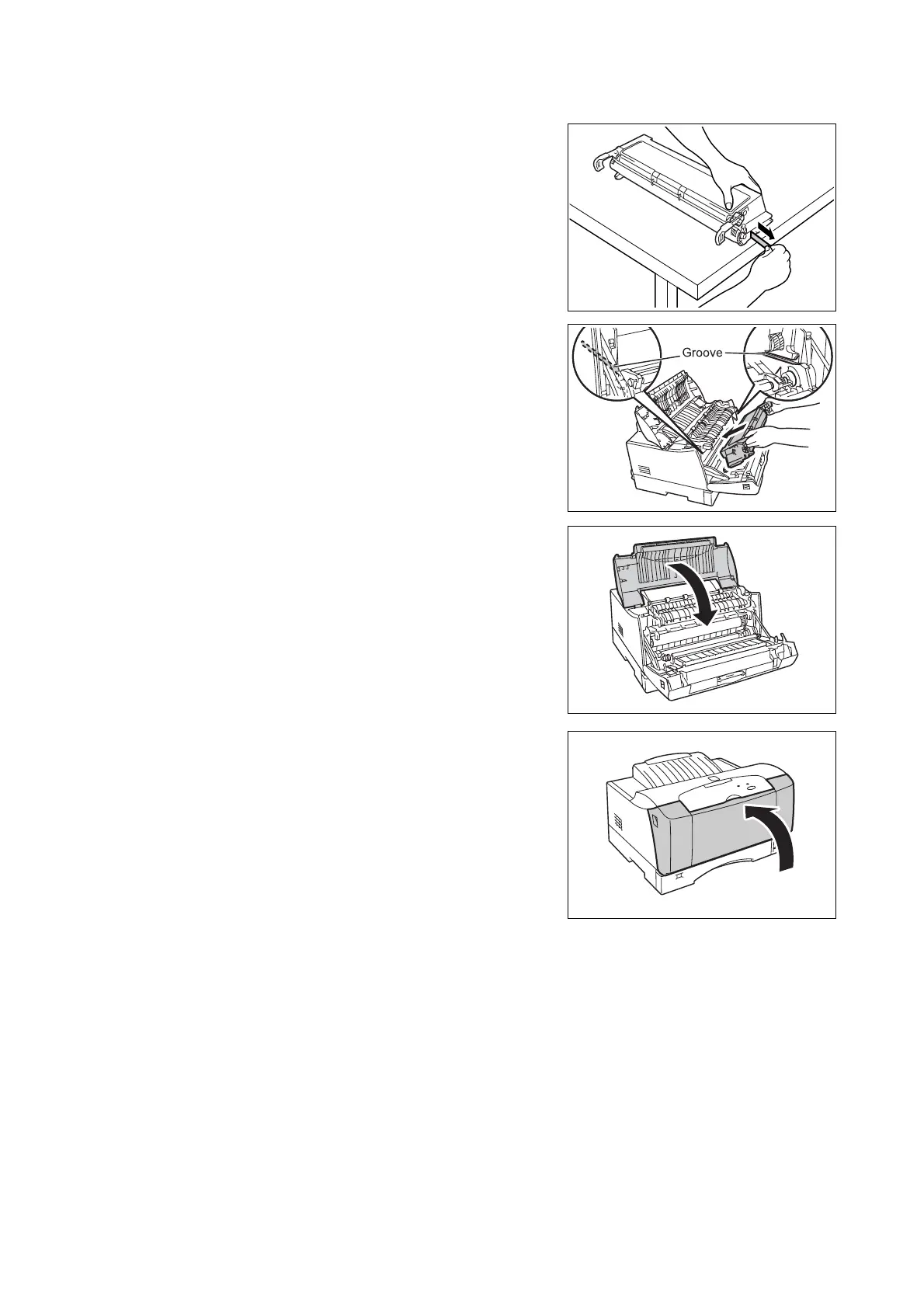

4. Place the drum/toner cartridge on a flat surface
and pull out the seal horizontally.
Important
• When pulling out the seal, pull it out horizontally. The tape
might break if it is pulled out at an angle.
• After the seal has been pulled out, do not shake or bump
the drum/toner cartridge.
5. Hold the drum/toner cartridge by the grip and
align the protrusions of the cartridge with the
grooves inside the printer, and then slide it into
the grooves as shown in the diagram.
Important
• Do not touch any parts inside the printer.
• Ensure that the drum/toner cartridge is firmly set.
6. Close the top cover.
7. Close the front cover until it clicks.
To Next Page
