Wireless configuration
Viewing wireless information
4-38
V
i
ewing wireless client data rates
T
o view information on all wireless client st
ations currently connected
to the AP
,
select

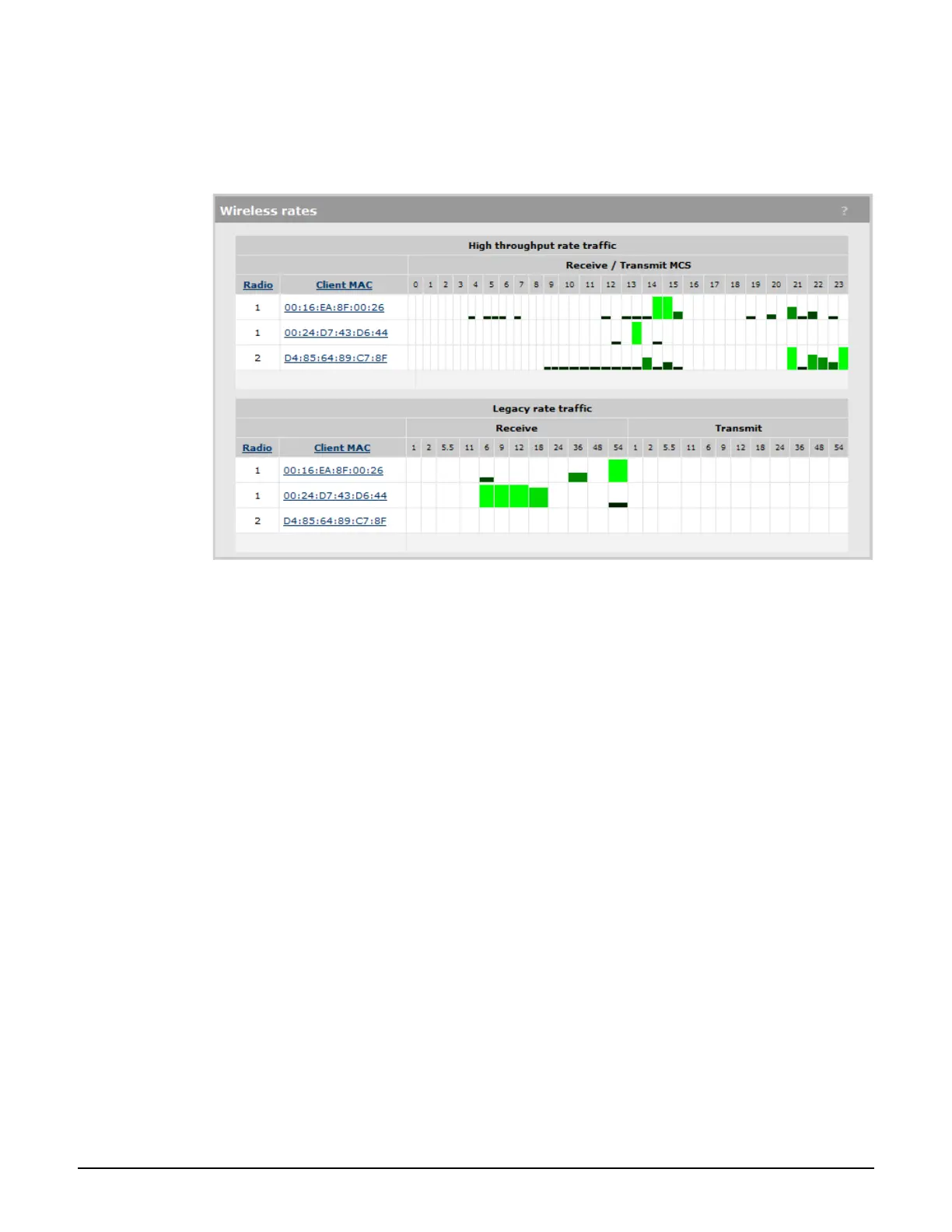

Controlled APs >> Overview > Wireless rates
.
This page shows the vo
lume of traffic sent and
received at each dat
a rate for each client
station. Headings in bold indi
cate the d
ata rates that are cu
rrently active for the wireless
mode being used.
