HP MSM7XX

LLDP
Configuring LLDP on an AP
17-8
Configuring LLDP on an AP

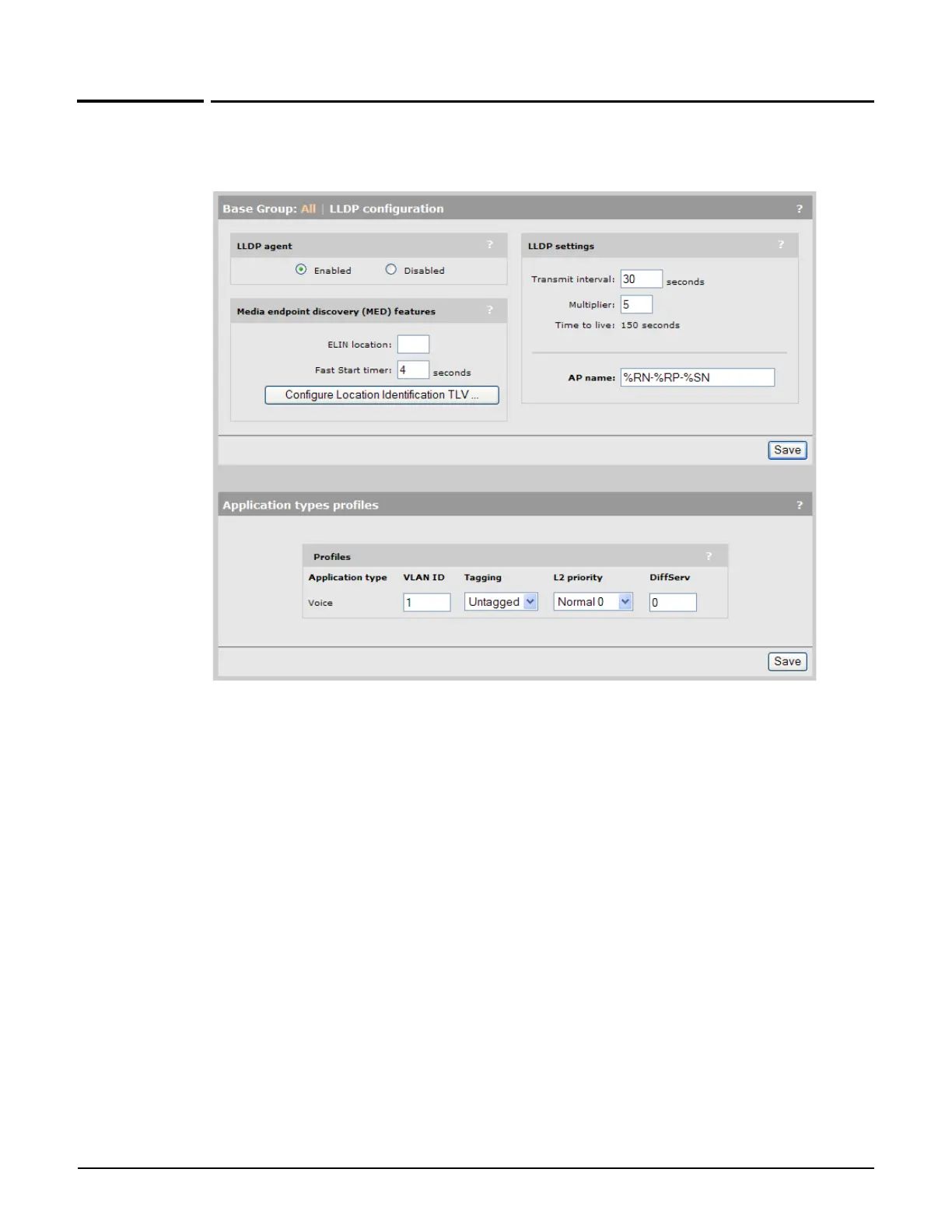

AP settings are defined by selecting Controlled APs >> Configuration > LLDP.
LLDP agent
Enable this option to activate LLDP support on the AP. When active, the agent will transmit
and receive LLDP information.
When operating in controlled mode:
 The LLDP agent on an AP will not respond to SNMP requests. Therefore, local and
remote MIB information is not available to external devices via the AP. Instead, this
information can be retrieved from the controller.
 LLDP is not supported on local mesh links.
Supported TLVs
The LLDP agent on an AP supports the following Basic TLVs:
Mandatory TLVs
 Chassis ID (Type 1): The MAC address of the AP.
 Port ID (Type 2): The MAC address of port on which the TLV will be transmitted.
