Local mesh
Sample local mesh deployments
13-15
Sample local mesh deployments

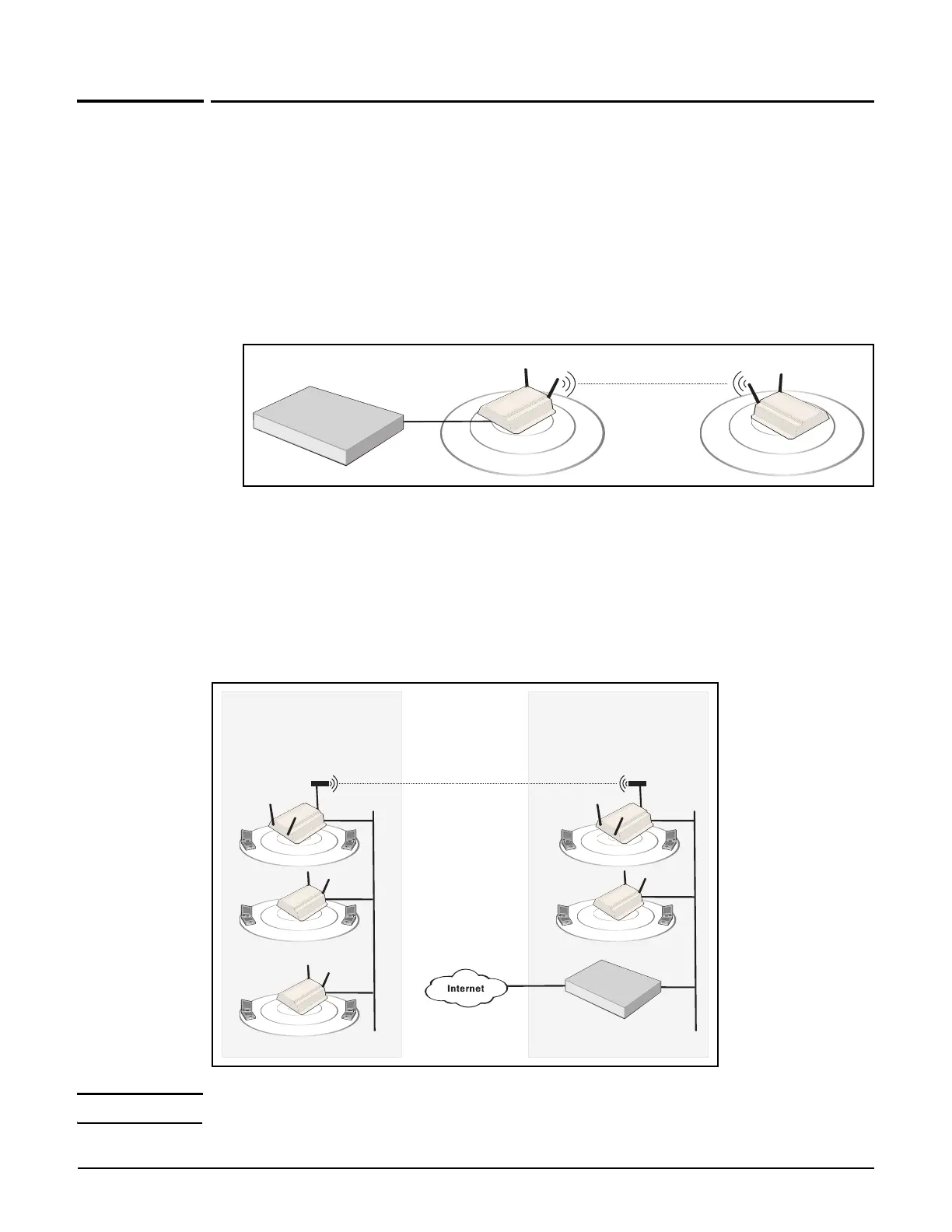

RF extension
Local mesh provides an effective solution for extending wireless coverage in situations
where it is impractical or expensive to run cabling to an AP.
In this scenario, a wireless bridge is used to extend coverage of the wireless network. Both
APs are equipped with omni-directional antennas, enabling them to deliver both AP
capabilities and wireless bridging using local mesh capabilities.
Building-to-building connection
You can also use local mesh to create point-to-point links over longer distances. in this
scenario, two dual-radio APs create a wireless link between networks in two adjacent
buildings. Each AP is equipped with a directional external antenna attached to radio 1 to
provide the wireless link. Omnidirectional antennas are installed on radio 2 to provide AP
capabilities. The two APs are placed within line of sight.
Note In the above example, all APs must connect to the backbone network via port 1.
W
L
A
N
W
L
A
N
wireless link
Controller
AP 1 AP 2
P
U
B
L
I
C
W
L
A
N
AP 4
AP 1
wireless link
P
U
B
L
I
C
W
L
A
N
P
U
B
L
I
C
W
L
A
N
directional
antenna
Building A Building B
directional
antenna
AP 2
AP 3
P
U
B
L
I
C
W
L
A
N
Controller
AP 5
P
U
B
L
I
C
W
L
A
N
