Working with controlled APs
Provisioning APs
6-34
Provisioning connectivity

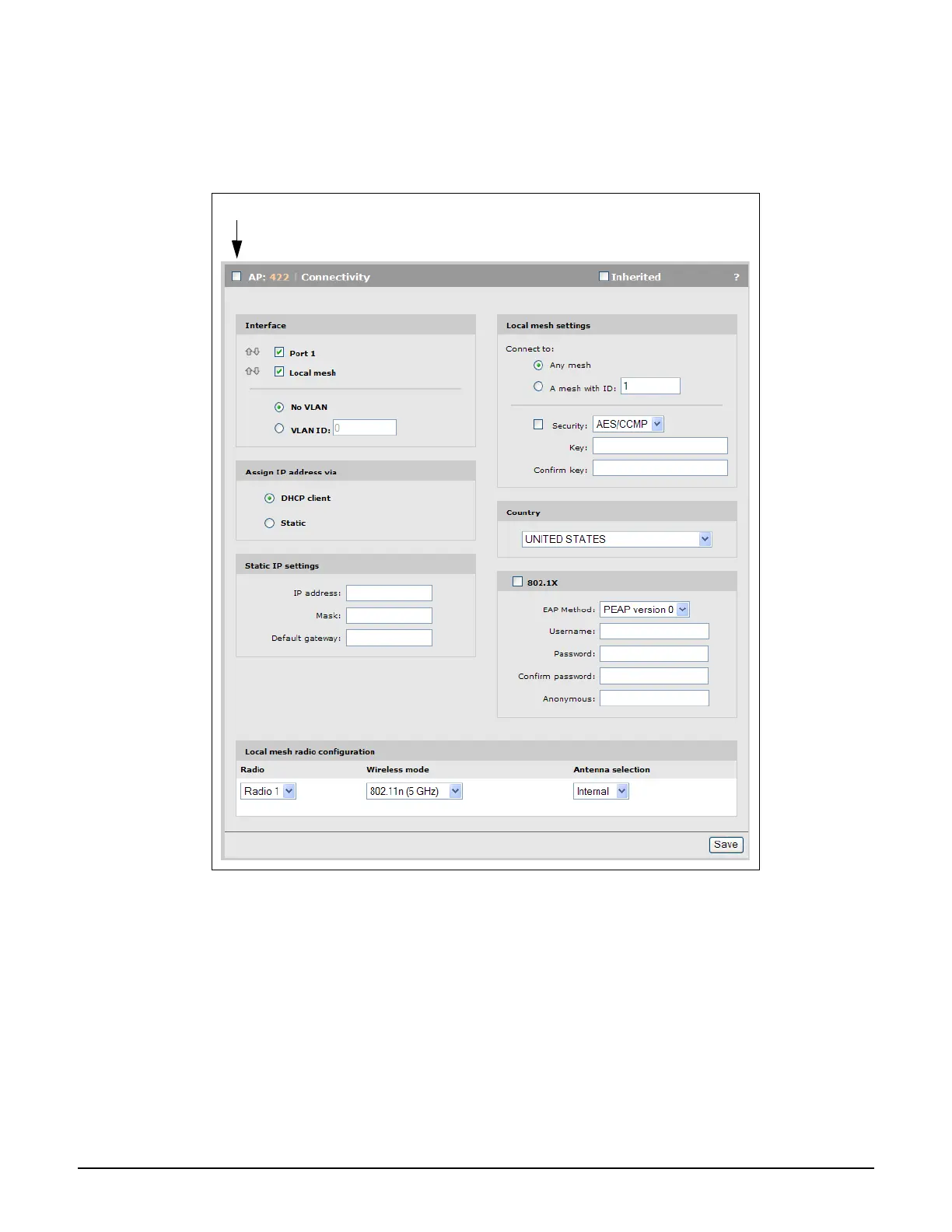

Use the
Provisioning > Connectivity
page to provision conne
ctivity sett
ings for a
controlled AP
. The following
page will ap
pear on all APs except for the MSM317.
Enable provisioning here:
