Console ports
Overview
B-2
Overview

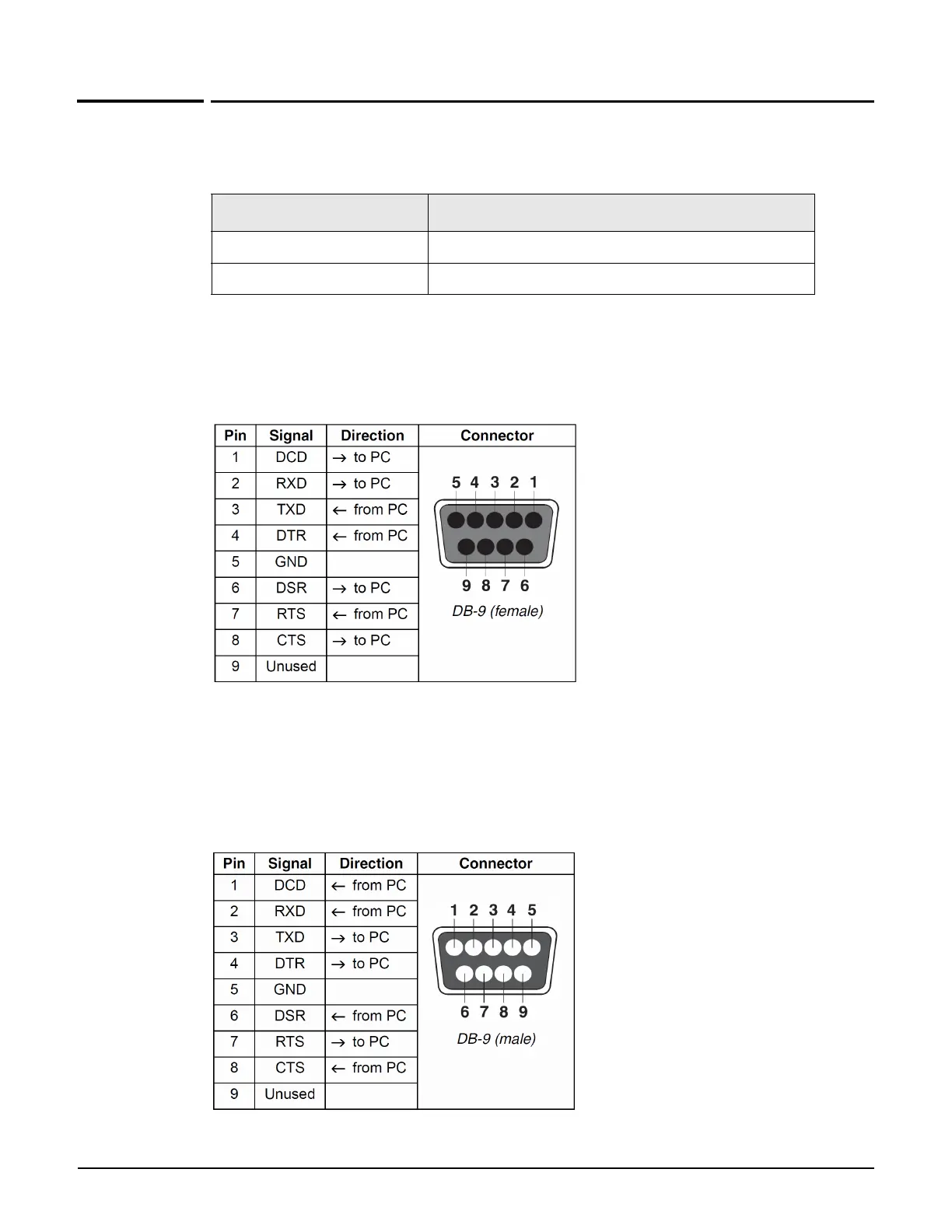

Console port and cable information for the MSM7xx controllers is provided as follows:
MSM710 Console port
The MSM710 provides a DB-9 (female) Console (serial) port connector. The DB-9 connector
(DCE) has pin assignments as follows:
To connect to a computer, use a standard (straight through) serial cable (male-to-female).
MSM730 Console port
The MSM730 provides a DB-9 (male) Console (serial) port connector (DTE). The DB-9
connector has pin assignments as follows:
Product Information to use
MSM710, MSM730, MSM750 Relevant section below
MSM760, MSM765zl The provided Installation and Getting Started Guide.
