Console ports
Using the console port
B-3
To connect to a computer, use the supplied null-modem serial cable.
MSM750 Console port
The MSM750 provides an RJ-45 Console (serial) port connector. Connect the supplied RJ-45

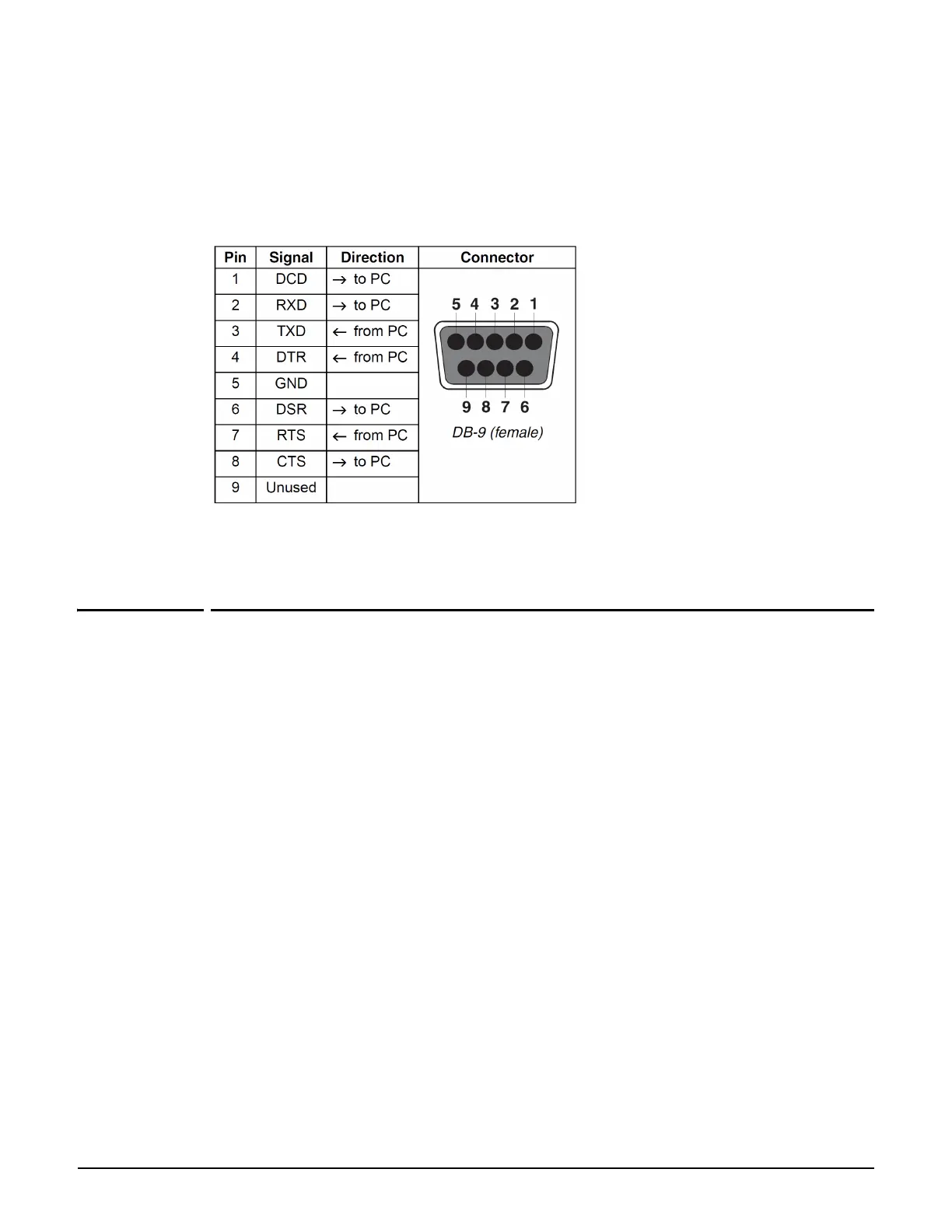

to DB-9 (female) adapter. The DB-9 connector (DCE) has pin assignments as follows:
To connect to a computer, use a standard (straight through) serial cable (male-to-female).
Using the console port
The console port can be used to do the following:
 Reset the controller to factory default settings. For complete instructions, see Using the
Console (serial) port on page C-3).
 Reset the manager username and password to factory default settings. For complete
instructions, see To reset manager credentials on a controller on page 2-6.
