Working with VSCs
VSC configuration options
5-31

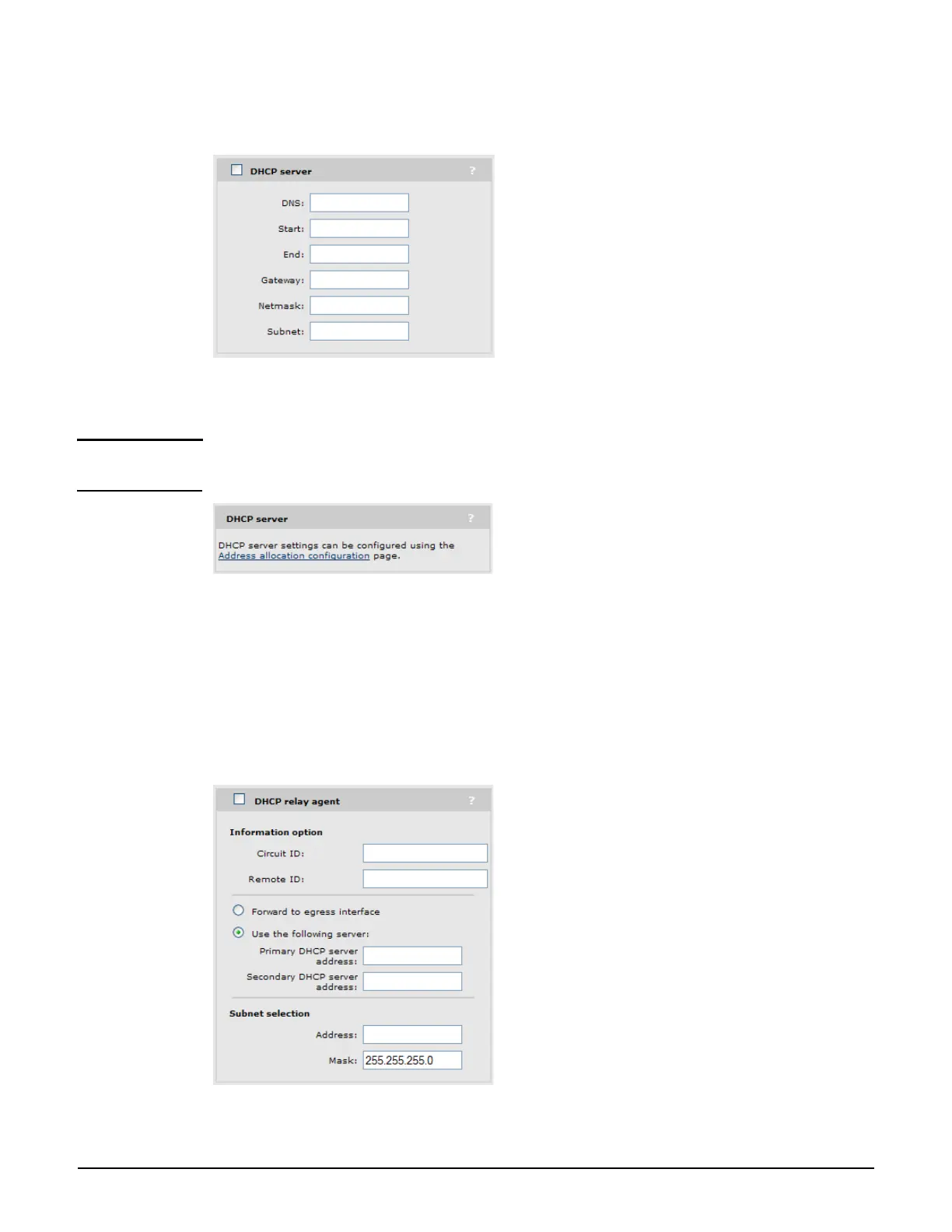

A separate DHCP server can be enabled on each VSC to provide custom addressing that is
different from the base DHCP subnet that is determined by the LAN port IP address.
To receive traffic from users, the controller assigns the Gateway address you specify to its
LAN port.
Note These configuration options do not appear for the default VSC. The default VSC uses the
same settings as defined on the Controller >> Network > Address allocation page.
DHCP relay agent
This option is only available if the controller is currently configured as a DHCP relay agent on
the Controller >> Network > Address allocation page. See Address allocation on
page 3-13.
A separate DHCP relay agent can be enabled on each VSC to provide custom addressing to
users.
