User authentication, ac
counts, and addressing
Locally-defined user accounts
10-35
Defining subscription plans
1.
Select
Controller >> Users > Subscription plans
. The Subscription plans page opens.
It presents a list of all defined subscription plans.
2.
Select
Add New Plan

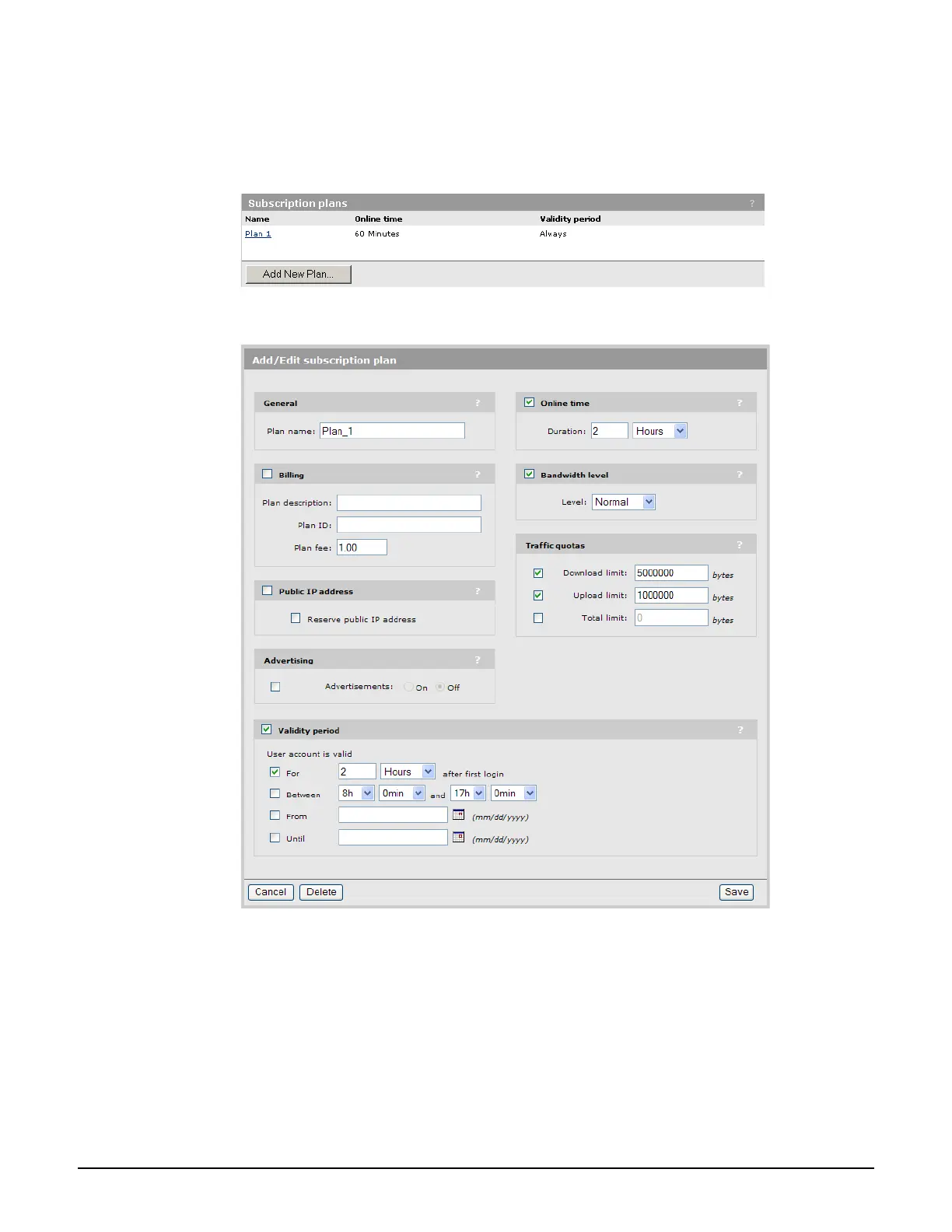

. The Add/Edit subscrip
tion plan page opens.
3.
Configure plan options as described in the online help
.
362
364
