Working with VSCs
VSC configuration options
5-13
Unicast traffic exchanged between VSCs on different radios is controlled by the setting
of the sender’s VSC.
Multicast traffic exchanged between VSCs is always controlled by the setting of the
sender’s VSC.
Generally, most clients will be involved in the bidirectional exchange of unicast packets. In
this case, the rules can be simplified by assuming that the most restrictive setting for this
option takes precedence. For example:
If VSC1 is set to No and VSC2 is set to All, no communication is permitted between
clients on the two VSCs, or between clients on VSC1. However, all clients on VSC2 can
communicate with each other.
If VSC1 is set to 802.1X and VSC2 set to All, only 802.1X clients can communicate
between the two VSCs.
Client data tunnel
(Only available when Access control is enabled.)
When a VSC is access-controlled, client traffic that is sent between the AP and controller can
be carried in the client data tunnel. This provides the following benefits:
User traffic is segregated from the backbone network and can only travel to the
controller.
Underlying network topology is abstracted enabling full support for L2-connected users
across routed networks.
The client data tunnel is always used when the connection between a controlled AP and its
controller traverses at least one router. The client data tunnel supports NAT traversal, so it
can cross routers that implement NAT.

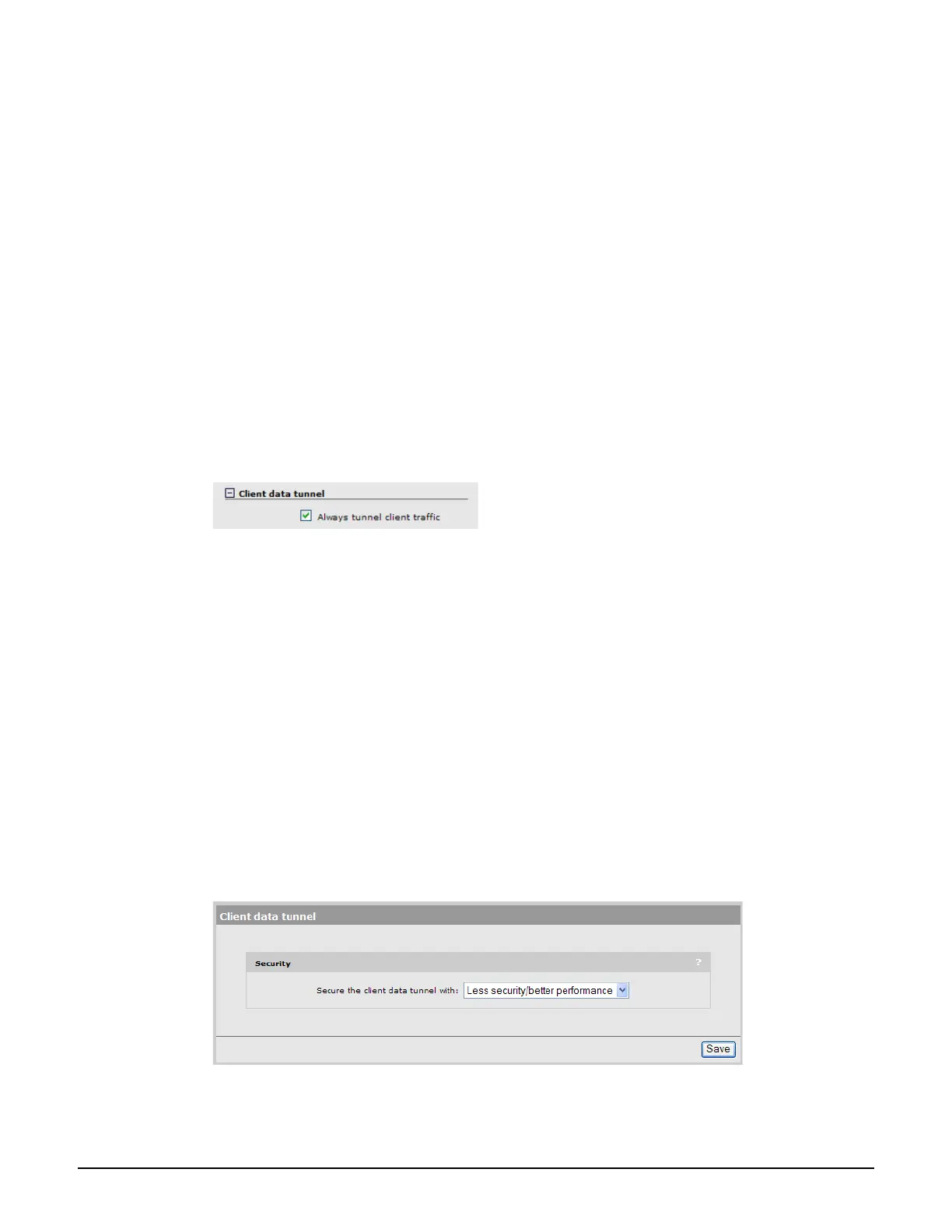

Optionally, the client data tunnel can also be used when a controlled AP and its controller are
on the same subnet. To do this, enable the Always tunnel client traffic option.
Performance and security settings for the client data tunnel can be customized by selecting
Controller >> Controlled APs > Client data tunnel.
Less security/better performance: This option provides security using a secret key
that is attached to each packet. The key is rotated every 200 seconds.
