Mobility traffic manager
Scenario 3: Centralized traf
fic on a c
ontroller with per-user traffic routing
9-37
VSC binding
This scenario assumes that all APs are part of the
Default
Group
.
1.
Select

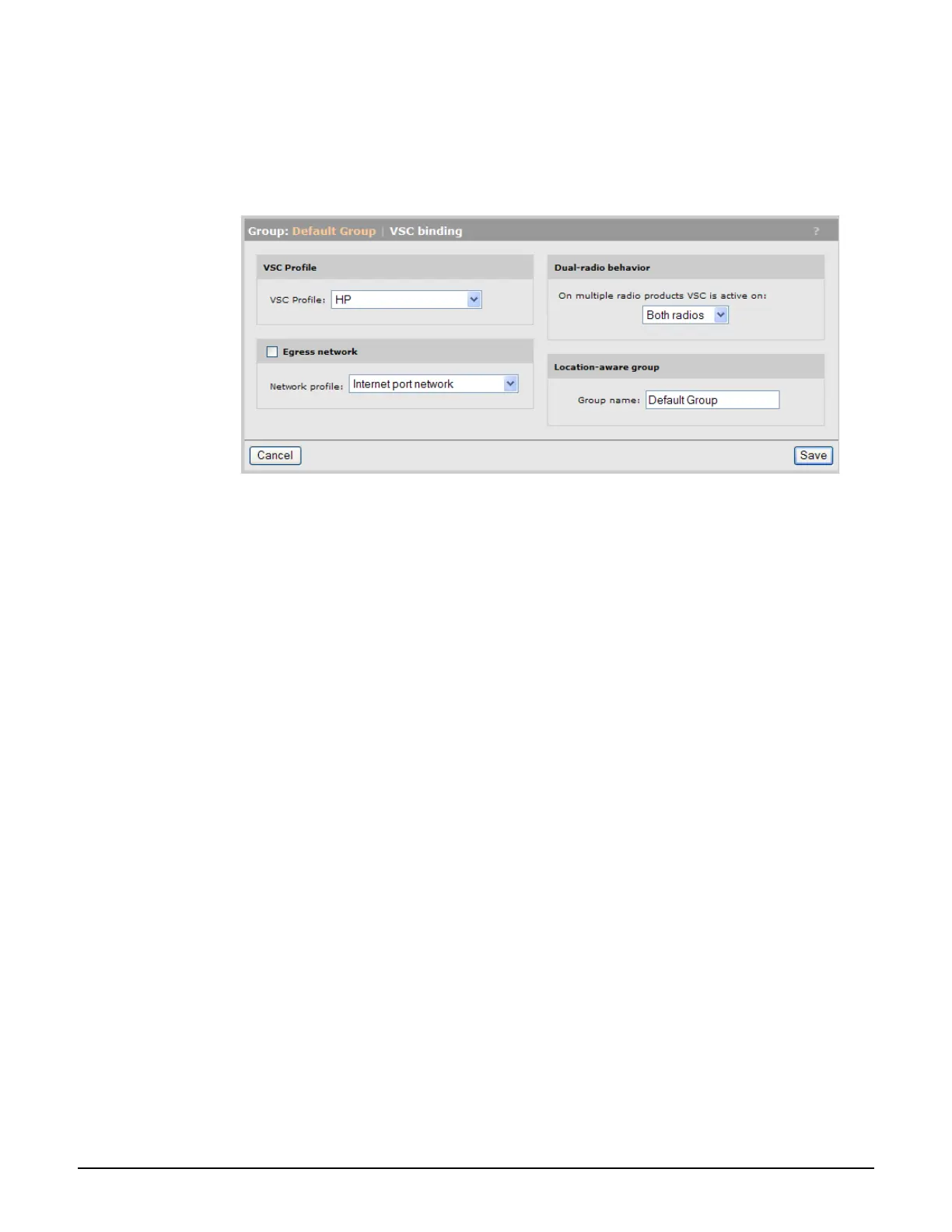

Controller > Controlled APs > Default Group >> VSC bindings
and then
select
HP
. The
VSC binding
page appears.
Under
VSC Profile
, set
VSC profile
to
HP
.
2.
Select
Save
.
304
306
