Public/guest network access
Managing payment services
14-39

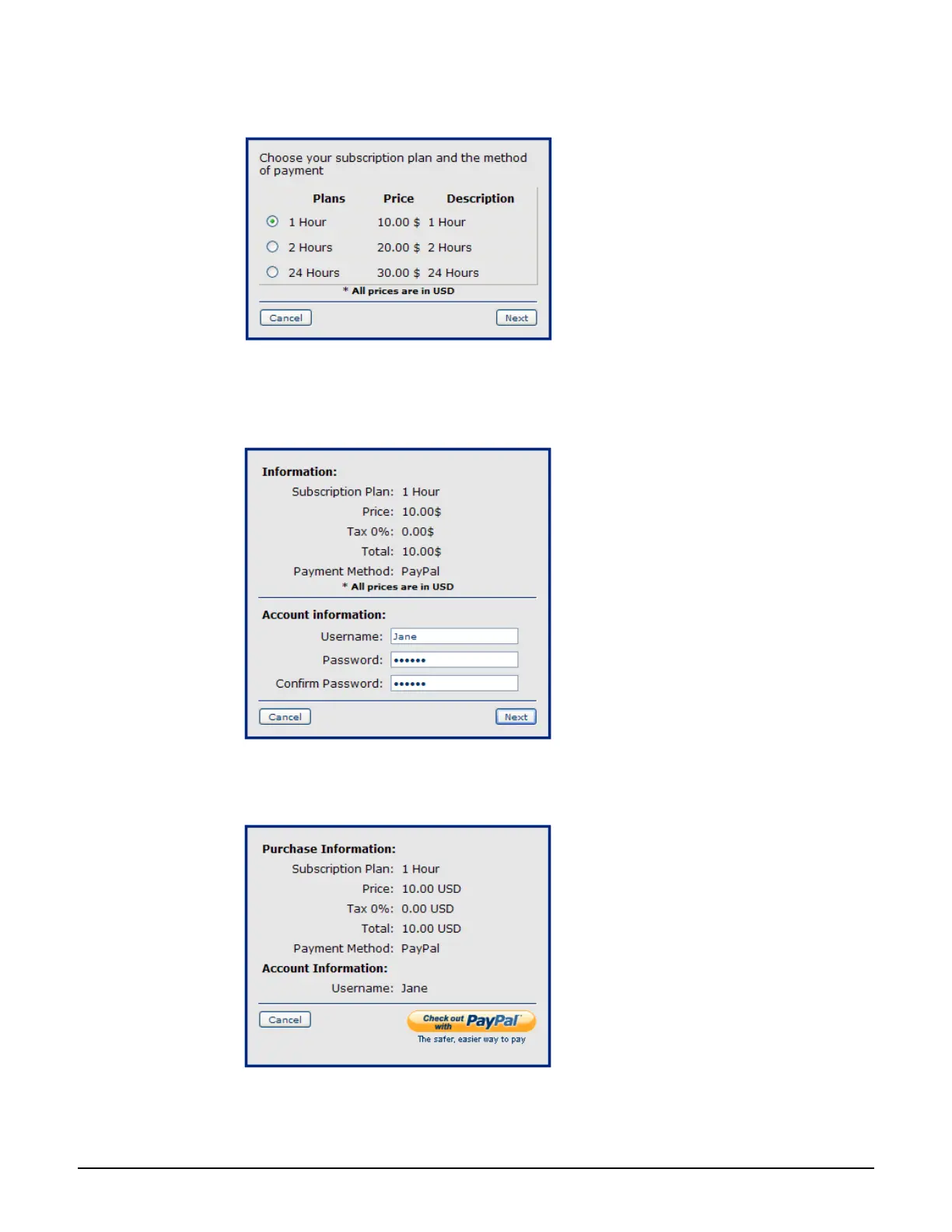

2.
The user chooses a
subscription plan and then selects
Next
.
page name=
subscribe.asp
3.
The user reviews the su
bscription plan info
rmation, specifies a u
sername and password
for the new account, and then selects
Next
.
page name=
account.asp
4.
The user selects the
Checkout with PayPal
button to pay
.
page name=
payment.asp
