Matrix ETERNITY NE System Manual 47
• The Network Status submenu appears.
Use the Down/Up key to view the status of the various network parameters. The status of the following
parameters appear on your display as you scroll.
• MAC: This is the MAC Address of the phone.
• IP: The current IP Address assigned to the phone.
• MASK: The current Subnet mask assigned to the phone.
• GW: The current Gateway IP Address assigned to the phone.
• DNS: The Domain Name Server address assigned to the phone.
• S. ADD: The IP Address or Dynamic DNS Domain Name of the Ethernet Port of ETERNITY.
•S. PORT: The SPARSH Port of the Ethernet Port of ETERNITY.
• DOMAIN: The Domain Name assigned to the phone.
• 802.1x Authentication: The 802.1x authentication status is displayed—Success, Failure,
Authenticating or Disabled.
• FIRM: The version of the current Firmware of the phone.
• UBOOT: The UBOOT release date.
• KERNEL: The KERNEL release date.
Connecting SPARSH VP310 as Extended SIP Extension
You are recommended to complete the following steps before connecting the Extended IP Phone to the ETERNITY
NENX:
• Decide the location of the Extended IP Phone—within the same network or outside—according to your
installation scenario.
• Log into the web-browser Jeeves. Read the topic “System Configuration using the Web-based GUI”.
• Configure DHCP Server on the “Network Parameters” page under Basic Settings of Jeeves.
If you want to use the DHCP Server on your LAN for assigning IP Address to the Extended IP Phone,
select DHCP option 224 and Data Type as ‘String’ and program the Ethernet Port IP Address /Domain
Name and SPARSH Port in the format “Ethernet IP Address: SPARSH Port” in your LAN DHCP Server.

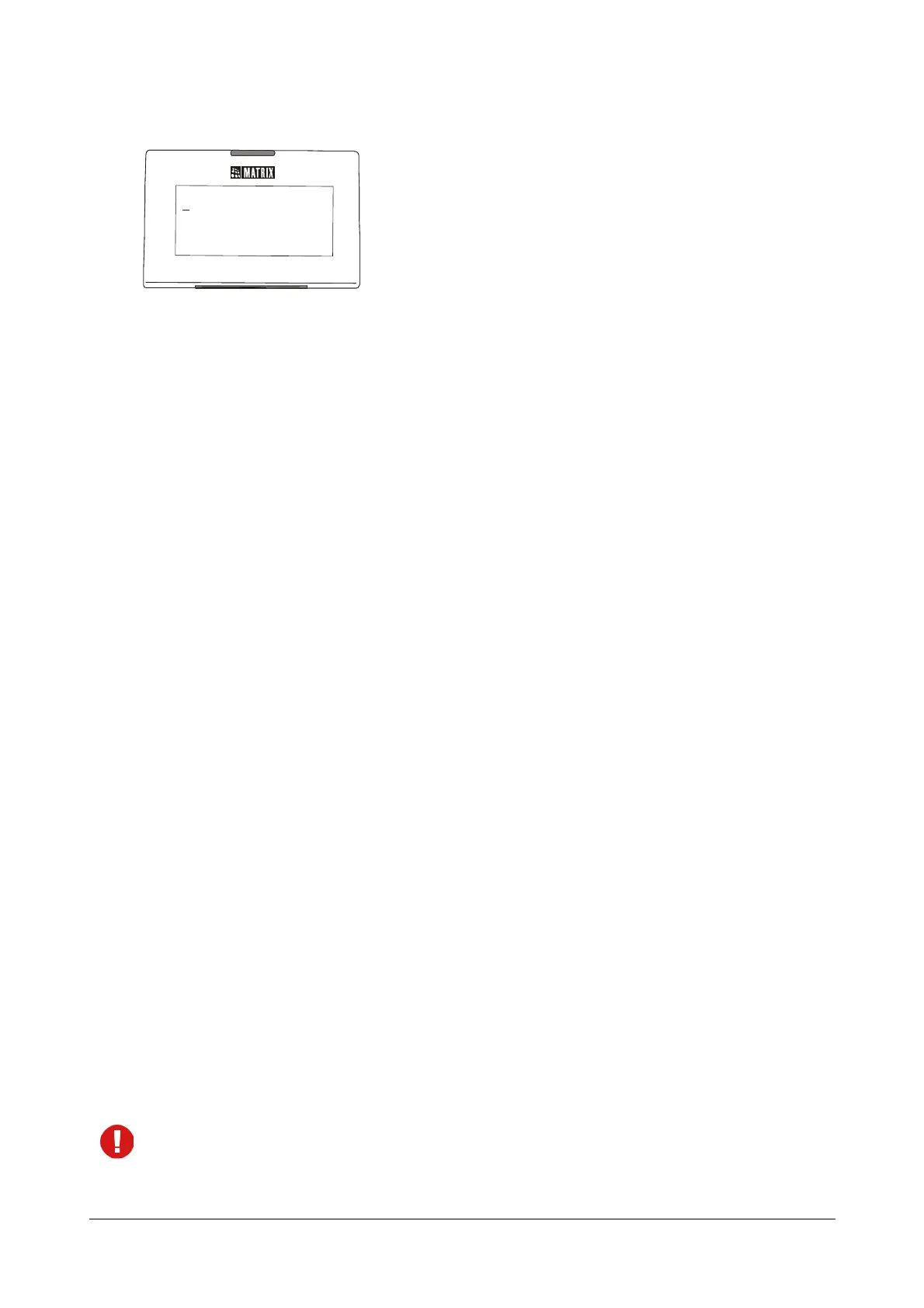

NET WORK STATUS
MAC: 00:1b:09:00:9a:a7
IP: 192.168.201.205
MASK: 255.255.255.0
G W: 192.168.201.3
D N S :
