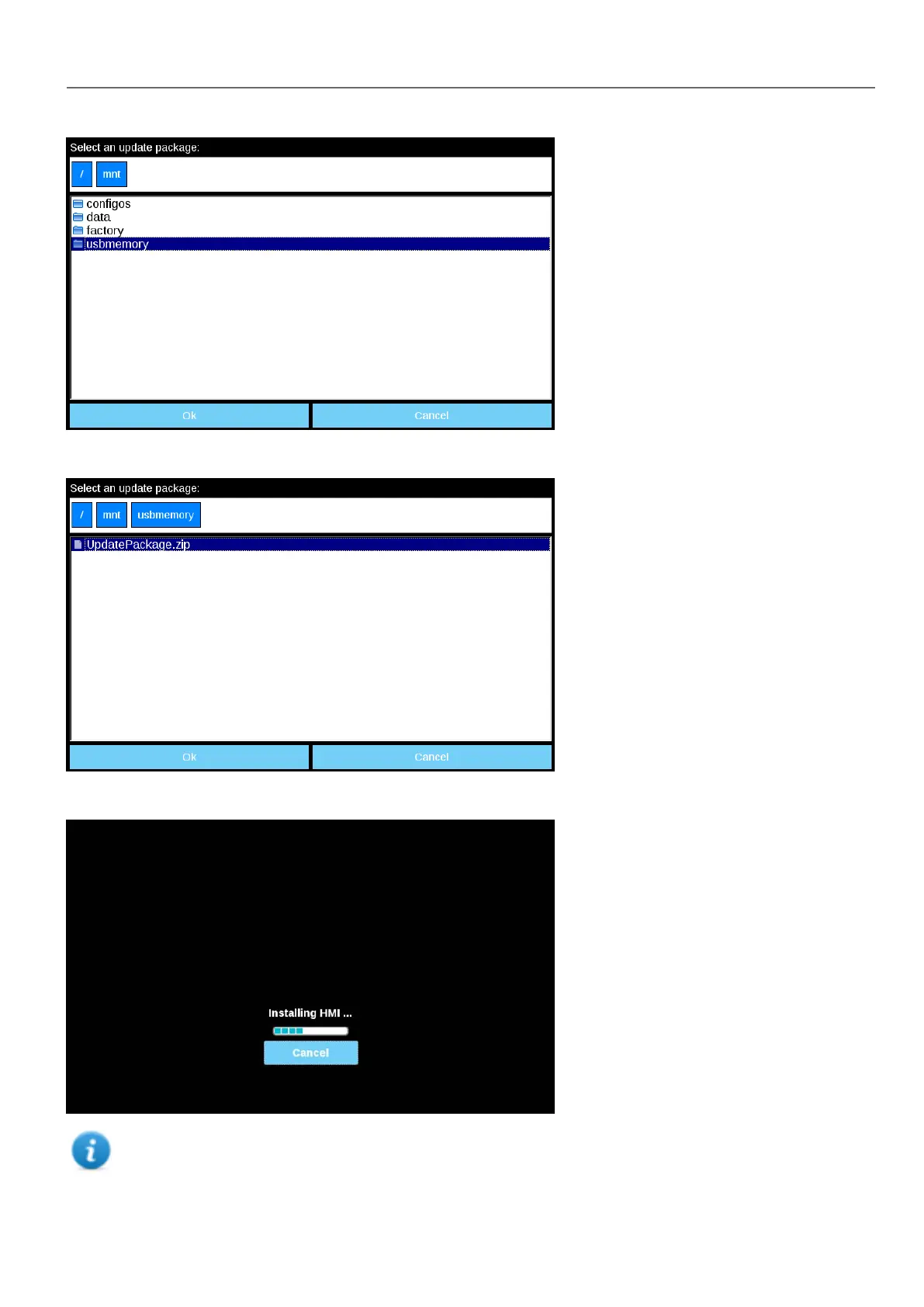

5. Select “UpdatePackage.zip” and confirm with [Ok]

6. The runtime installation begin

Note: File systems supported are FAT16/32 and Linux Ext2, Ext3 and Ext4.

389
