12.1 iTN2100-CES-16E1T1-BL
12.1.1 Appearance and functions

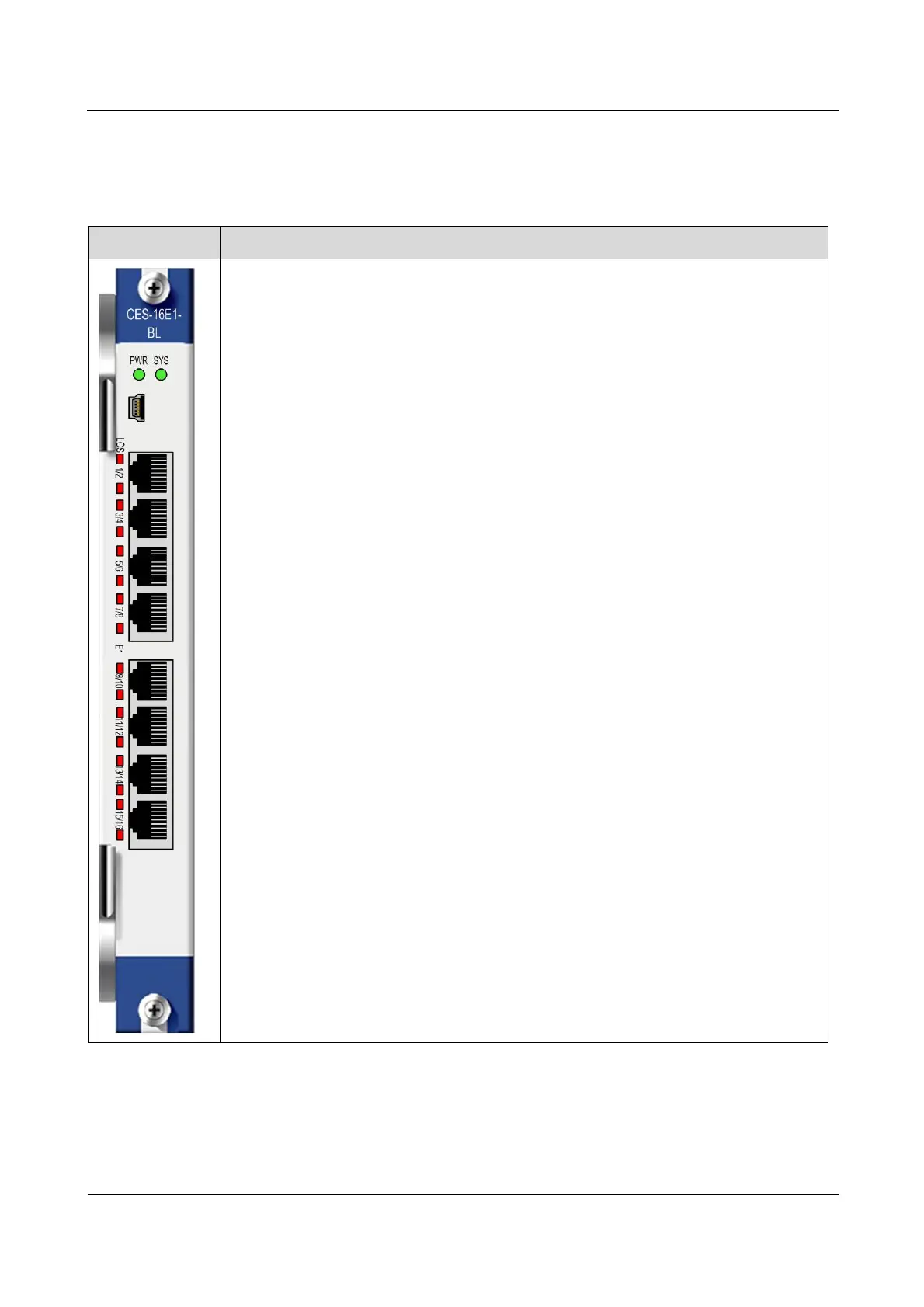

Appearance
Function
The iTN2100-CES-16E1T1-BL is a TDMoP card used by the iTN2100.

Providing 8 RJ45 interfaces and provide up to 16-way E1 services.

Support E1 framed, unframed, and multiframed modes.

Support E1 external loopback, E1 internal loopback, E1 bidirectional loopback, and no-
loopback.

Provide up to 64 bundles.

Support SAToP and CESoPSN encapsulation protocols.

Support enabling/disabling PW Real-time Transport Protocol (RTP).

Support setting Jitter Buffer depth to 375us–16000us.

Support setting packet encapsulation tine to 125us–5000us.

Support clock recovery mechanism, including the self-adaptive clock, line recovery
clock, system clock, and exterior clock.

Support configuring AC alarm transparent transmission or termination.

Support hot swapping.
12.1.2 Slots
The iTN2100-CES-16E1T1-BL can be plugged into slots 1–5 and 8–12 on the iTN2100.
