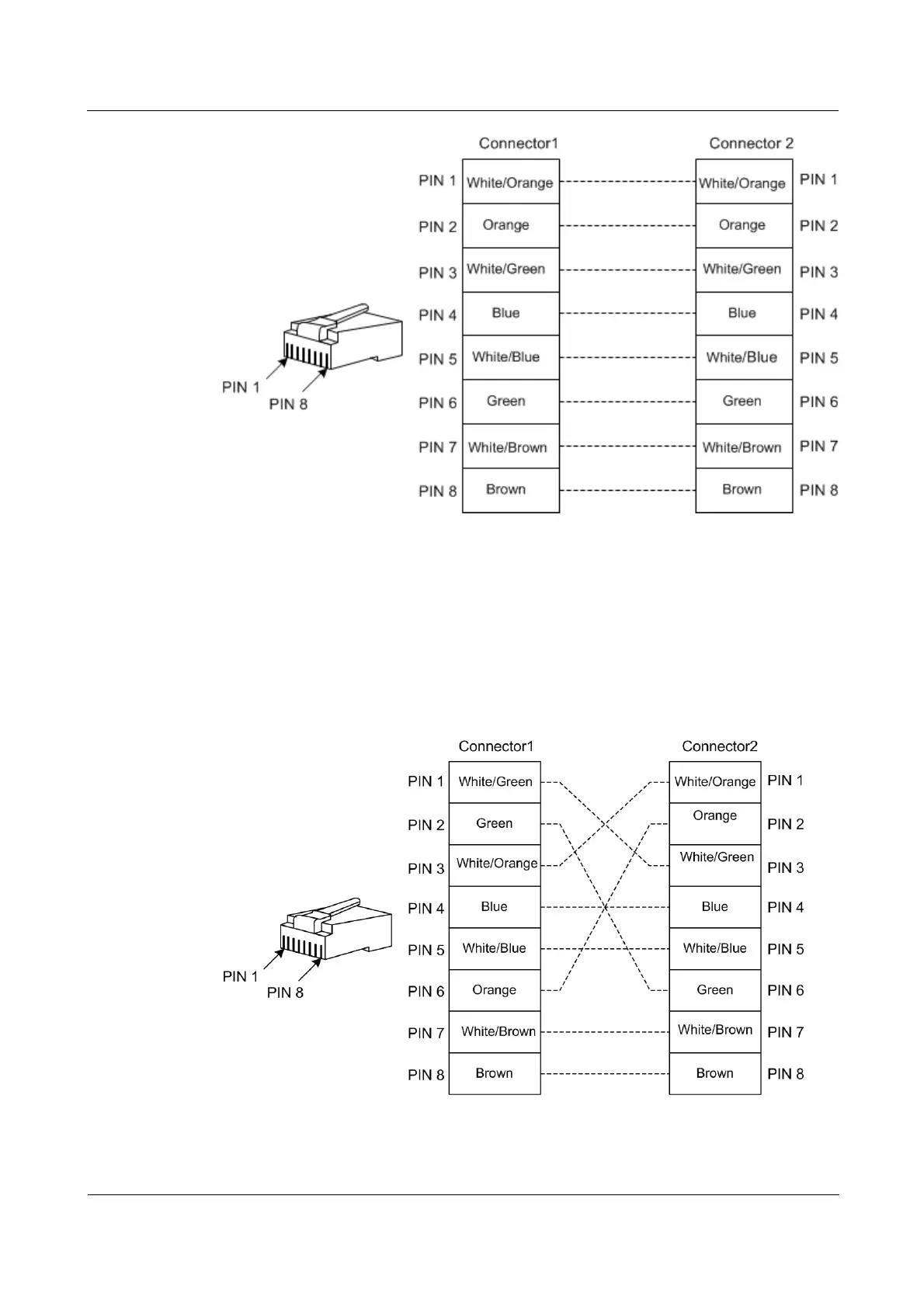

Figure 21-5 Line order of the straight-through cable
Crossover cable
The line order for 100 Mbit/s crossover cable is different from that of 1000 Mbit/s crossover
cable.
One RJ45 connector of the 100 Mbit/s crossover cable follows EIA/TIA568A standard; the
other RJ45 connector follows EIA/TIA568B standard line order. Figure 21-6 shows the line
order of the 100 Mbit/s crossover cable.
Figure 21-6 Line order of the 100 Mbit/s crossover cable
