iTN2100 (P100R002) Hardware Description
21 Cables
Raisecom Technology Co., Ltd.
264

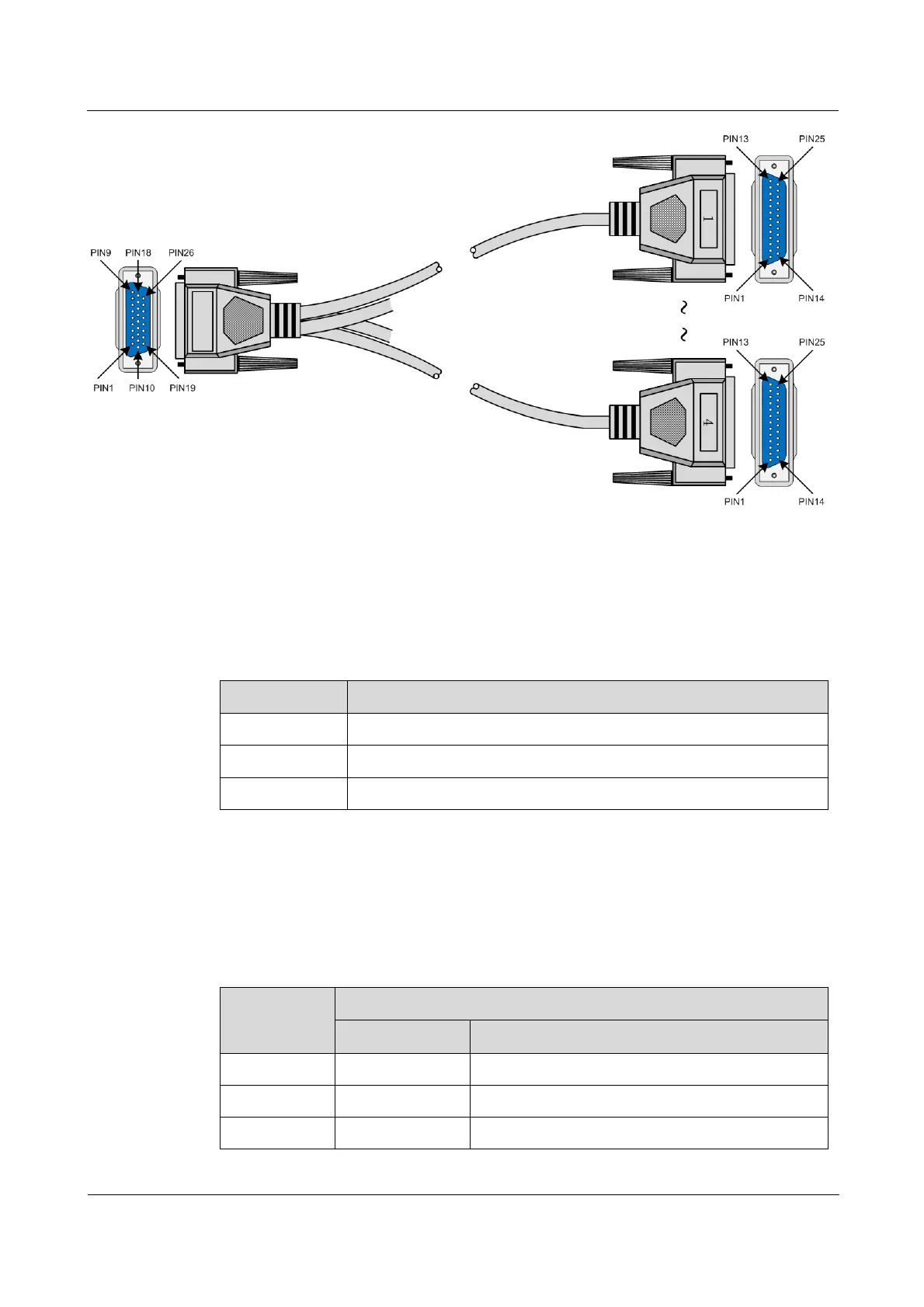

Figure 21-23 CBL-V24-HDB26M/4DB25M cable
Specifications
Table 21-24 lists specifications of the CBL-V24-HDB26M/4DB25M cable.
Table 21-24 Specifications of the CBL-V24-HDB26M/4DB25M cable
Parameter
Description
Name
CBL-V24-HDB26M/4DB25M
Connector
HDB26 male connector, or DB25 female connector
Type
9-core data cable
21.11.4 PIN
There are two HDB26 female interfaces on the OPCOM3500E-8V24. Each interface
transmits four ways of V.24 data. You can make cables according to Table 21-25.
Table 21-25 PIN of the HDB26 interface on the OPCOM3500E-8V24
PIN
Defined output
Mark
Description
1
TXD_4
Data egress interface 4
2
TXC_4
Clock egress interface 4
3
TXD_3
Data egress interface 3
