iTN2100 (P100R002) Hardware Description
21 Cables
Raisecom Technology Co., Ltd.
259

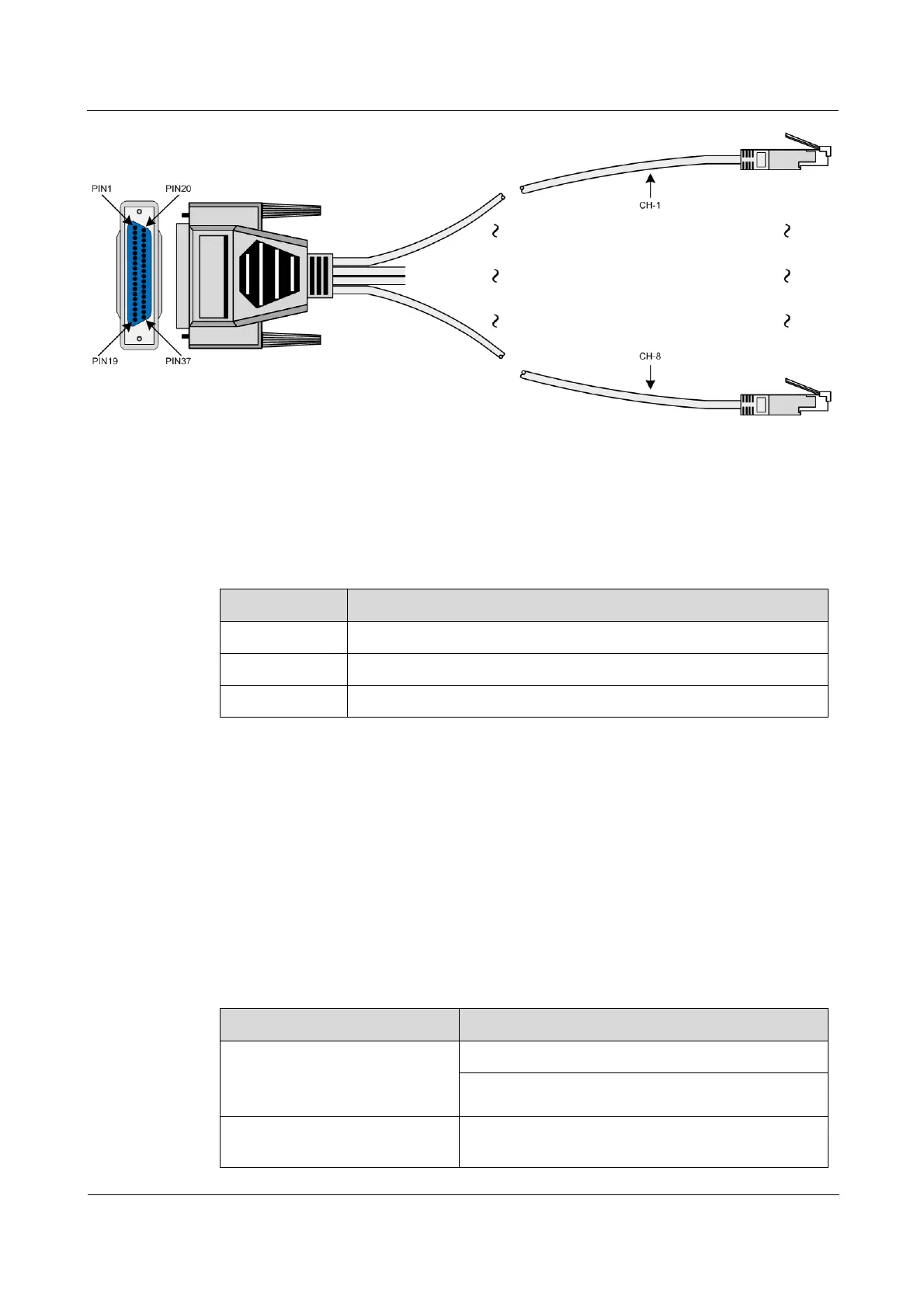

Figure 21-18 CBL-E1-DB37F/8RJ45 cable
Specifications
Table 21-17 lists specifications of the CBL-E1-DB37F/8RJ45 cable.
Table 21-17 Specifications of the CBL-E1-DB37F/8RJ45
Parameter
Description
Name
CBL-E1-DB37F/8RJ45
Connector
DB37 female connector, or RJ45 connector
Type
2P unshielded Category 5 cable
21.10 E1-SCSI100 cables
21.10.1 Introduction
The E1-SCSI100 cable is used to connect the SCSI female connector (100 pin) of the
iTN2100 and other devices to transmit E1 services.
Table 21-18 lists relations between the E1-SCSI100 cable and the card on the iTN2100.
Table 21-18 Relations between the E1-SCSI100 cable and the card on the iTN2100
Card
Cable
OPCOM3500E-32E1
OPCOM3500E-32E1-BL
(unbalanced interface)
CBL-E1-SCSI100M (40)/32BNCF
CBL-E1-SCSI100M (40)/32BNCM
OPCOM3500E-32E1-BL
(balanced interface)
CBL-E1-SCSI100M (40)/16RJ45
