21.13.3 CBL-MUL-HDB26M(40)/NC
Appearance

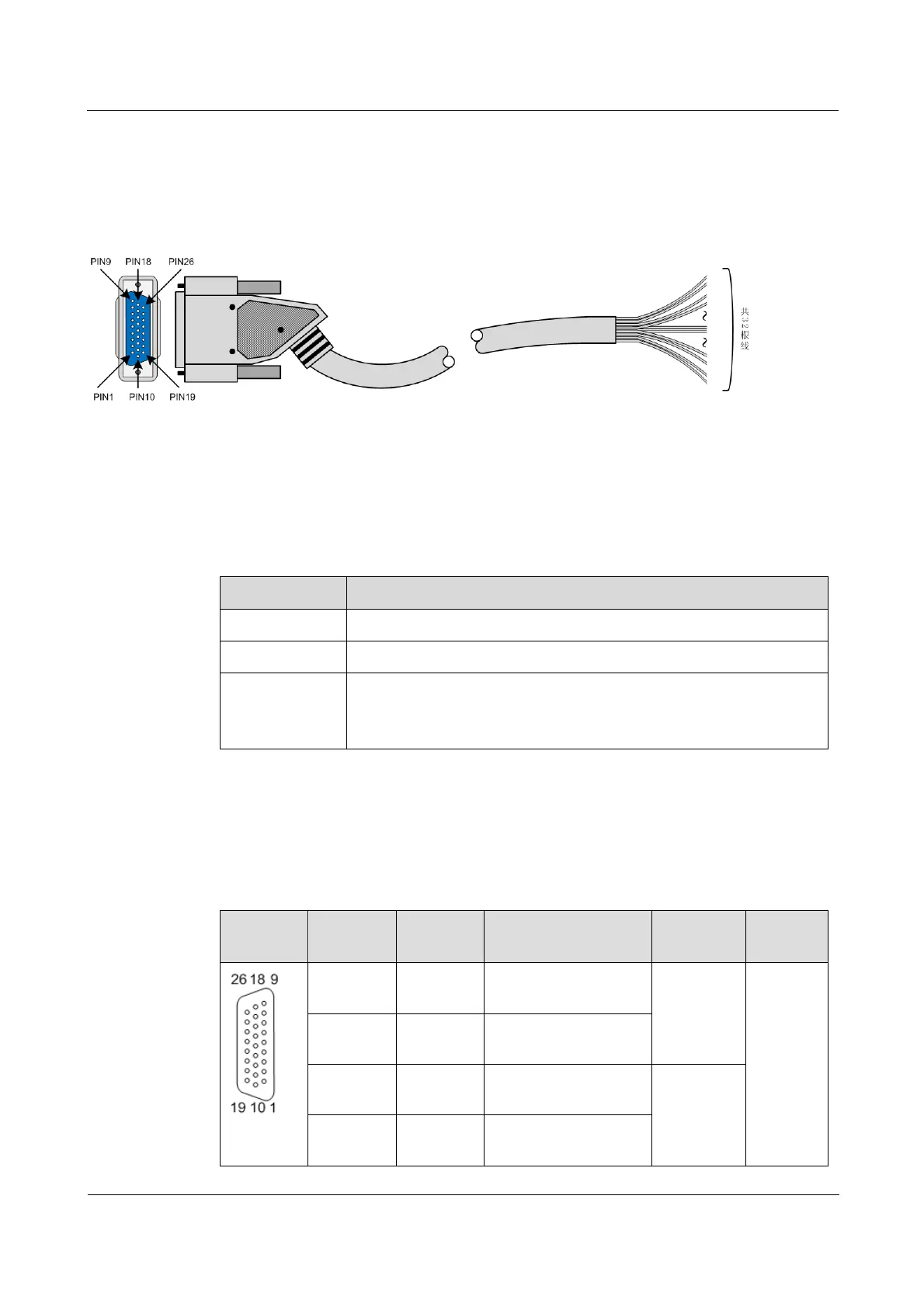

Figure 21-30 shows the CBL-MUL-HDB26M(40)/NC cable.
Figure 21-30 CBL-MUL-HDB26M(40)/NC cable
Specifications
Table 21-37 lists specifications of the CBL-MUL-HDB26M(40)/NC cable.
Table 21-37 Specifications of the CBL-MUL-HDB26M(40)/NC cable
Parameter
Description
Name
CBL-MUL-HDB26M(40)/NC
Connector
HDB26 male connector
Description

(Side) HDB26 male connector to 4-way NC E&M cable. The cable
length can be customized: 2.5 m/5 m/10 m/15 m/25 m.

(Side) HDB26 male connector to 8-way NC E&M cable. The cable
length can be customized: 2.5 m/5 m/10 m/15 m/25 m.
Color modes
Table 21-38 lists color modes of the CBL-MUL-HDB26M(40)/NC cable
Table 21-38 Color modes of the CBL-MUL-HDB26M(40)/NC cable
HDB26M
HDB26M
PIN
Line color
Secondary
color
Master
color
7
CH-01A
White background and
blue ring
Blue
White
17
CH-01B
Blue background and
white ring
8
CH-02A
White background and
orange ring
Orange
18
CH-02B
Orange background
and white ring
