21.13.2 CBL-MUL-HDB26M/NC
Appearance

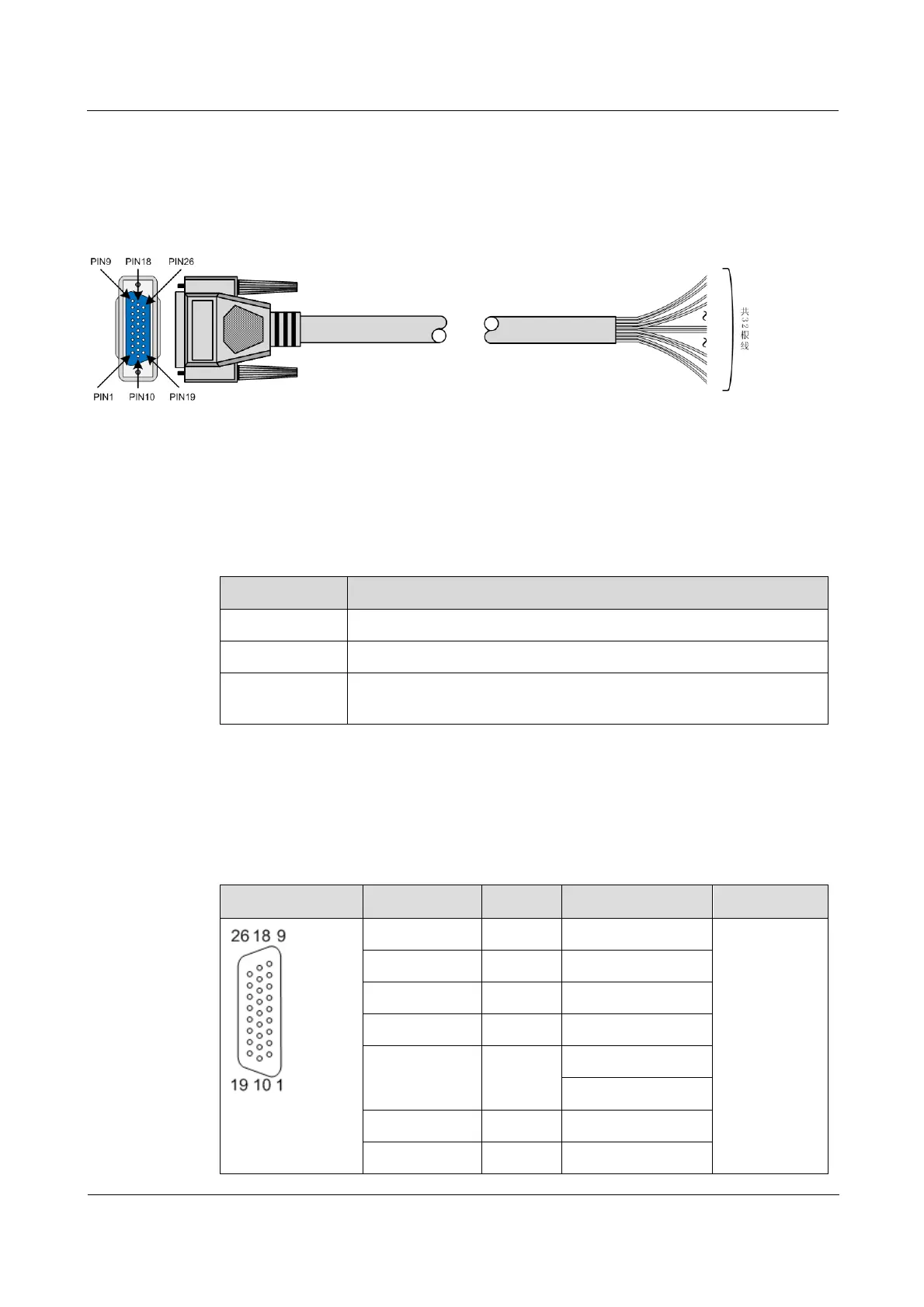

Figure 21-29 shows the CBL-MUL-HDB26M/NC cable.
Figure 21-29 CBL-MUL-HDB26M/NC cable
Specifications
Table 21-35 lists specifications of the CBL-MUL-HDB26M/NC cable.
Table 21-35 Specifications of the CBL-MUL-HDB26M/NC cable
Parameter
Description
Name
CBL-MUL-HDB26M/NC
Connector
HDB26 male connector
Description
HDB26 male connector to 4-way NC E&M cable. The cable length
can be customized: 2.5 m/5 m/10 m/15 m/25 m.
Color modes
Table 21-36 lists color modes of the CBL-MUL-HDB26M/NC cable.
Table 21-36 Color modes of the CBL-MUL-HDB26M/NC cable
HDB26F
HDB26M
PIN
Line color
Pair color
1
TXD-8
Blue/White
White
11
RXD-8
White/Blue
2
TXD-7
Orange/White
12
RXD-7
White/Orange
20
GND7
Brown/White
White/Brown
3
TXD-6
Green/White
13
RXD-6
White/Green
