Raisecom iTN2100 User Manual

Raisecom
iTN2100 (P100R002) Hardware Description
15 PDH and RCMS cards
Raisecom Technology Co., Ltd.
149
15.4 OPCOM3500E-P240FE

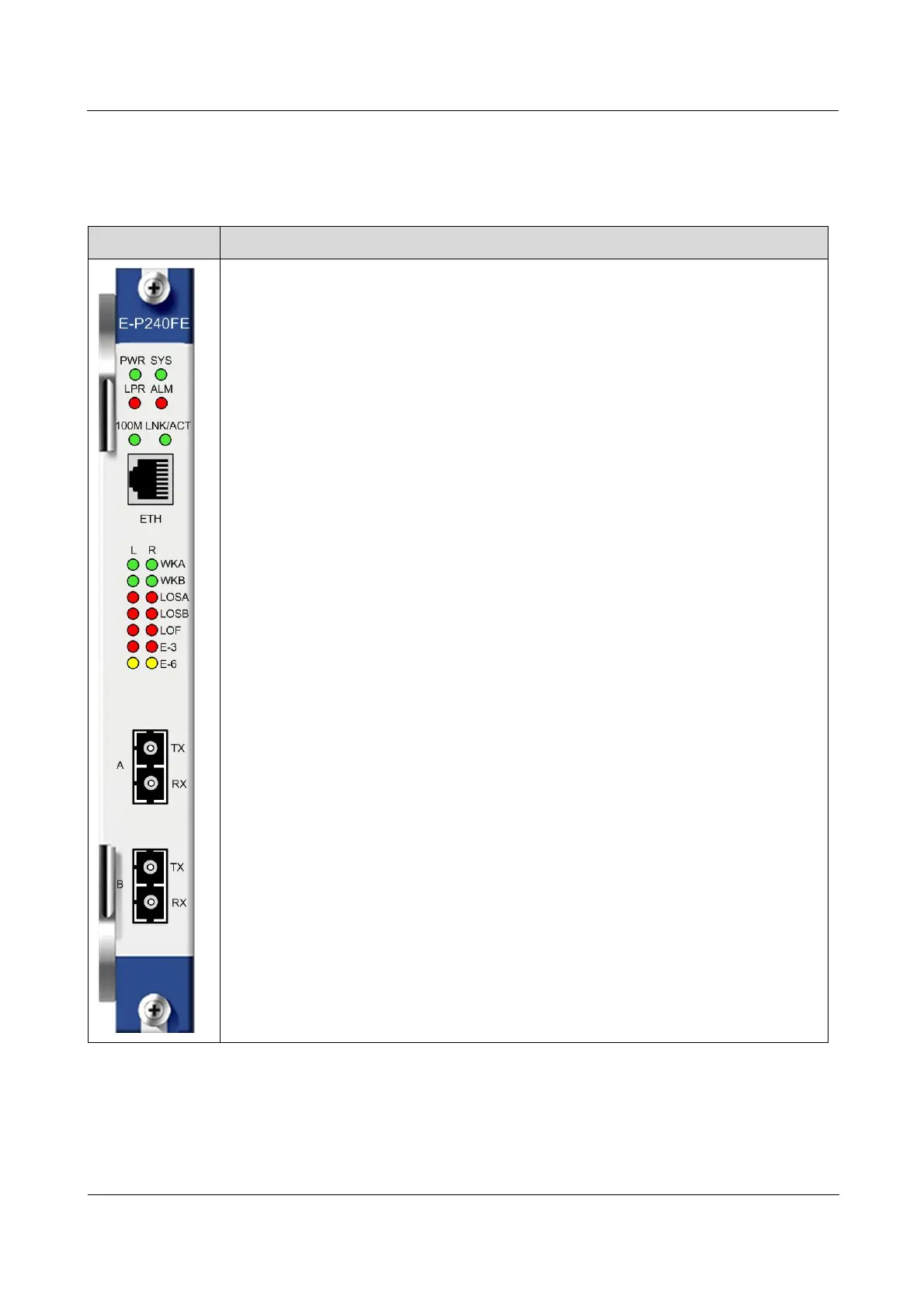

15.4.1 Appearance and functions
Appearance
Function
The OPCOM3500E-P240FE is a tributary service card on the iTN2100.

Cooperate with remote PDH optical transceivers to form point-to-point applications. It
demaps eight ways of E1 signals to the SDH transportation network, and outputs a way
of Ethernet services from the FE interface on the front panel.

The iTN2100 can be plugged into with multiple OPCOM3500E-P240FE. Each
OPCOM3500E-P240FE is connected to a PDH optical transceiver.

Provide two PDH optical interfaces, implement 1+1 protection switchover for optical
interfaces upon LOS or LOS alarms. You can force one interface with high priority.

Support hybrid multiplexing of eight ways of E1 signals and one way of 100 Mbit/s
Ethernet data.

Support complete alarms. Local and remote alarms can be displayed concurrently.

Support network management on the remote device RCMS2811.

Support local and remote loopback.

Support LPR alarms.

Support ALS.

Support online software upgrade for local and remote devices.

Support hot swapping.
15.4.2 Slots
The OPCOM3500E-P240FE can be plugged into slots 1–5 and 8–12 on the iTN2100.
