13.9 iTN2100-EOT-GESTM4
13.9.1 Appearance and functions

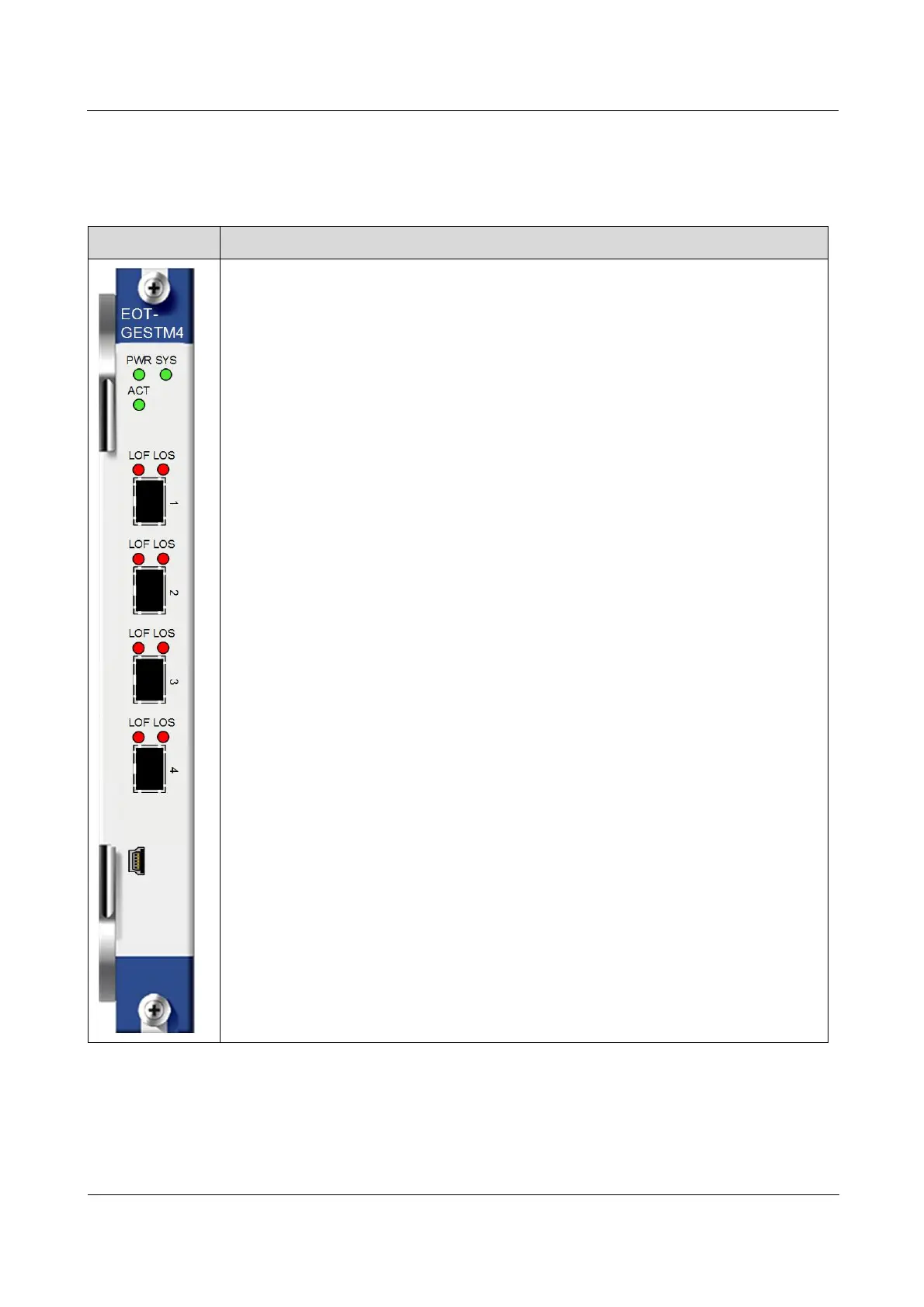

Appearance
Function
The iTN2100-EOT-GESTM4 is EOPOS and EOS protocol converter card on the
iTN2100.

Support EOPOS and EOS. You can configure parameters for each channel
independently.

You can configure four STM interfaces on the front panel to STM1 or the first STM
interface to STM4 (in this case, other interfaces becomes invalid).

EOPOS encapsulation supports GFP.

EOS channels support N×VC12, N×VC3, and N×VC4.

Support 252 VCGs at most, with members as below:

EOP supports 16×E1.

EOS supports 64×VC12, 12×VC3, and 4×VC4.

Support flow classification based on VLAN tags. The maximum number of flows is 4k.

Support Ethernet flow control.

Support QinQ.

Support DDM of SFP modules.

Support SDH overhead processing, statistics of alarms and performance.

Support configurable SDH clock source: local clock, line clock, system TDM clock, or
system Ethernet clock.

Support SDH clock drifting, with jitter complying with ITU-T standards.

Support VC4/VC3/VC12 1+1 channel protection of SDH on the card.

Support Automatical Switchover Protection (ASP) of the two switching cards on the
iTN2100.

Support inband remote management of EOP and EOS devices.

Support hot swapping.

Support SDH interface protection between 2 cards. However, the 2 cards must be
inserted into specified slots : slots 2 and 4 or slots 3 and 5.

Support accessing the SDH network through the aggregation card. However, the card
must be inserted into slot 2 or slot 4 of the iTN2100.
13.9.2 Slots
The iTN2100-EOT-GESTM4 can be plugged into slots 1–5, 8, 11, and 12 on the iTN2100.
