21.4.2 Appearance
The DC power supply cable consists of DC connectors and co-axial cable, as listed in Figure
21-9.

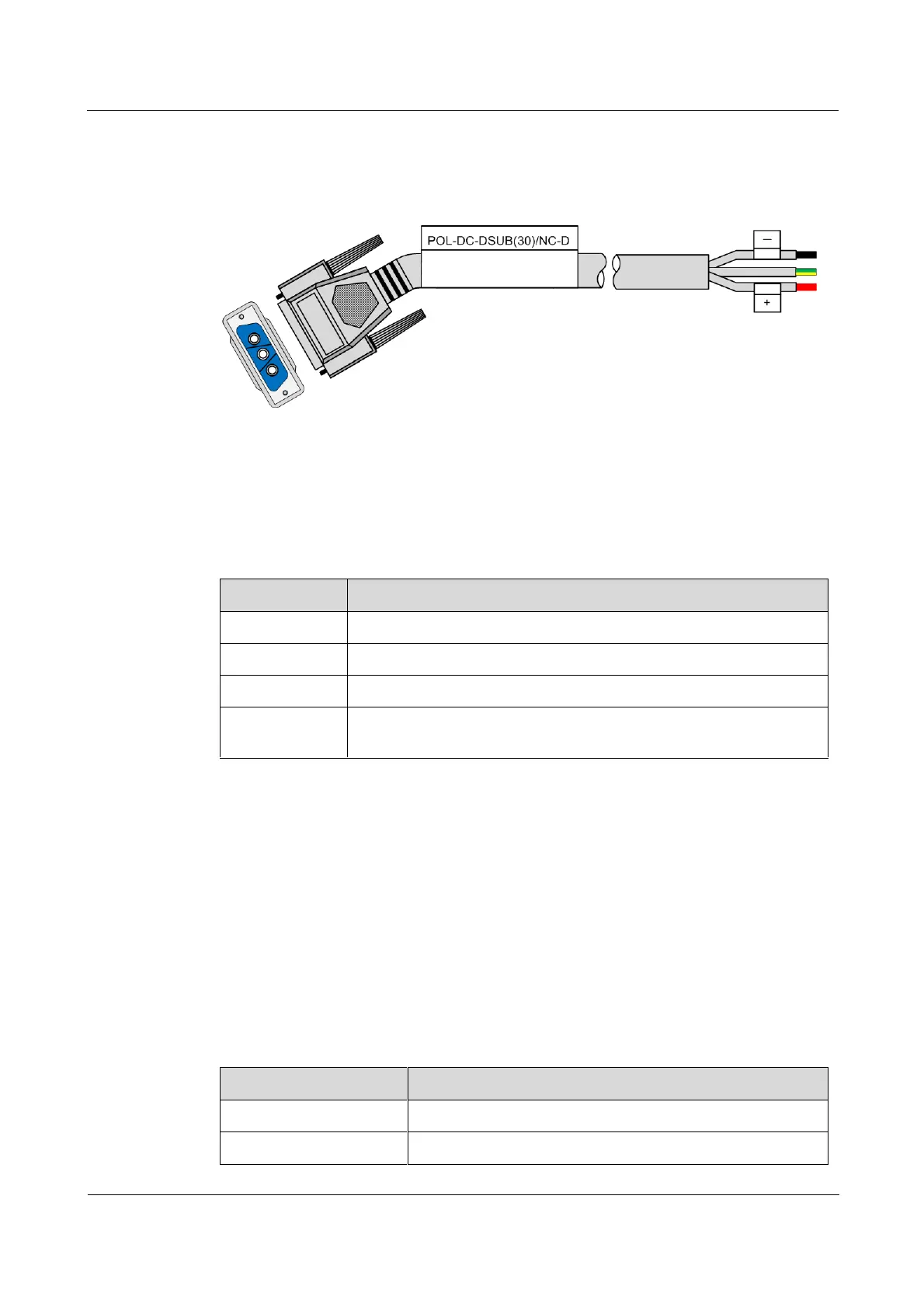

Figure 21-9 DC power cable
21.4.3 Specifications
Table 21-5 lists specifications of the DC power cable.
Table 21-5 Specifications of the DC power cable
Parameter
Description
Name
POL-DC-DSUB(30)/NC-D
Connector
Large current connector
Type
Copper core multi-strand power cable 14 AWG (2.0 mm
2
)
Length
Length is customized. For example, if the customer requires 2 m
cables, they are named POL-DC-DSUB(30)/NC-2m.
21.5 AC power cables
21.5.1 Introduction
The AC power cable transmits 220 V AC power to the terminal block of the iTN201, and
supplies power for the whole device.
The iTN201 uses different AC power supply cables in different countries or regions, as lists in
Table 21-6.
Table 21-6 AC power supply cable options
Regional standard
Cable
Europe
French mode pins-10A/250V-1.5m/RoHS
America
American mode-3-pin-10A/250V-1.5m/RoHS
