iTN2100 (P100R002) Hardware Description
21 Cables
Raisecom Technology Co., Ltd.
262

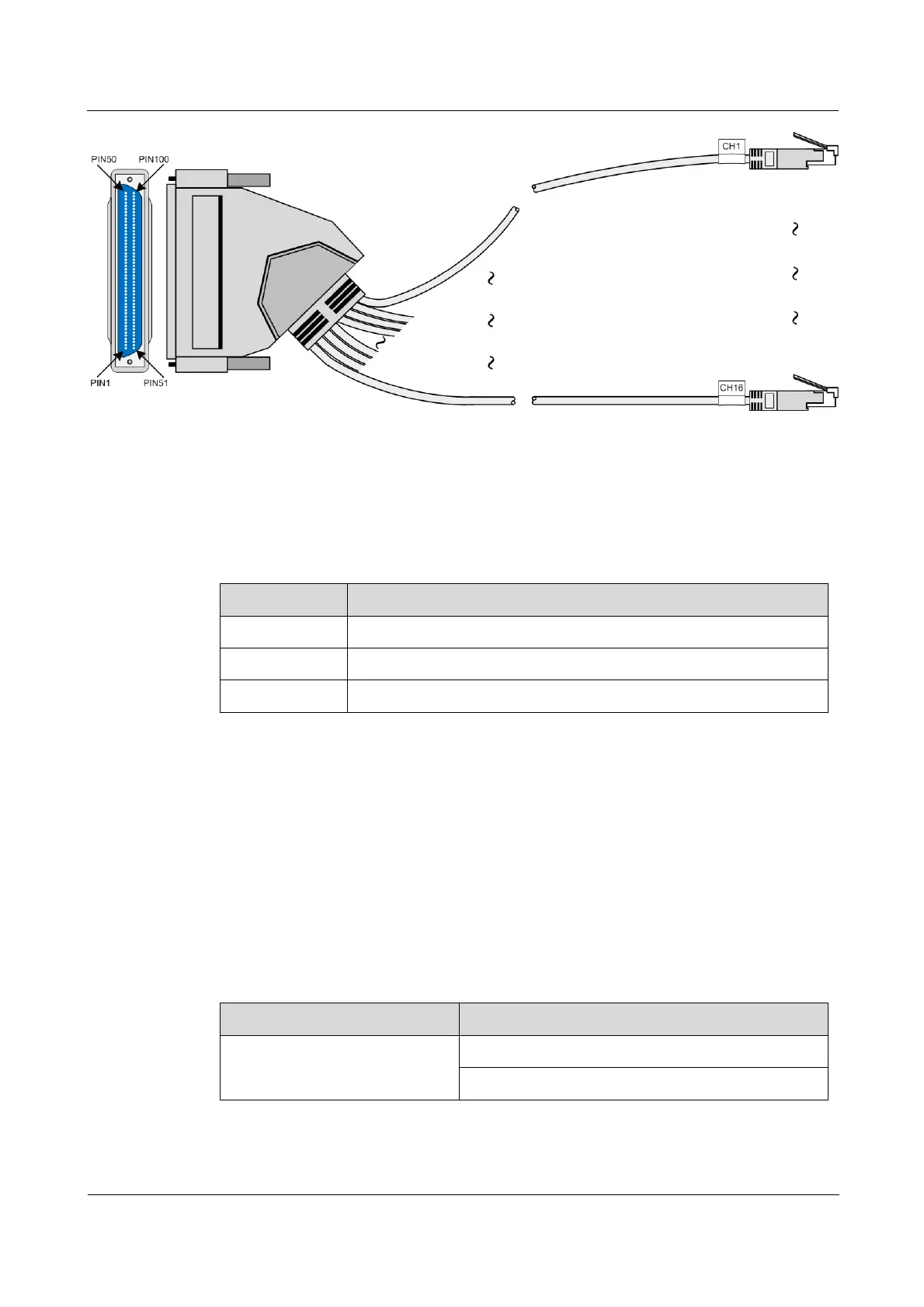

Figure 21-21 CBL-E1-SCSI100M(40)/16RJ45 cable
Specifications
Table 21-21 lists specifications of the CBL-E1-SCSI100M(40)/16RJ45 cable.
Table 21-21 Specifications of the CBL-E1-SCSI100M(40)/16RJ45 cable
Parameter
Description
Name
CBL-E1-SCSI100M (40)/16RJ45
Connector
SCSI100P male connector, or RJ45 connector
Type
2P unshielded twisted pair
21.11 V24-HDB26 cables
21.11.1 Introduction
The V24-HDB26 cable is used to connect the HDB26 female connector of the iTN2100 and
other device to transmit V24 services.
Table 21-22 lists relations between the V24-HDB26 cable and the card on the iTN2100.
Table 21-22 Relations between the V24-HDB26 cable and the card on the iTN2100
Card
Cable
OPCOM3500E-8V24
CBL-V24-HDB26M/4DB25F
CBL-V24-HDB26M/4DB25M
