iTN2100 (P100R002) Hardware Description
21 Cables
Raisecom Technology Co., Ltd.
269

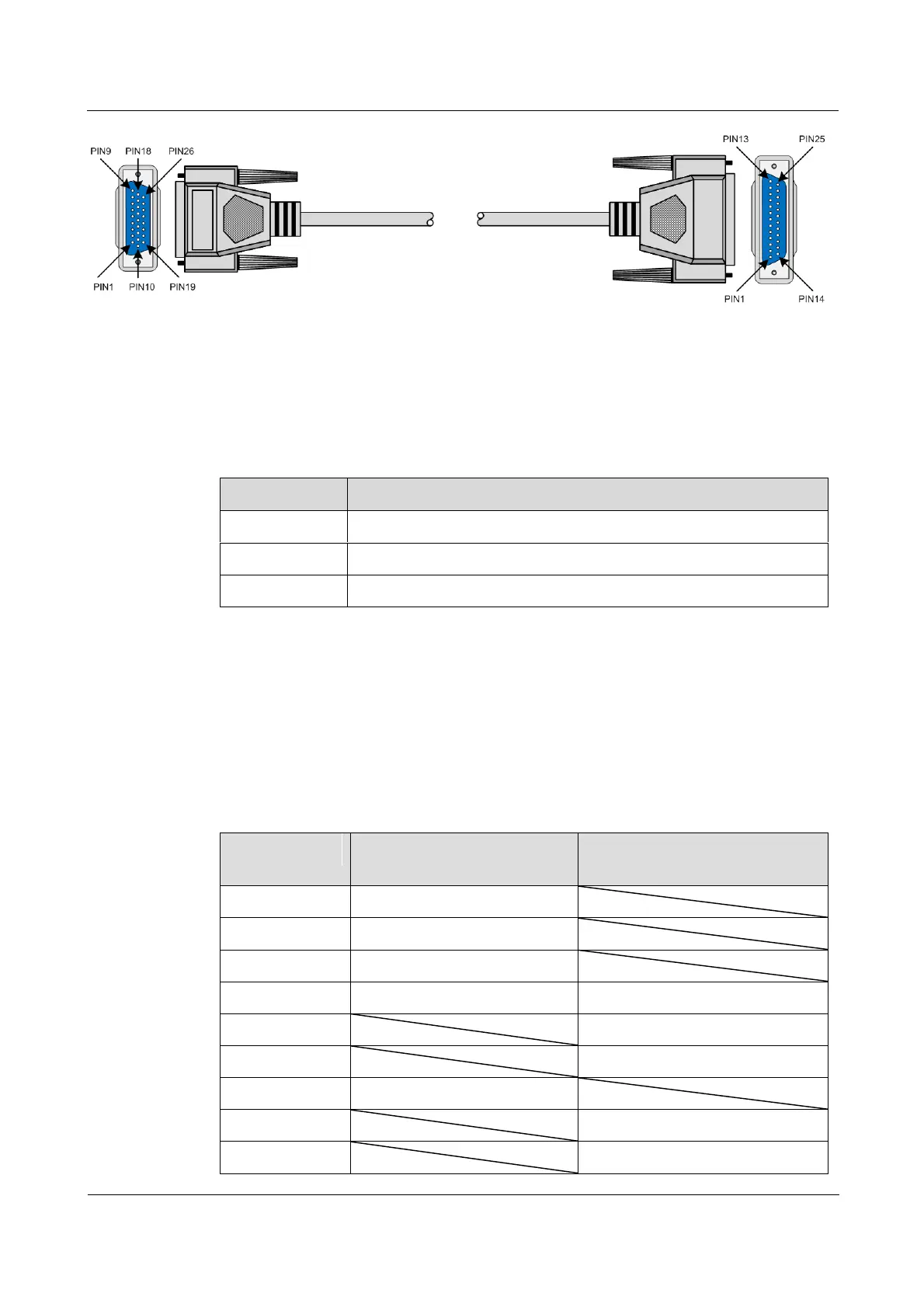

Figure 21-28 CBL-V35-HDB26M/DB25M cable
Specifications
Table 21-31 lists specifications of the CBL-V35-HDB26M/DB25M cable.
Table 21-31 Specifications of the CBL-V35-HDB26M/DB25M cable
Parameter
Description
Name
CBL-V35-HDB26M/DB25M
Connector
HDB26 male connector, or DB25 male connector
Type
9.5P+1+B+AL cable
21.12.7 PIN
OPCOM3500E-8V35
There are four HDB26 female interfaces on the OPCOM3500E-8V35. Each interface
transmits two ways of V.35 data. You can make cables according to Table 21-32.
Table 21-32 PIN of the HDB26 interface on the OPCOM3500E-8V35
PIN
Defined output for way 1 of
V.35 data
Defined output for way 2 of
V.35 data
1
PGND
2
TD (A)
3
RD (A)
4
–
–
5
RD (A)
6
RD (B)
7
GND
8
RCP (A)
9
RCP (B)
