13 EOP cards
Raisecom Technology Co., Ltd.
93
13.4 OPCOM3500E-EOP-FE16E1
13.4.1 Appearance and functions

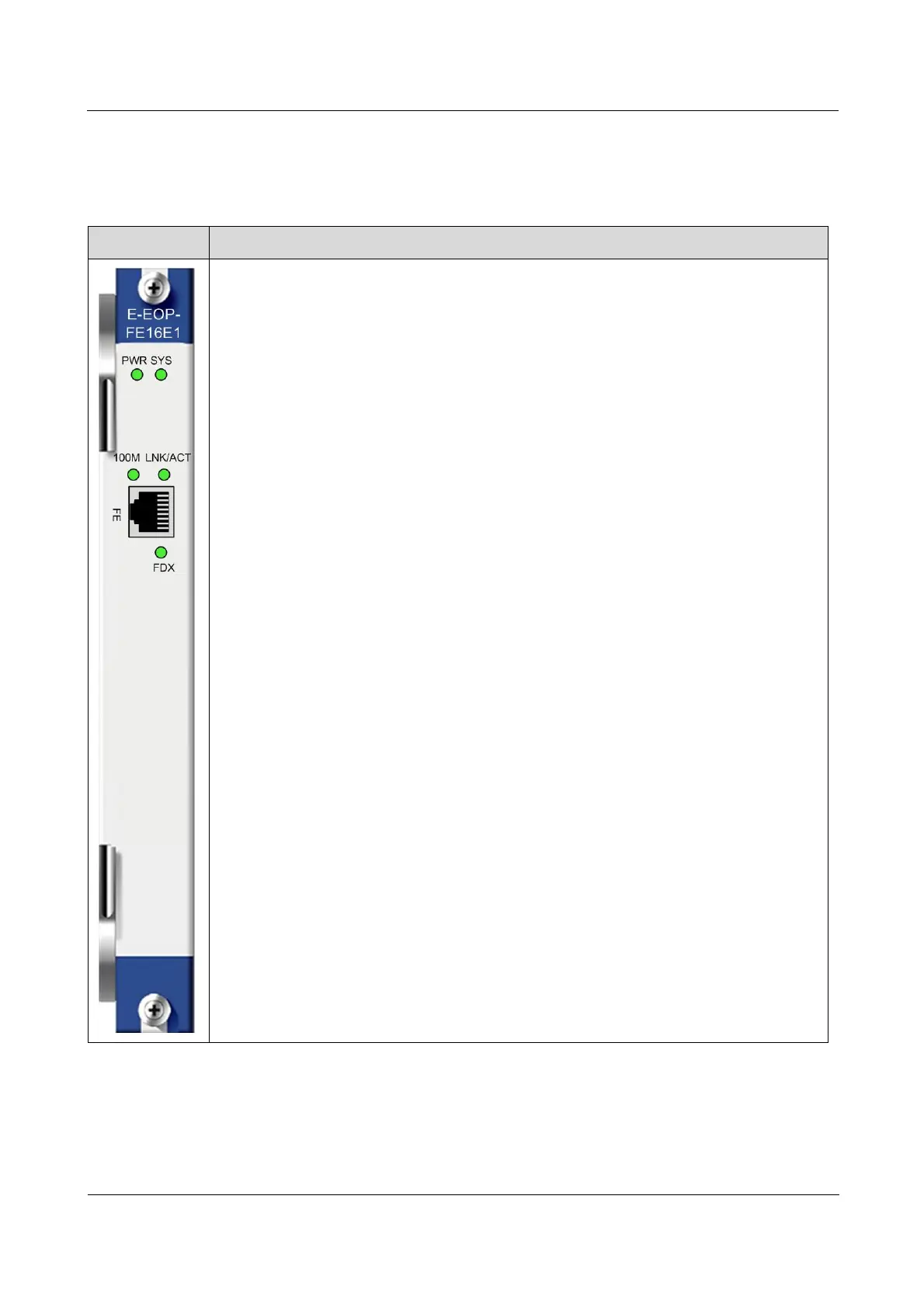

Appearance
Function
The OPCOM3500E-EOP-FE16E1 can abstract multiple EOP services from SDH signals
and then aggregate them to one-way Ethernet services. Finally, the one-way Ethernet
service can be output from the Ethernet electrical interface on the front panel or
transmitted to the switching card through the backplane.
Support 116 ways of E1 signals.
Support configuring aggregated one-way Ethernet service to be output from the Ethernet
electrical interface on the front panel or transmitted to the switching card through the
backplane.
Support storm control over broadcast, unknown multicast, and DLF packets.
Support link aggregation.
Support 802.1Q VLAN, 4K concurrent VLANs, and Double Tag (QinQ).
Support a maximum frame length of 1632 Bytes.
Support 802.3x flow control and back-pressure flow control.
Support 8K MAC addresses and 64 static MAC addresses.
Support enabling or disabling MAC address learning based on interface.
Support setting the aging time to 03825s.
Support interface-based rate limiting ranging from 62 Kbit/s to 100 Mbit/s.
Support transparently transmitting BPDU, LACP, and 802.1x management frames.
Support the following operations in E1 reverse multiplexing mode:
Support transmitting Ethernet frames to multiple E1 signals in a frame-interleaving way.
Support automatic recognition of E1 line order.
Support the maximum relative delay ±16ms for E1 links.
Support automatic construction or destruction of E1 links.
Support the framed mode. It supports FAS+CRC4 PCM31 mode and CRC self-adaption.
You can configure them.
Support E1 loopback detection and BERT.
Support hot swapping.
13.4.2 Slots
The OPCOM3500E-EOP-FE16E1 can be plugged into slots 15 and 812 on the iTN2100.
